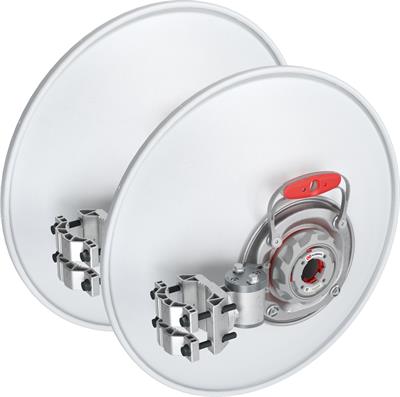

RF elements UltraDish UD29WB-2PACK, Directional dish antenna, 5+6GHz, 2-pack
Your price incl. VAT (20.0%)
470.81 EUR / 920.82 BGN
Ordered for stock
Planned Delivery Date by Courier to you 12-08-2026
You have a choice of 2 variants
8.79 EUR / 17.19 BGN excl. VAT
Product description
The RF elements UD29WB is a 5+6GHz directional parabolic antenna with a TwistPort connector, 29dBi gain, 7.6° symmetrical beamwidth, an integrated handle and low VSWR. The antenna operates in the 4900-7125MHz frequency range.
Download
Technical parameters
LAN ports
Polarization
VH
F/B ratio [dB]
40
Designed for mast diameter [mm]
40 up to 80
Wind load [km/h]
160
Protection class
IP65
Wireless frequency
5 + 6 GHz (dual band)
Elevation beam width (-6dB) [°]
7,6
Azimuth beam width (-6dB) [°]
7,6
Antenna type
Directional
RF connectors
TwistPort
Purpose
Outdoor
Antenna gain [dBi]
29
Material
ABS plastic, Aluminum, Stainless steel
Operating temperature [°C]
-35 up to 60
Weight [kg]
4,2
Width [mm]
618
Height [mm]
618
Depth [mm]
189
