TP-Link Archer NX505, 5G Wi-Fi 6 router
Your price incl. VAT (20.0%)
255.10 EUR / 498.92 BGN
❌ The item is not available. There is no option to order.
No confirmed delivery date
Product description

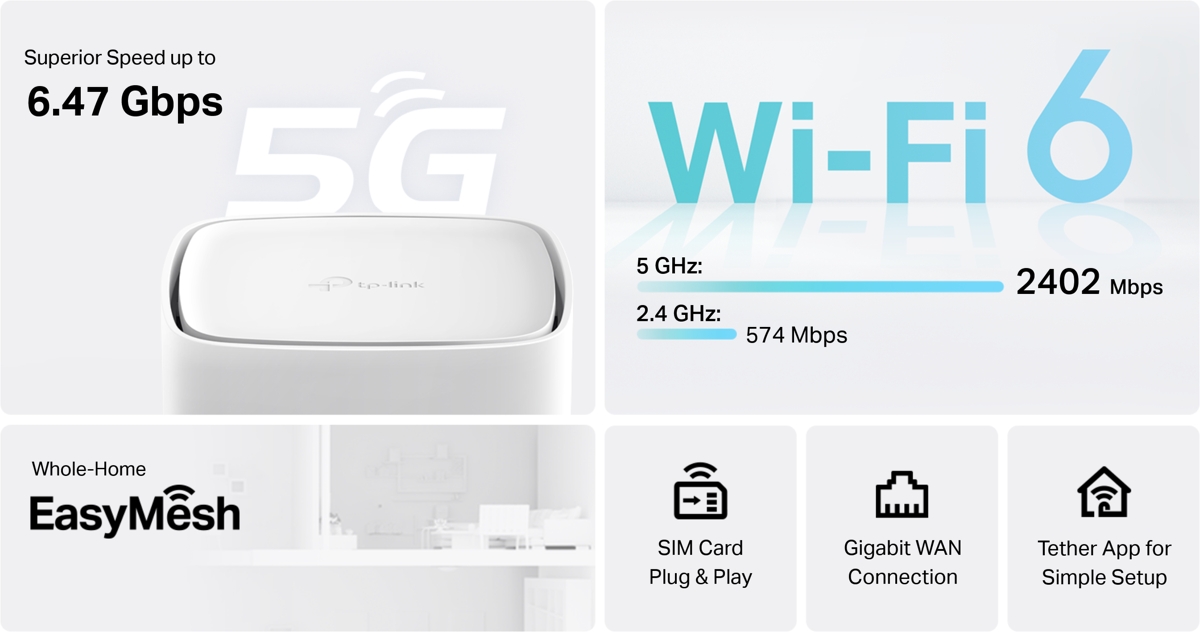

TP-Link Archer NX505 is a 5G dual-band Wi-Fi 6 router operating simultaneously on the 2.4GHz and 5GHz bands to deliver a maximum throughput of up to 3Gbps. It is equipped with (3) 1G ports (1x LAN/WAN, 2x LAN), (2) TS-9 female connectors for external 5G antennas, (1) nano SIM slot and WAN failover.
The router is equipped with a modem supporting 5G, 4G and 3G, with data rates of up to 6470Mbps downlink and 1250Mbps uplink, and is compatible with EasyMesh.
Package contents
- Device
- Patch cable
- Power adapter 12V/2.5A
Download
Technical parameters
LAN ports
Design
Desktop
Maximum modulation
1024 QAM
Operating mode
AP Router
Wireless frequency
2.4 + 5 GHz (dual band), 5G (GSM), LTE, 4G (GSM)
WiFi standards
802.11a, 802.11ac, 802.11ax, 802.11b/g, 802.11n
Transmission speed - 5GHz [Mb/s]
2402
Transmission speed - 2.4GHz [Mb/s]
574
Security
WPA, WPA2, WPA3
Type of antenna
Built-in, Detachable
Detachable antennas
2
RF connectors
(2) TS-9 female
Purpose
Indoor
LAN speed
(2) 10/100/1000Mbps + (1) 10/100/1000Mbps LAN/WAN
Gigabit LAN
Yes
Power via connector/terminal
12V / 2,5A
Buttons
Reset, WPS/WiFi
Operating temperature [°C]
0 up to 40
Width [mm]
99
Height [mm]
190
Depth [mm]
99
SIM slot
Yes
IPv6 support
Yes
Default IP address
192.168.1.1
Default login and password
Is set by the user at the first startup
