Teltonika PR1DCA70, Outdoor 5G/Wi-Fi/GPS antenna
Your price incl. VAT (20.0%)
248.81 EUR / 486.63 BGN
Ordered for stock
Planned Delivery Date by Courier to you 09-09-2026
Product description

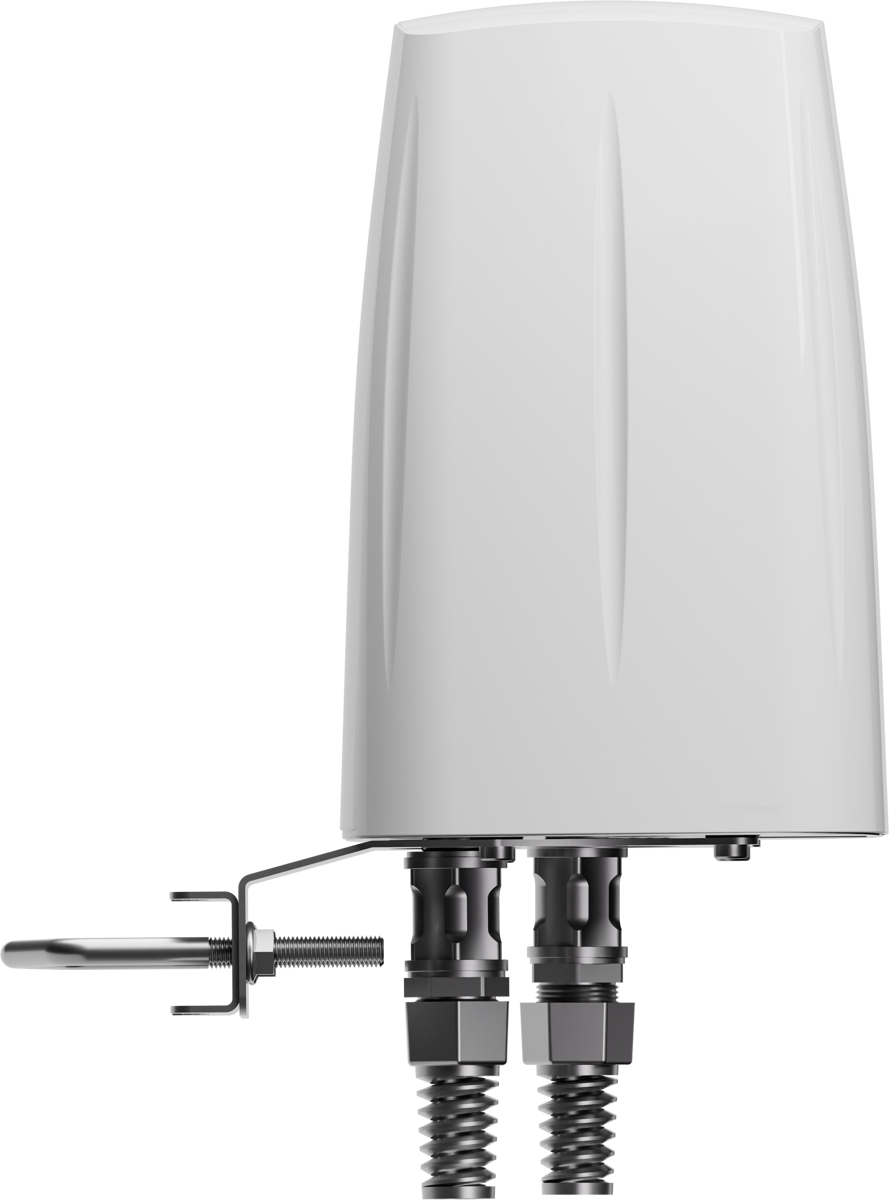

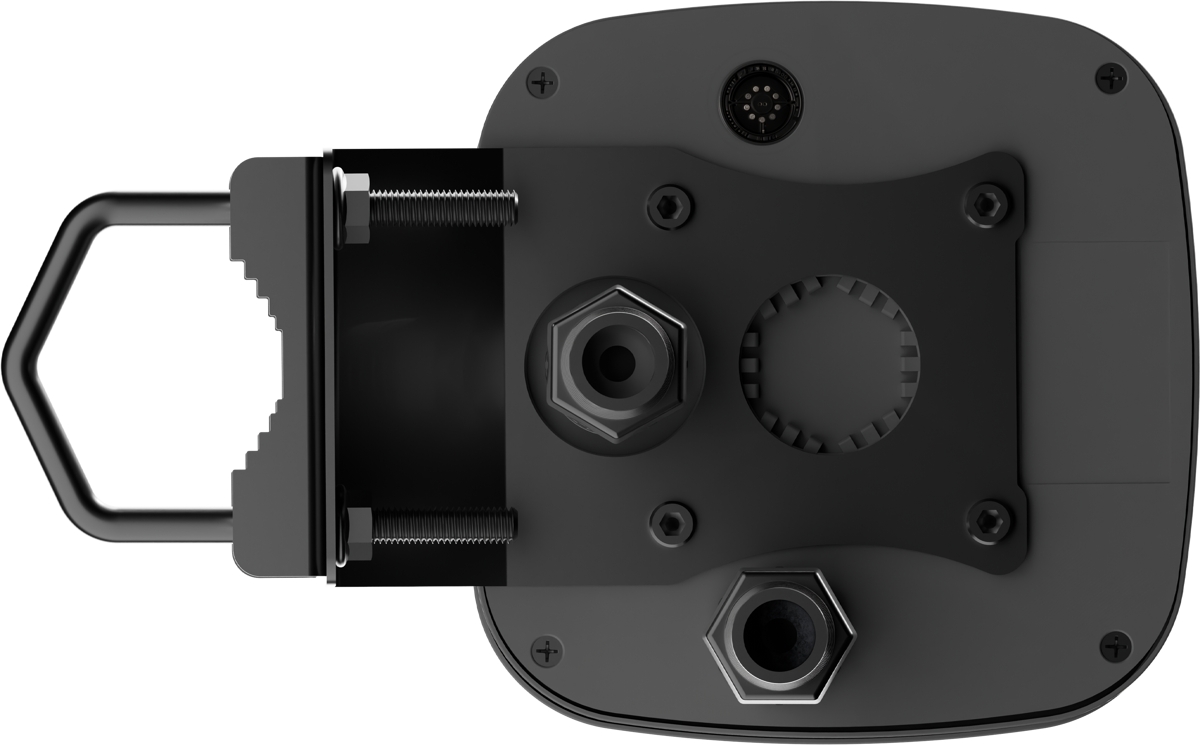

The Teltonika PR1DCA70 is an antenna combining 5G, Wi-Fi and GNSS with an integrated mounting bracket and grommets for (2) ethernet cables and power supply. It is equipped with (4) SMA male connectors for connection to a 4G/5G modem, (2) RP-SMA male connectors for 2.4GHz and 5GHz Wi-Fi and (1) SMA male connector for GNSS.
Key features
- 4G/5G frequencies: 617-960, 1700-2700, 3300-4700, 5200-6000 MHz
- 4G/5G antenna gain: 4.5 dBi
- Wi-Fi frequencies: 2400-2500, 4700-6000 MHz
- Wi-Fi antenna gain: 7.5 dBi
- GNSS frequencies: 1560-1610 MHz
- GNSS antenna gain: 3 dB
Download
Technical parameters
LAN ports
Protection class
IP67
RF cable length [m]
0,16
Wireless frequency
2.4 + 5 GHz (dual band), LTE, GNSS, 5G (GSM)
RF connectors
(5) SMA male, (2) RP-SMA male
Purpose
Outdoor
Antenna gain [dBi]
3, 7,5, 4,5
Operating temperature [°C]
-40 up to 75
Weight [g]
1430
Width [mm]
159
Depth [mm]
188
Height [mm]
342
