MikroTik L14G-2ax-BT5-LR8&EG800K, KNOT Gateway LR8
Your price incl. VAT (20.0%)
136.57 EUR / 267.11 BGN
Ordered for stock
Planned Delivery Date by Courier to you 11-11-2026
Manufacturer
Product number
L14G-2ax-BT5-LR8&EG800K
Product Code
RL031.158
Warranty
24 months
You have a choice of 2 variants
13.83 EUR / 27.05 BGN excl. VAT
8.72 EUR / 17.05 BGN excl. VAT
Product description

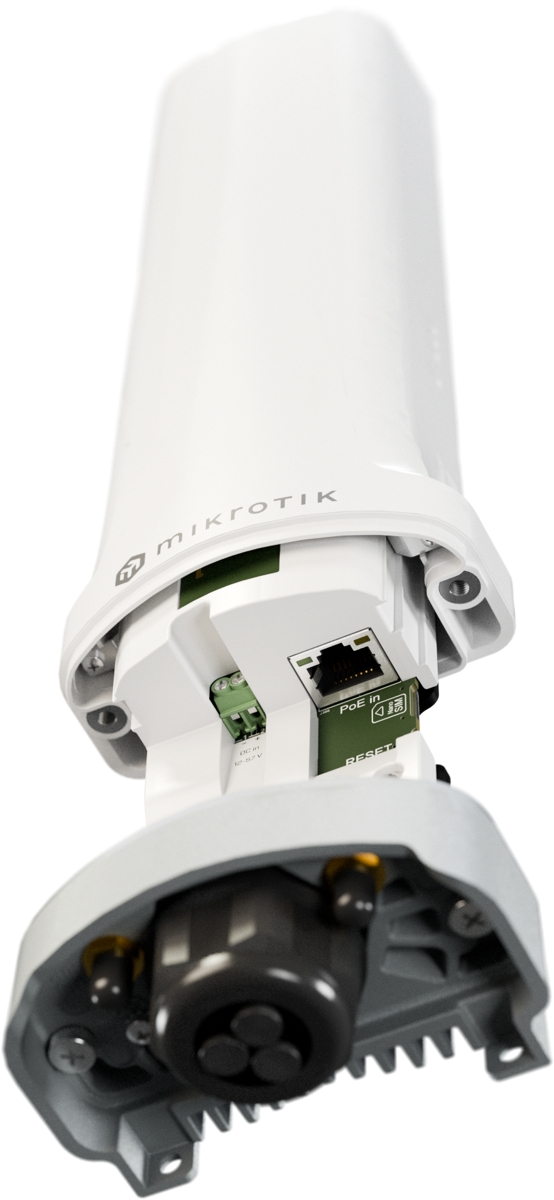

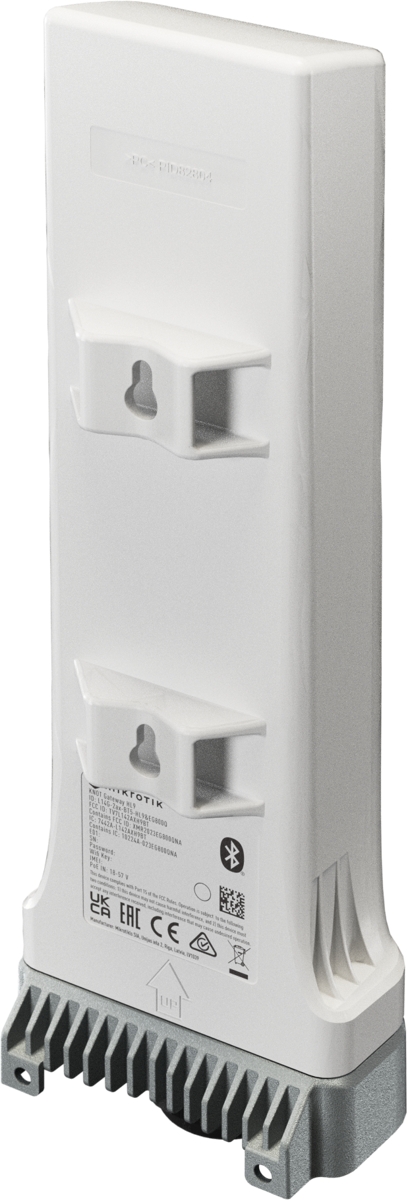

The MikroTik KNOT Gateway LR8 is an outdoor 4G IoT gateway for asset tracking, sensor data collection and remote monitoring. It features a LoRa gateway (868MHz), Bluetooth 5.1, GNSS, (1) 1Gbps PoE-In port, 2.4GHz Wi-Fi 6, (1) nano SIM slot and eSIM support. With RouterOS, it can process and filter data locally before sending it to a server.
The LTE modem supports 4G LTE Cat. 1 bis networks with speeds of up to 10Mbps downlink and 5Mbps uplink. The rugged IP66-rated design enables outdoor installation. This variant is intended for the EU market. It can be powered via 18-57V passive PoE, 802.3af/at active PoE or a 12-57V DC terminal block.
Package contents
- Device
- Power adapter 24V/0.5A
- Passive PoE injector
- Mounting accessories
Download
Technical parameters
LAN ports
Power over Ethernet
802.3af, 802.3at
Protection class
IP66
Design
On the wall, On the mast
Operating mode
AP Router, Cellular router
Wireless frequency
2.4 GHz, LTE, 868 MHz, Bluetooth, GNSS
WiFi standards
802.11ax, 802.11b/g, 802.11n
Type of antenna
Built-in
Integrated 4G/LTE radio part
Yes
Power type
PoE, DC terminal
4G/LTE bands support
(1) 2100 MHz, (20) 800 MHz, (28) 700 MHz, (3) 1800 MHz, (5) 850 MHz, (7) 2600 MHz, (8) 900 MHz
Operating system
RouterOS v7 - L4
LAN speed
(1) 10/100/1000Mbps
LAN ports 1G
1
Gigabit LAN
Yes
PoE type
PoE-In (only)
RJ45 ports 1G
1
Max. power consumption [W]
9
Power via connector/terminal
12 .. 57V DC
Operating temperature [°C]
-40 up to 50
Width [mm]
88
Height [mm]
254
Depth [mm]
57
CPU
IPQ-5010
CPU frequency [MHz]
800
CPU cores
2
SIM slot
Yes
SIM slots quantity
1
IPv6 support
Yes
Internal storage [MB]
128
RAM [MB]
256
GPS modul
Yes
