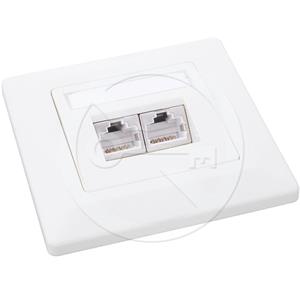

Solarix SX9-2-6-STP-WH, Flush-mount data outlet, 2x RJ45, CAT6 STP
Your price incl. VAT (20.0%)
8.39 EUR / 16.41 BGN
✅ Availability in an external Partner
Planned Delivery Date by Courier to you 11-11-2026
Product description
The Solarix SX9-2-6-STP-WH is a white shielded CAT6 data outlet designed for flush-mount installation. It is equipped with (2) RJ45 ports angled at 45° to reduce strain on connected cables. The outlet can also be surface-mounted using the Solarix SX9-0-WH mounting box.
AWG 26 to 22 solid conductors are terminated in a Krone-type IDC terminal block. The terminal contacts are color-coded for wiring according to the T568A and T568B standards. The outlet supports 2.5/5GBASE-T and lower-speed protocols.
Technical parameters
LAN ports
Category
CAT6
Ports quantity
2
Installation
Concealed
Type of socket
Terminal block
Shielding
Yes
Ethernet support
1000 Base-T
Ports angle [°]
45
Operating temperature [°C]
-10 up to 60
Width [mm]
80
Height [mm]
80
Color
White
