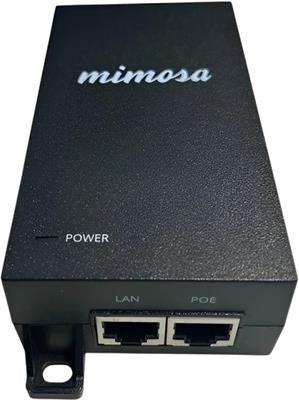

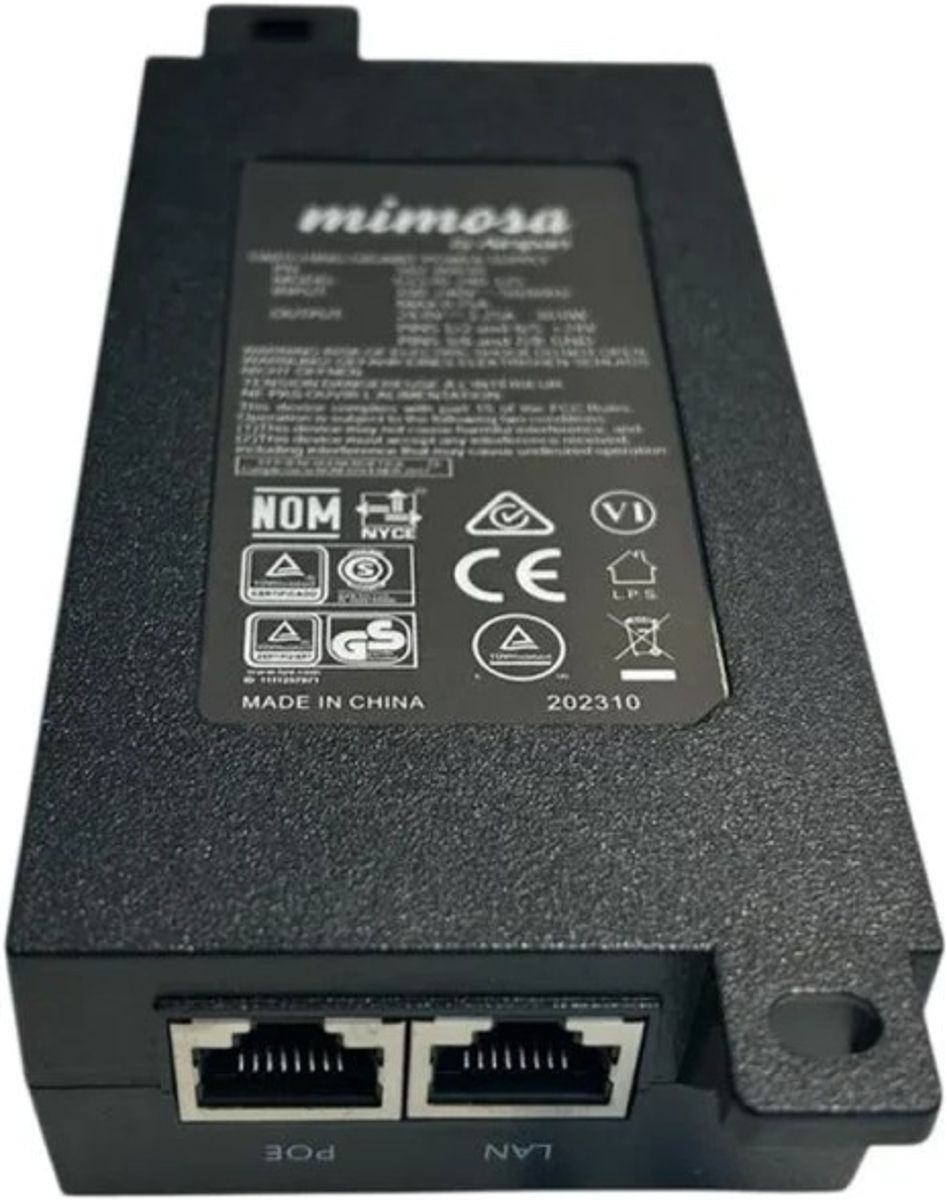

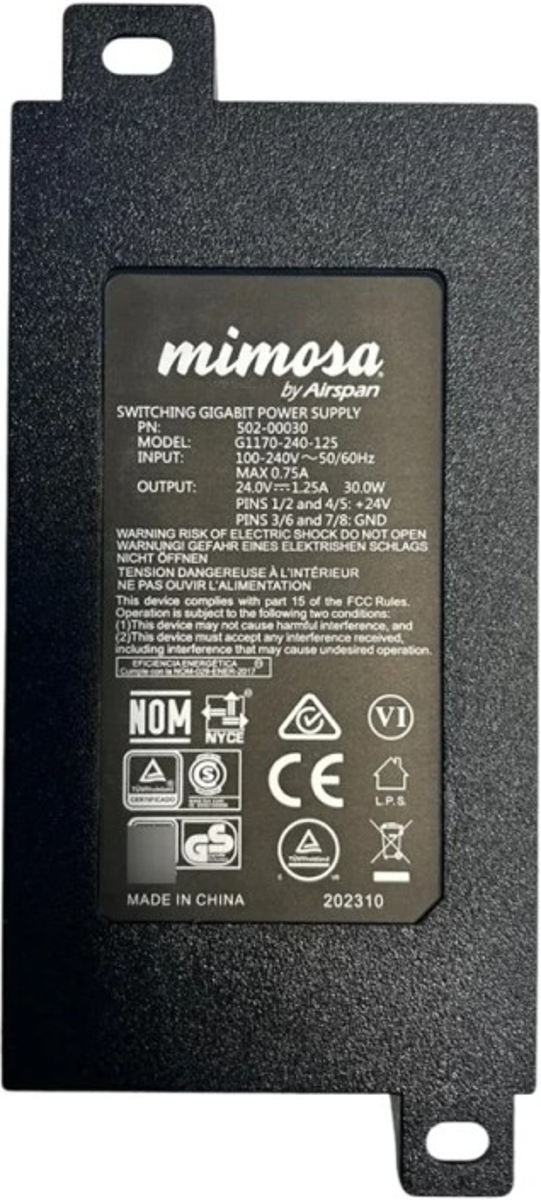

Mimosa 502-00030, Gigabit passive PoE injector, 24V, 30W
Your price incl. VAT (20.0%)
0.00 EUR / 0.00 BGN
Ordered for stock
Planned Delivery Date by Courier to you 17-03-2027
Manufacturer
Product number
502-00030(PoE 24V,1,2A)
Product Code
RL031.738
Warranty
24 months
You have a choice of 2 variants
Product description
The Mimosa 502-00030 is a 1Gbps passive 24V PoE injector with a maximum output power of 30W, a maximum current of 1.25A and an indicator LED. Power is supplied over pins 1,2,4,5 (+) and 3,6,7,8 (-). The power supply features overvoltage and overcurrent protection.
Download
Technical parameters
LAN ports
The input voltage [V]
100 .. 240V AC
Output Power [W]
30
Shielding
Yes
Pin powering
1,2,4,5 (+), 3,6,7,8 (-)
Ethernet speed [Mb/s]
10/100/1000
LED indication
Yes
Gigabit LAN
Yes
PoE Out ports
1
Output Voltage [V]
24
Output Current [A]
1.25
Operating temperature [°C]
-25 up to 50
Width [mm]
62
Height [mm]
35
Depth [mm]
138
Efficiency [%]
88
