Ubiquiti UniFi AP AC PRO

Ubiquiti UniFi AP AC PRO
Your price incl. VAT (20.0%)
296.94 BGN
Ordered for stock
Delivery Planned Delivery Date by Courier to you 12-03-2025
Ubiquiti Networks
Manufacturer
Product number
UAP-AC-PRO
Product Code
RL003.358
Warranty
24 months

Product description

Ubiquiti UniFi AC Pro is an 802.11ac UAP device. It is a 3x3 MIMO 2.4GHz and 5GHz Acess Point with transmission rates up to 1300 + 450 Mbps and supports 802.11a/b/g/n/ac standards. The UAP is designed for offices, hotels, warehouses and outdoor areas without direct contact with water. The antenna system includes three dualband 3 dBi antennas with range up to 122 meters. It also fully supports roaming when passing associated clients between APs. The unit has 2x Gigabit LAN with 48V (44 to 57V) PoE power (passive and active 802.3af/at) and one USB 2.0 port.

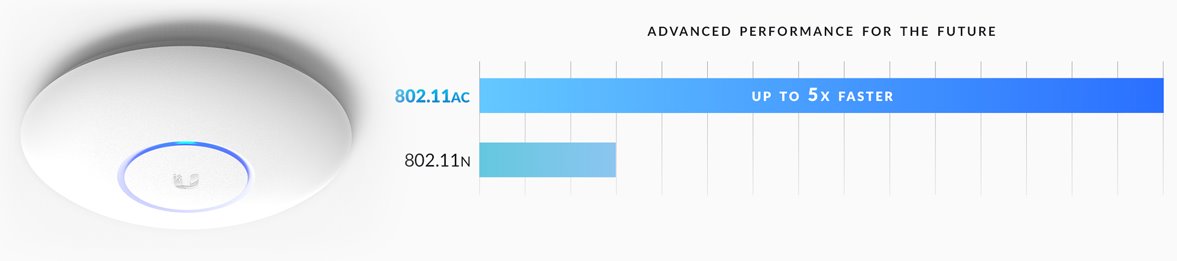

Up to 5X Faster with 3x3 11AC MIMO Technology

The UniFi AC Pro AP supports simultaneous dual-band, 3x3 MIMO technology in the 5 and 2.4 GHz radio bands.

UBNT UniFi AP AC PRO

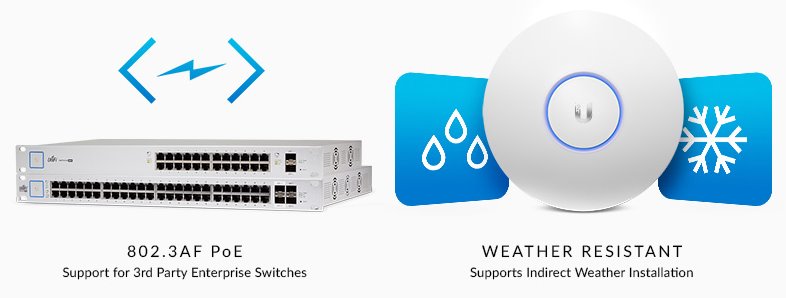

Versatile Design

The UniFi AC Pro AP is a gigabit, 802.3af-powered access point suitable for indoor or outdoor use - in the case of outdoor design, the device must not be exposed to direct contact with water (at least 60 cm from the edge of the eave or ceiling).

UBNT UniFi AP AC PRO

Unit central management

UniFi APs doesn't have own web GUI and you manage them via UniFi Controller, which you can download on UBNT websites here: http://www.ubnt.com. Or you can manage UAP devices using UniFi Cloud Key which has UniFi Controller preinstalled. Additional benefit is fact that UniFi Controller software is free of costs and includes advanced functions without limitations.

UAP-AC-PRO

General advantages of UniFi products

  • Zero Handoff Roaming
  • Wireless uplink
  • Up to 8 SSID
  • Detailed traffic stats
  • Guest network
  • Load balance
  • Speed limitaions for each SSID

Package contains

  • Devices
  • PoE power adapter
  • Power cord
  • Ceiling attach kit
  • Screws

Download

https://dl.ubnt.com/compliance/UAP-AC-PRO_DoC.pdf
Download CE
https://dl.ubnt.com/datasheets/unifi/UniFi_AC_APs_DS.pdf
Download Datasheet
https://download.discomp.cz/Ubiquiti/Navody/UniFi_Controller_V3_UG.pdf
Download UniFi Controller v3 User Guide
https://download.discomp.cz/Ubiquiti/Navody/UniFi_Controller_V4_UG.pdf
Download UniFi Controller v4 User Guide
https://download.discomp.cz/ubiquiti/other/Certificate_WFA65994.pdf
Download WFA certificate
https://download.discomp.cz/Ubiquiti/Other/MTBF_and_Support_Letter_UAP_(5.16.2019).pdf
Download MTBF Reliability Prediction
https://download.discomp.cz/Ubiquiti/QSG/UniFi_AP-AC-Pro_QSG.pdf
Download Quick Start Guide
https://www.ubnt.com/download/unifi
Download Latest UniFi Controller

Technical parameters

LAN ports
Power over Ethernet
44 .. 57V DC, 802.3af, 802.3at
Operating mode
Access Point
Wireless frequency
2.4 + 5 GHz (dual band)
WiFi standards
802.11n, 802.11a, 802.11ac, 802.11b/g
Hotspot 2.0
Yes
Transmission speed - 5GHz [Mb/s]
1300
Transmission speed - 2.4GHz [Mb/s]
450
Tx power 2.4GHz [dBm]
22
Tx power 5GHz [dBm]
22
Security
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
2.4GHz MIMO
3 x 3
5GHz MIMO
3 x 3
Type of antenna
Built-in
Internal antennas
3
Purpose
Outdoor
Roaming
Yes
Antenna gain [dBi]
3
LAN ports
2
LAN speed
(2) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
9
USB ports 2.0
1
Buttons
Reset
Operating temperature [°C]
-10 up to 70
Weight [g]
350
Width [mm]
197
Height [mm]
35
Depth [mm]
197
USB
Yes
IPv6 support
Transparent (bridge mode)
Default IP address
Dynamic from DHCP
Default login and password
ubnt / ubnt
