MikroTik RouterBOARD RB1100Dx4, RB1100AHx4 Dude Edition

MikroTik RouterBOARD RB1100Dx4, RB1100AHx4 Dude Edition
Your price incl. VAT (20.0%)
705.66 BGN
✅ In Stock 10+ Бр.
Delivery Planned Delivery Date by Courier to you 01-01-2025
MikroTik
Manufacturer
Product number
RB1100Dx4
Product Code
RL004.211
Warranty
24 months

Product description

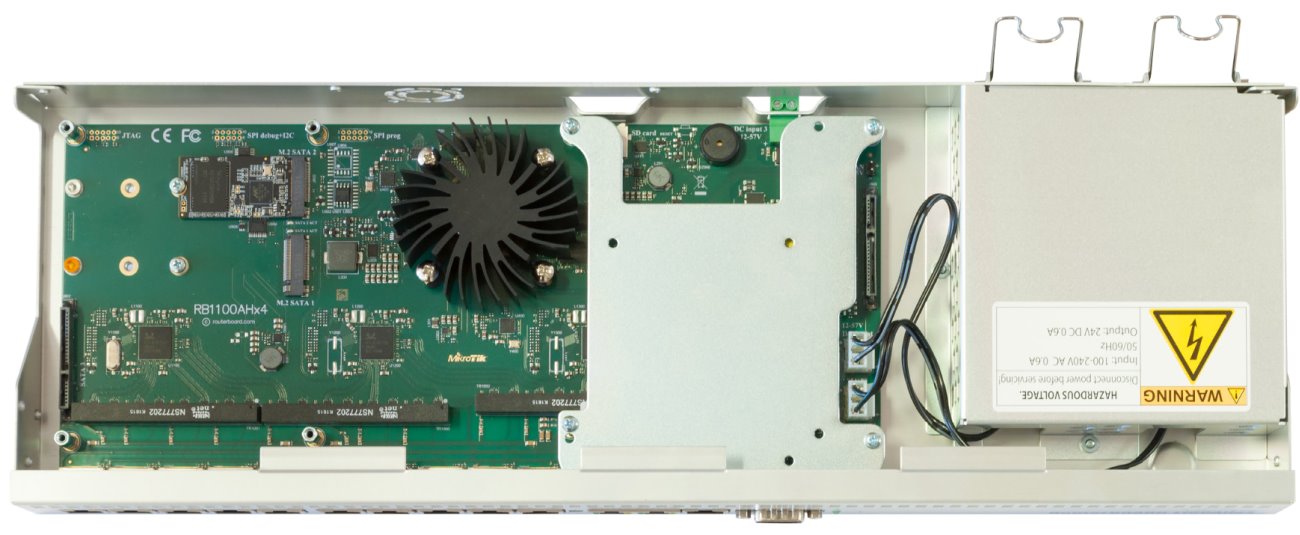

The new RB1100AHx4 Dude Edition uses a new quad core Cortex A15 chip from Annapurna labs, an Amazon company. The chip is clocked at 1.4GHz, for a maximum throughput of up to 7.5Gbit. The RB1100AHx4 Dude Edition supports IPsec hardware acceleration and is faster at it than any previous RouterBOARD device.

Unit features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive and comes with Dude package already installed to work out-of-the box.

Unit features two IEC failover power connectors, supports passive or 802.3at/af PoE input and has a DC telecom power connector for -48V DC powering. It uses passive cooling and is absolutely quiet.

Package contains

  • Device
  • Rackmount ears + screws
  • Sata cable
  • (2) power cord

Download

http://www.mikrotik.com/download
Download Firmware (RouterOS / SwOS)
https://download.discomp.cz/MikroTik/Datasheets/RB1100Dx4_dude_edition.pdf
Download Datasheet

Technical parameters

LAN ports
Power over Ethernet
802.3at, 20 .. 57V DC
Design
Rackmount
M.2 slots
2
Multiple WAN
Yes
Slot for Memory Card
microSD
Power type
Mains power (230V), PoE, DC terminal
Operating system
RouterOS - L6
Fans
No
LAN ports
13
LAN speed
(13) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Redundant power supply
Yes
Max. power consumption [W]
25
Serial port
RS-232
Chassis design
Metal
Power via connector/terminal
230V AC, 12 .. 57V DC
Width [mm]
444
Height [mm]
47
Depth [mm]
148
CPU
AL21400
CPU frequency [MHz]
1400
CPU cores
4
IPv6 support
Yes
Default IP address
192.168.88.1
Internal storage [MB]
128 + 60GB (m.2 SATA)
RAM [MB]
1024
Default login and password
admin / -
