Ubiquiti UF-NANO - U Fiber Nano
Your price incl. VAT (20.0%)
144.49 BGN
✅ In Stock 10+ Бр.
Planned Delivery Date by Courier to you 01-01-2025
Product description

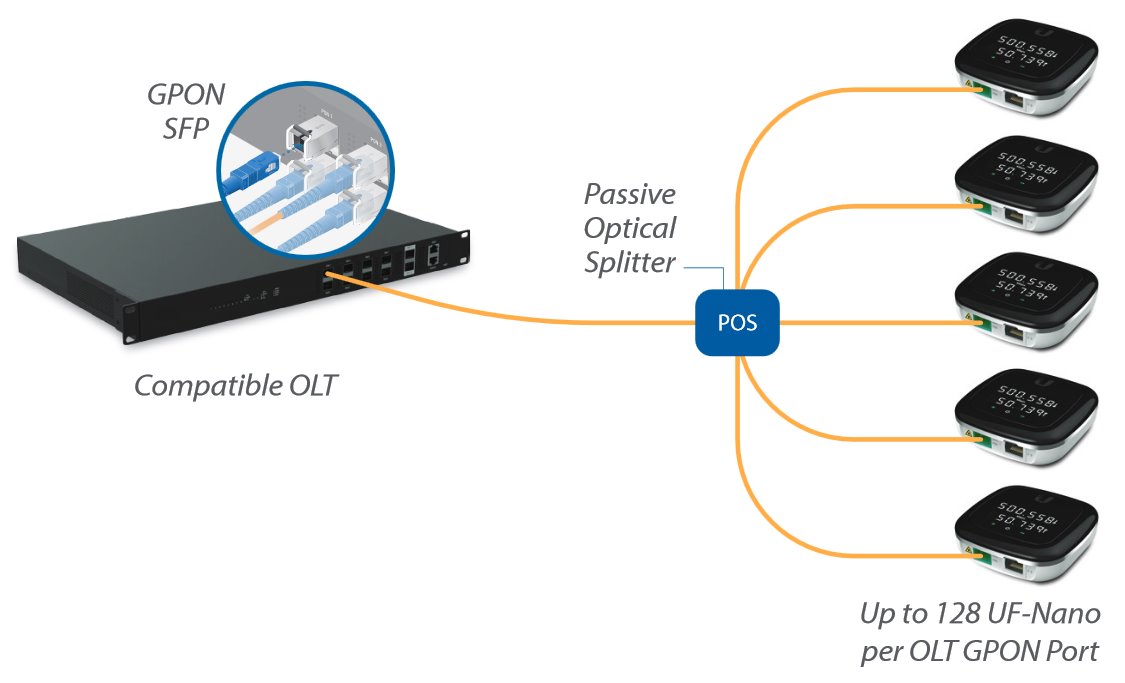

UF-NANO is a compact and at the same time robustly built GPON terminal element with an LED display for displaying the current throughput / IP address and the status of the Ethernet and optical line. The speed of the PON line is maximum (Rx/Tx) 2.488 / 1.244Gbps, the speed of the ethernet is 10/100/1000Mbps and the device as such can only be powered via a 24V passive PoE adapter. As such, the device serves to convert metallic to optical and can only use Bridge mode, not Router mode.
Package contains
- Device
- PoE power adapter 24V / 0.3A
- Power cord
- (4) screws and screw anchors
- Wall Mount Bracket
Download
Technical parameters
LAN ports
Power over Ethernet
20 .. 28V DC
Optical Connectors
(1) SC
Transmission speed
2.488 / 1.244 Gbps
Wavelength - Tx/Rx [nm]
1310 / 1490
Distance [km]
20
Transfer type
GPON
Polishing type
APC
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Max. power consumption [W]
7
Buttons
Reset
Operating temperature [°C]
-10 up to 45
Width [mm]
77
Height [mm]
77
Depth [mm]
28
Default IP address
192.168.1.1
Default login and password
ubnt / ubnt
