Ubiquiti ACB-ISP, airCube ISP WiFi access point / router

Ubiquiti ACB-ISP, airCube ISP WiFi access point / router
Your price incl. VAT (20.0%)
55.21 BGN
✅ In Stock 70+ Бр.
Delivery Planned Delivery Date by Courier to you 13-11-2024
Ubiquiti Networks
Manufacturer
Product number
ACB-ISP
Product Code
RL004.482
Warranty
24 months

Product description

AirCube ISP is home router with modern design and very powerful / discrete antenna system hidden under a plastic chassis. The body of the router is in black matt color is complemented by an elegant white backlit base.

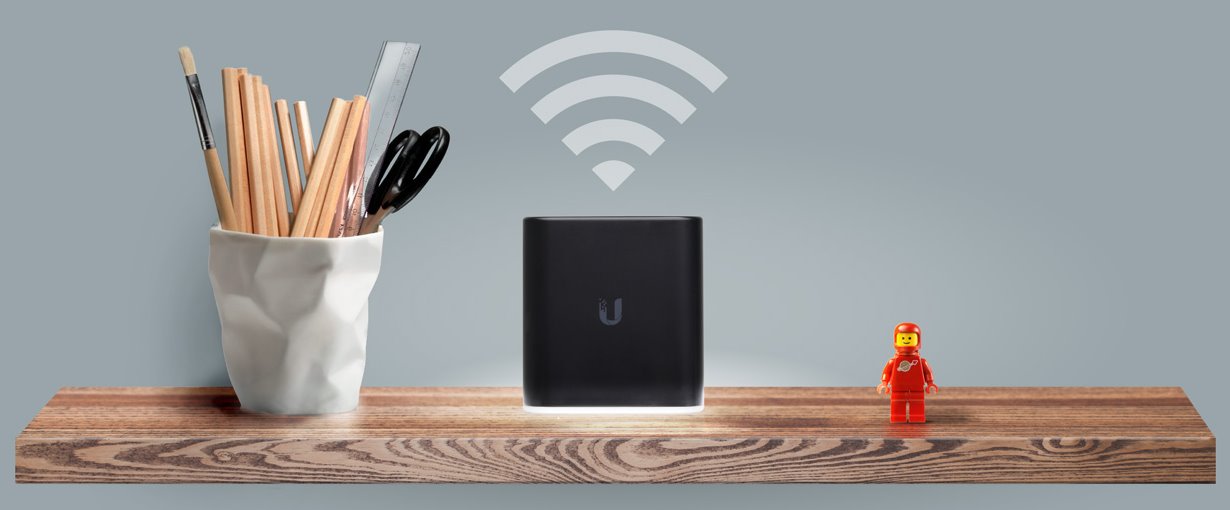

ACB-ISP attractive design

The Router features 3x 10/100 Mbps LAN ports (1st LAN port supports PoE IN), 1x 10/100 Mbps WAN port with PoE output PoE, microUSB connector and 2x2 MIMO WiFi radio supporting 300Mbps speed in 2.4GHz.

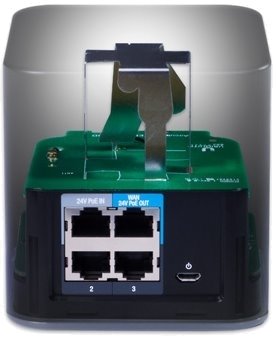

ACB-ISP interfaces and antenna system

Powering

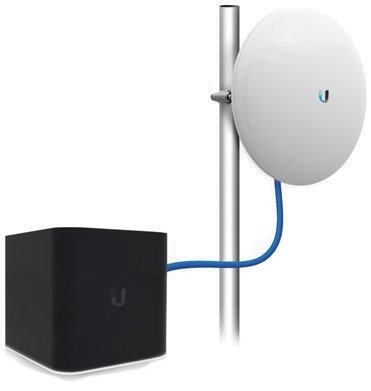

Router can be powering via unpacked microUSB power adapter or via 24V passive injector connected to the 1st LAN port, which will also power an outdoor unit such as Loco, PowerBeam, NanoBeam and other CPE connected to the WAN port.

ACB-ISP powering

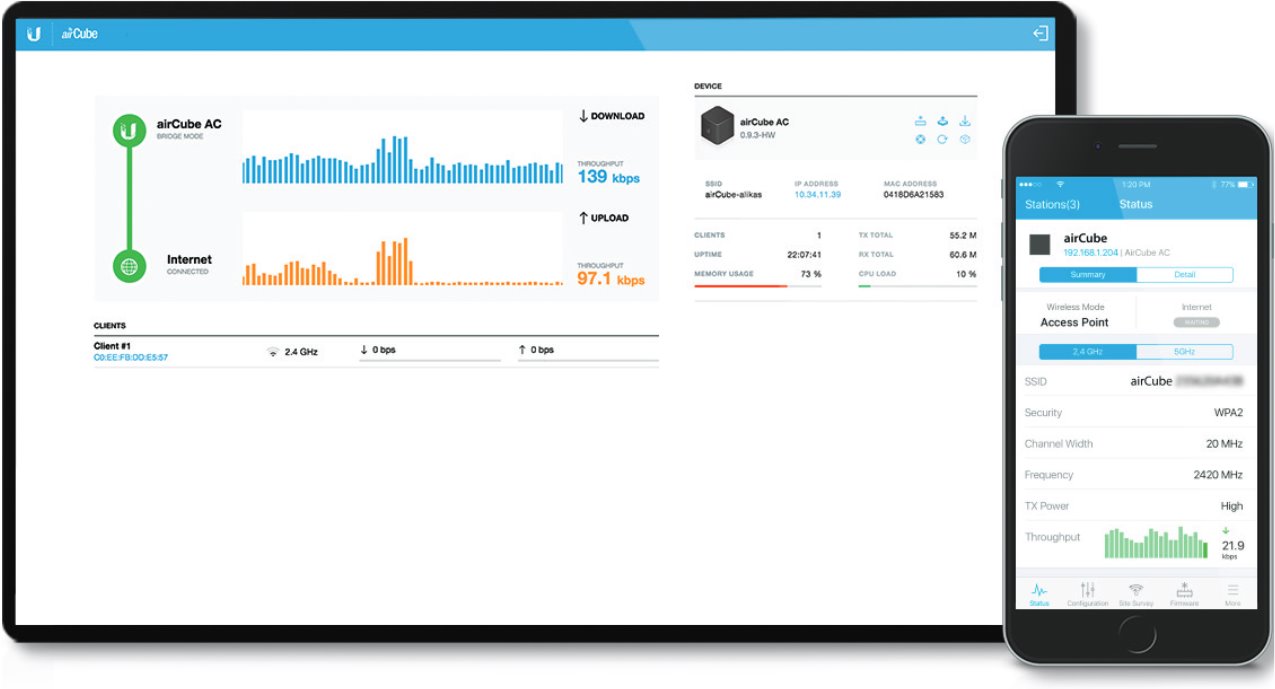

Management

  • WEB UI - Enables a standalone utility for basic configuration.
  • UMobile app - Supports quick setup and status information.
  • UNMS - Provides advanced remote control of Ubiquiti® devices
ACB-ISP management

Package contains

  • Device

Download

https://dl.ubnt.com/datasheets/aircube/airCube_DS.pdf
Download Datasheet
https://dl.ubnt.com/guides/airCube/airCube_ISP_QSG.pdf
Download Quick Guide

Technical parameters

LAN ports
Power over Ethernet
24V DC
WAN speed
(1) 10/100Mbps
Operating mode
AP Router
Wireless frequency
2.4 GHz
WiFi standards
802.11b/g, 802.11n
Transmission speed - 2.4GHz [Mb/s]
300
Tx power 2.4GHz [dBm]
22
Security
WPA2 AES
2.4GHz MIMO
2 x 2
Type of antenna
Built-in
Internal antennas
1
Purpose
Indoor
Antenna gain [dBi]
4
LAN ports
3
LAN speed
(3) 10/100Mbps
PoE type
PoE-Out + PoE-In
Max. power consumption [W]
5
Power via connector/terminal
5V / 2A
Buttons
Reset
Operating temperature [°C]
-10 up to 50
Weight [g]
280
Width [mm]
90
Height [mm]
88
Depth [mm]
90
Default IP address
192.168.1.1, Dynamic from DHCP
Default login and password
ubnt / (preset password, see bottom of router)
