Ubiquiti PowerBeam 2AC-400, 2.4GHz MIMO, 18dBi

Ubiquiti PowerBeam 2AC-400, 2.4GHz MIMO, 18dBi
Your price incl. VAT (20.0%)
231.18 BGN
✅ In Stock < 10 Бр.
Delivery Planned Delivery Date by Courier to you 01-01-2025
Ubiquiti Networks
Manufacturer
Product number
PBE-2AC-400
Product Code
RL004.513
Warranty
24 months

Product description

Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam® AC is ideal for CPE deployments requiring maximum performance.

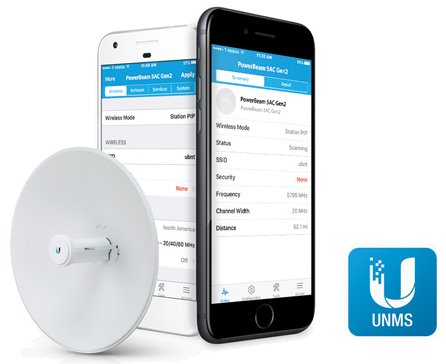

Management Wi-Fi Radio

The PowerBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

PBE-2AC-400

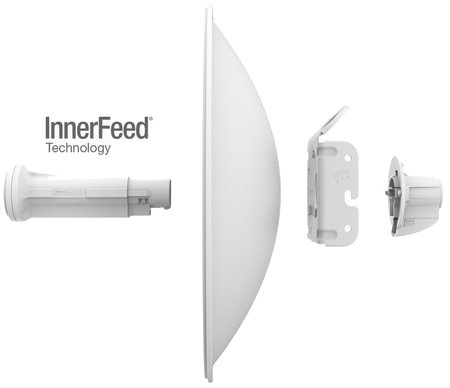

Integrated Radio Design

Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.

PBE-2AC-400

Superior Processing

Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Plug and Play Installation

You only need one key for installation. Thanks to the button for releasing the radiator, its replacement is really easy. The holder allows elevation in the range of 20 ° up and down. Optionally available for purchase.

Package contains

  • Device
  • Dish antenna
  • Rear housing
  • Holder
  • Gbit PoE power adapter
  • Power cord

Download

https://dl.ubnt.com/datasheets/PowerBeam_ac/PowerBeam_PBE-2AC-400_DS.pdf
Download Datasheet
https://dl.ubnt.com/guides/PowerBeam_Gen2/PowerBeam_2AC-400_QSG.pdf
Download Quick Guide
https://www.ubnt.com/download/airmax-ac/powerbeam-ac-gen2/pbe-2ac-400
Download Firmware

Technical parameters

LAN ports
Power over Ethernet
24V DC
Sensitivity [dBm]
-92
Maximum modulation
256 QAM
Channel bandwidth [MHz]
10, 20, 40
Operating mode
Access Point, AP Router, Client, Client Router (wisp), Repeater
Wireless frequency
2.4 GHz
WiFi standards
airMAX ac
Transmission speed - 2.4GHz [Mb/s]
433
Tx power 2.4GHz [dBm]
27
2.4GHz MIMO
2 x 2
Type of antenna
Built-in
Internal antennas
2
Purpose
Outdoor
Antenna gain [dBi]
18
Power type
PoE
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
7,5
Buttons
Reset
Operating temperature [°C]
-40 up to 70
Weight [g]
1795
Width [mm]
420
Height [mm]
420
Depth [mm]
289
CPU
MIPS 74Kc
CPU frequency [MHz]
560
IPv6 support
Yes
Default IP address
192.168.1.20
RAM [MB]
64
Default login and password
ubnt / ubnt
