Ubiquiti NS-5AC, NanoStation 5AC

Ubiquiti NS-5AC, NanoStation 5AC
Your price incl. VAT (20.0%)
249.58 BGN
❌ The item is not available. There is no option to order.
Delivery No confirmed delivery date
Ubiquiti Networks
Manufacturer
Product number
NS-5AC
Product Code
RL004.555
Warranty
24 months

Product description

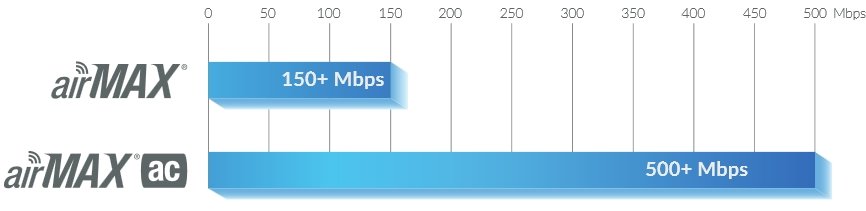

NanoStation 5AC is discreet, 16dBi airMAX ac outdoor CPE unit, with high speed throughput and stability connectivity in high interference environment. The unit is compatible only with another airMAX ac unit. Unit allows set wild width of bandwidth 10/20/30/40/50/60 and 80MHz with 256QAM modulation. Real throughput may achieves real bandwidth 450Mbps+...

NS-5AC

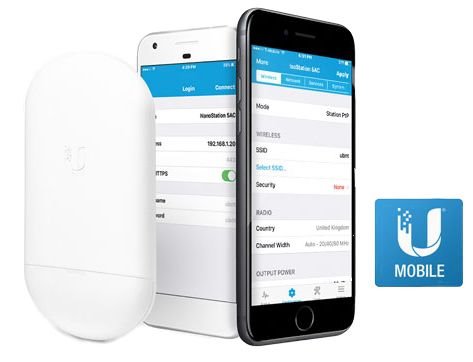

Management Wi-Fi Radio

Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

UMobile app | NS-5AC

Dual Ethernet Connectivity

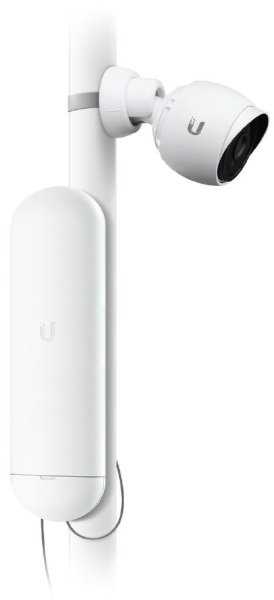

The NanoStation AC provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.

PoE | NS-5AC

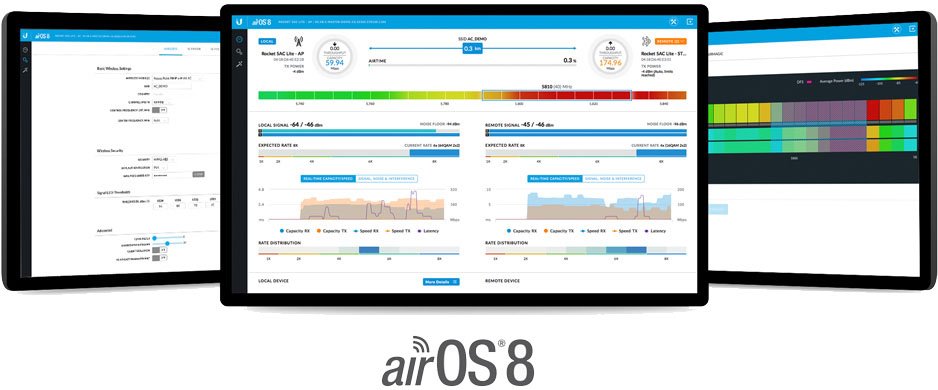

Now with airOS 8

airOS 8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

NS-5AC

Package contains

  • Device
  • PoE gigabit power adapter 24V/0.5A
  • Power cord
  • Screws + wall mount bracket
  • Plastic strap

Download

https://dl.ubnt.com/datasheets/NanoStation_AC/NanoStation_AC_DS.pdf
Download Datasheet
https://dl.ubnt.com/guides/NanoStation_ac/NS-5AC_QSG.pdf
Download Quick Guide
https://www.ubnt.com/download/airmax-ac/nanostation-ac
Download Firmware

Technical parameters

LAN ports
Power over Ethernet
24V DC, 802.3af
Operating mode
Access Point, AP Router, Client, Client Router (wisp), Repeater
Wireless frequency
5 GHz
WiFi standards
airMAX ac
Transmission speed - 5GHz [Mb/s]
866
Tx power 5GHz [dBm]
25
Security
WPA2 AES
Elevation beam width (-6dB) [°]
45
Azimuth beam width (-6dB) [°]
45
5GHz MIMO
2 x 2
Type of antenna
Built-in
Internal antennas
2
Purpose
Outdoor
Antenna gain [dBi]
16
LAN ports
2
LAN speed
(2) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-Out + PoE-In
Max. power consumption [W]
8,5
Buttons
Reset
Operating temperature [°C]
-40 up to 70
Weight [g]
233
Width [mm]
84
Height [mm]
257
Depth [mm]
41
CPU
Atheros MIPS 74KC
CPU frequency [MHz]
560
IPv6 support
Yes
Default IP address
192.168.1.20
RAM [MB]
64
Default login and password
ubnt / ubnt
Other features
WiFi management radio
