MikroTik RouterBOARD RB912R-2nD-LTm, LtAP mini
Your price incl. VAT (20.0%)
174.28 BGN
✅ In Stock 30+ Бр.
Planned Delivery Date by Courier to you 04-12-2024
15.63 BGN excl. VAT
Product description

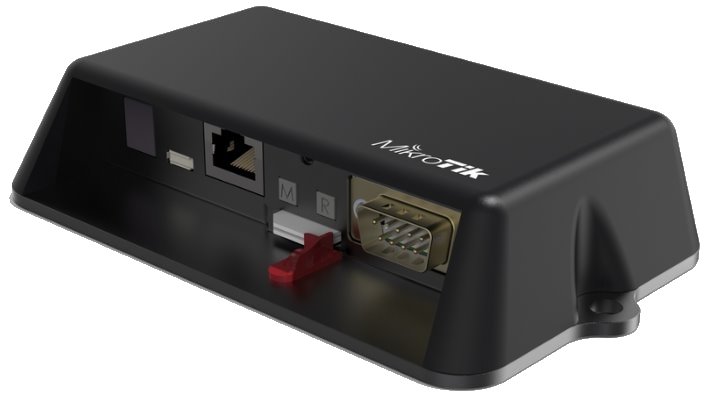

The LtAP mini is a small watherproof wireless access point with a prepared miniPCI-e slot for cellular modem supports 2G,3G and 4G (LTE) connectivity. In black case are prepared 2 LTE antennas with u.Fl connector and 3,5dBi gain.
Connect to the LtAP mini's built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The LtAP mini also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging.
Features
- 2.4 GHz AP in a rugged case
- miniPCIe for LTE
- Two SIM slots
- Built in GPS
- Serial port for other devices
- Perfect for cars or outdoor mobile applications
Package contains
- Device (w/o LTE card)
- Power adapter 24V/1.2A
- PoE injector
Download
Technical parameters
LAN ports
Power over Ethernet
10 .. 57V DC
Design
Outdoor, Desktop
Wireless frequency
2.4 GHz
WiFi standards
802.11n, 802.11b/g
Transmission speed - 2.4GHz [Mb/s]
300
Tx power 2.4GHz [dBm]
22
2.4GHz MIMO
2 x 2
Type of antenna
Built-in
Internal antennas
2
Antenna gain [dBi]
< 2
Power type
DC connector, PoE, USB (5V)
Operating system
RouterOS - L4
LAN ports
1
LAN speed
(1) 10/100Mbps
PoE type
PoE-In (only)
Max. power consumption [W]
9
Serial port
RS-232
Power via connector/terminal
8 .. 30V DC, 5V DC
Operating temperature [°C]
-40 up to 70
Width [mm]
139
Height [mm]
29
Depth [mm]
77
CPU
QCA9531
CPU frequency [MHz]
650
CPU cores
1
MiniPCI-e slots
1
SIM slot
Yes
SIM slots quantity
2
IPv6 support
Yes
Default IP address
192.168.88.1
Internal storage [MB]
16
RAM [MB]
64
Default login and password
admin / -
GPS modul
Yes
