Ubiquiti UniFi Access Point In Wall Hi-Density

Ubiquiti UniFi Access Point In Wall Hi-Density
Your price incl. VAT (20.0%)
338.82 BGN
✅ In Stock 30+ Бр.
Delivery Planned Delivery Date by Courier to you 13-11-2024
Ubiquiti Networks
Manufacturer
Product number
UAP-IW-HD
Product Code
RL005.078
Warranty
24 months

Product description

UAP-IW-HD is a UniFi MU-MIMO ac Wave2 built-in wall-mounted Access Point. In the 5GHz band, it supports 4x4 MU-MIMO technology with a maximum modulation rate of 1733Mbps. In the 2.4GHz band, a radio with 2x2 MIMO supports modulation rate up to 300Mbps. The device itself can be powered by POE 802.3af. If you use the PoE passthrough function, you must use 802.3at powering.

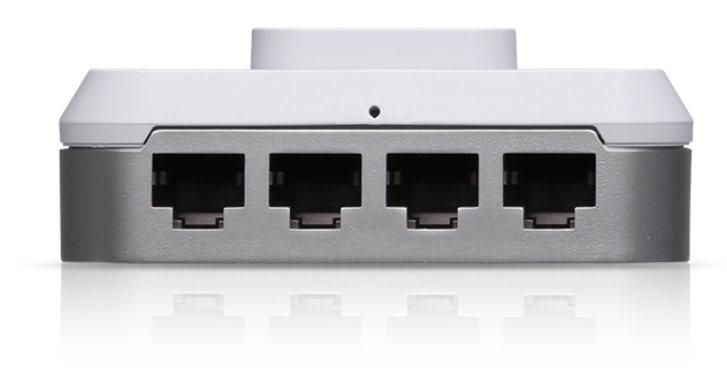

The device is also equipped with an Ethernet switch, on the bottom you will find 4 Gigabit Ethernet, where the first port supports PoE passthough function. Also on back side you will find one Gigabit port supports PoE IN for powering device.

Ubiquiti UAP-IW-HD

Unit central management

UniFi APs doesn't have own web GUI and you manage them via UniFi Controller, which you can download on UBNT websites here: http://www.ubnt.com. Or you can manage UAP devices using UniFi Cloud Key which has UniFi Controller preinstalled. Additional benefit is fact that UniFi Controller software is free of costs and includes advanced functions without limitations.

UAP-IW-HD

General advantages of UniFi products

  • Zero Handoff Roaming
  • Wireless uplink
  • Up to 8 SSID
  • Detailed traffic stats
  • Guest network
  • Load balance
  • Speed limitaions for each SSID

Package contains

  • Devices
  • Back plate, cover plate
  • Screws

Download

https://dl.ubnt.com/ds/uap-iw-hd_ds
Download Datasheet
https://dl.ubnt.com/guides/UniFi/UAP-IW-HD_QSG.pdf
Download Quick Guide

Technical parameters

LAN ports
Power over Ethernet
802.3at, 802.3af, 48V DC
Operating mode
Access Point
Wireless frequency
2.4 + 5 GHz (dual band)
WiFi standards
802.11ac, 802.11ac - wave2, 802.11b/g, 802.11a, 802.11n
MU-MIMO
Yes
Transmission speed - 5GHz [Mb/s]
1733
Transmission speed - 2.4GHz [Mb/s]
300
Tx power 2.4GHz [dBm]
23
Tx power 5GHz [dBm]
26
Security
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) 802.1w/PMF
2.4GHz MIMO
2 x 2
5GHz MIMO
4 x 4
Type of antenna
Built-in
Purpose
Indoor
Roaming
Yes
Antenna gain [dBi]
6, 3,4, < 2
LAN ports
5
LAN speed
(5) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-Out + PoE-In
Max. power consumption [W]
11
Buttons
Reset
Operating temperature [°C]
-10 up to 60
Weight [g]
210
Width [mm]
87
Height [mm]
140
Depth [mm]
26
IPv6 support
Transparent (bridge mode)
Default IP address
Dynamic from DHCP
Default login and password
ubnt / ubnt
