Ubiquiti EdgeSwitch 5XP POE, 5x Gigabits POE ports, 24V (replacement of TS-5-POE)
Your price incl. VAT (20.0%)
178.62 BGN
Ordered for stock
No confirmed delivery date
Product description

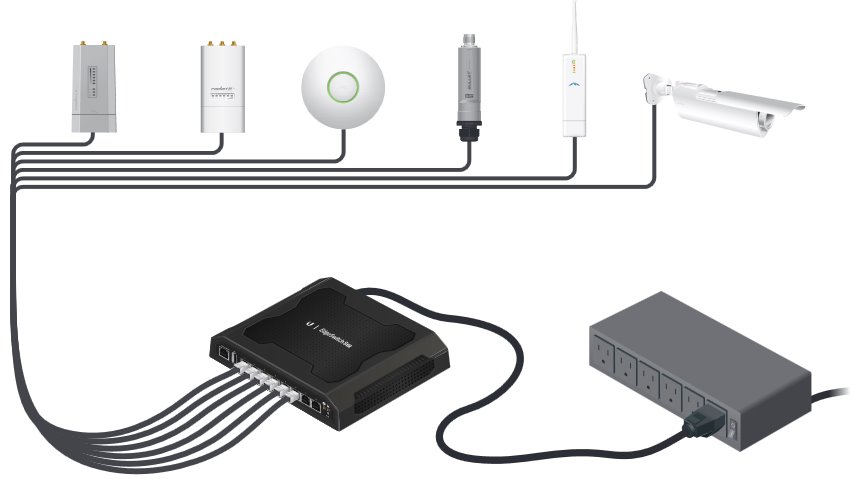

EdgeSwitch 5XP POE is a 5-port Gigabit PoE switch with external power adapter with max power budget 60W. ES-5XP is able to power up to 5 devices 24V passive PoE (suitable for powering NanoStationM5, Rocket M5, PowerBeam, ...). The voltage can be set on individual ports in the switch configuration.
Intuitive UI
- Port monitoring
- System connection and management services
- Virtual Local Area Network (VLAN) configuration
- Spanning Tree Protocol (STP)/Rapid Spanning Tree Protocol (RSTP)
- Ping Watchdog
- Configurable alerts
Package contains
- Device
- Power adapter 24V/2.5A
- Power cord
Download
Technical parameters
LAN ports
Output Power [W]
60
Design
Desktop
MAC address table
16000
Web management
Yes
Management
Web management
Features
VLAN
Power type
DC connector
Fans
No
LAN ports
5
LAN speed
(5) 10/100/1000Mbps
Max. LAN ports speed
1G
Management LAN
(1) 10/100Mbps
PoE type
PoE-Out (only)
PoE-Out standards
Passive 24V
PoE Out ports
5
Output Voltage [V]
24
PoE budget [W]
60
Output Current [A]
2,5
Max. power consumption [W]
60
Chassis design
Plastic
USB ports 2.0
1 (reserved for future use)
Power via connector/terminal
24V / 2,5A
Buttons
Reset
Operating temperature [°C]
-25 up to 55
Width [mm]
197
Height [mm]
27
Depth [mm]
88
Default IP address
192.168.1.20
Default login and password
ubnt / ubnt
