Product description

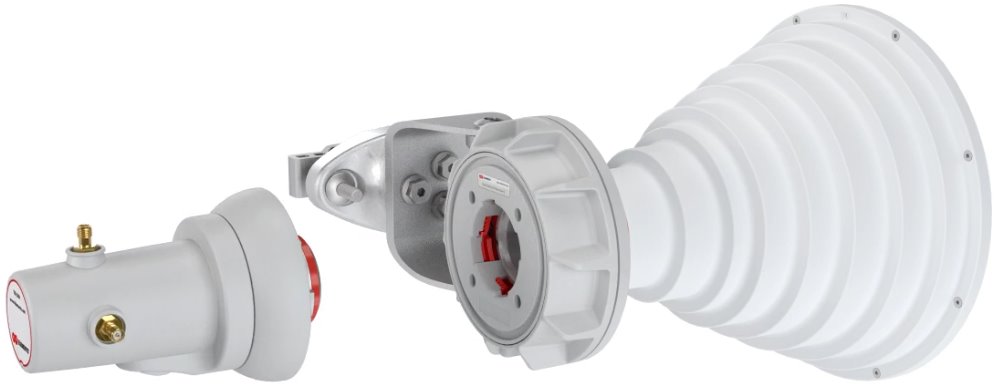

TPA-SMA is a TwistPort converter adapter from TwistPort to (2) RSMA-female connectors. The adapter allows connect any two-polarized radio to be connected by RF cables. The adapter is capable of operating in the 5180 to 6400MHz band.
RSMA female connectors
TPA-SMA provides industry most used RP-SMA male coaxial interface in dual linear H+V polarization.
Minimized Loss

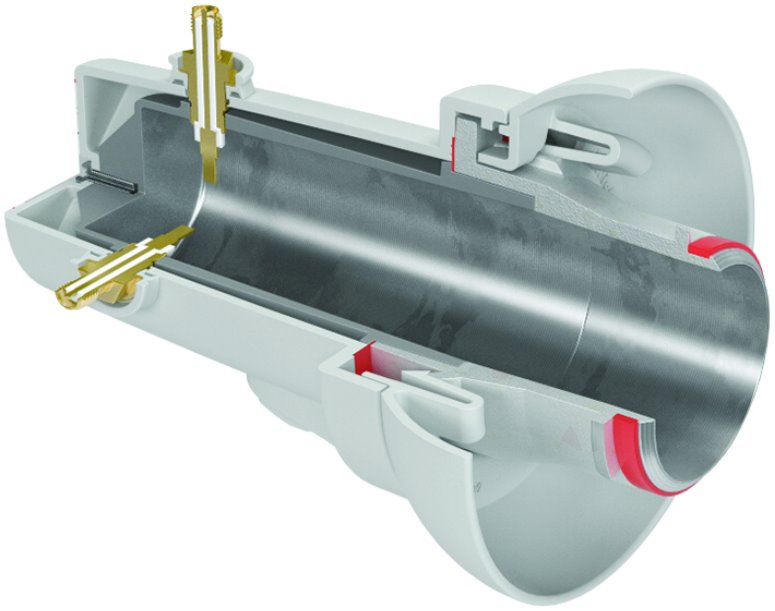

RP-SMA connectors are placed directly on waveguide, avoiding use of inner coaxial cables and minimizing loss to necessary minimum.
Download
Technical parameters
LAN ports
MIMO, SISO
2 x 2
Polarization
VH
VSWR
< 1,8
Shielding
Yes
Mounting
On the antenna
Wireless frequency
5 GHz
RF connectors
TwistPort, (2) RSMA female
Purpose
Outdoor
Material
UV stabilized ABS plastic, Aluminum
Operating temperature [°C]
-40 up to 60
Weight [g]
210
Width [mm]
90
Height [mm]
90
Depth [mm]
134
