Ubiquiti LiteAP 5AC-17-90 GPS, LAP-GPS, 90°

Ubiquiti LiteAP 5AC-17-90 GPS, LAP-GPS, 90°
Your price incl. VAT (20.0%)
193.91 BGN
✅ In Stock 80+ Бр.
Delivery Planned Delivery Date by Courier to you 04-12-2024
Ubiquiti Networks
Manufacturer
Product number
LAP-GPS
Product Code
RL006.122
Warranty
24 months

Product description

LiteBeam 5AC-17-90 GPS is Base Station unit with Gigabit LAN port, integrated 17dBi and sector antenna with 90° beam angle. Unit is compatible only with airMAX AC CPE units and is designed for outdoor usage.

Thanks to the possible setting of the channel width 20/40/50/60 and 80MHz , real throughput of up to 450Mbps + can be achieved when using 256QAM ...

LAP-GPS

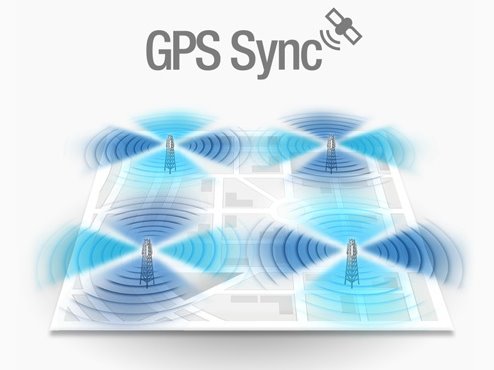

GPS Synchronization

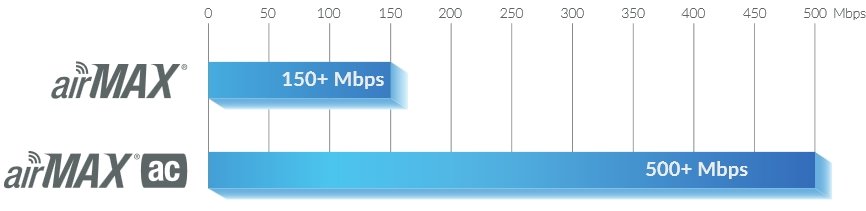

LiteAPTM GPS supports GPS Sync for faster, more scalable, carrier-class networks, with higher throughout than competing solutions. GPS sync with airMAX AC delivers over 90% higher throughput than competing synchronized systems.

LAP-GPS

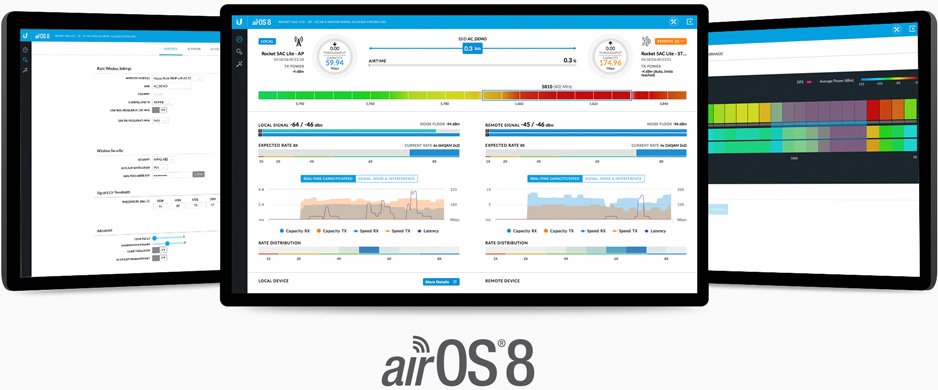

airOS 8

AirOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

LAP-GPS

Package contains

  • Device
  • Ball Joint Mount
  • PoE power adapter 24V / 0.3A
  • Power cord
  • Metal ring

Download

https://dl.ubnt.com/datasheets/LiteAP_ac/LiteAP_AC_DS.pdf
Download Datasheet
https://dl.ubnt.com/guides/airOS/airOS_UG_V80.pdf
Download airOS Quick Guide
https://dl.ubnt.com/qsg/lap-gps
Download Quick Guide

Technical parameters

LAN ports
Power over Ethernet
24V DC
Operating mode
AP Router, Access Point, Client, Client Router (wisp)
Wireless frequency
5 GHz
WiFi standards
airMAX ac
Transmission speed - 5GHz [Mb/s]
866
Tx power 5GHz [dBm]
25
Security
WPA2 AES
Elevation beam width (-6dB) [°]
15
Azimuth beam width (-6dB) [°]
90
5GHz MIMO
2 x 2
Type of antenna
Built-in
Internal antennas
2
Purpose
Outdoor
Antenna gain [dBi]
17
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
7,1
Buttons
Reset
Operating temperature [°C]
-40 up to 70
Weight [g]
752
Width [mm]
125
Height [mm]
361
Depth [mm]
71
CPU
MIPS 74Kc
IPv6 support
Transparent (bridge mode)
Default IP address
192.168.1.20
Default login and password
ubnt / ubnt
GPS modul
Yes
Other features
WiFi management radio
