Ubiquiti NanoStation 5AC Loco, Loco5AC

Ubiquiti NanoStation 5AC Loco, Loco5AC
Your price incl. VAT (20.0%)
95.68 BGN
✅ In Stock 90+ Бр.
Delivery Planned Delivery Date by Courier to you 04-12-2024
Ubiquiti Networks
Manufacturer
Product number
Loco5AC
Product Code
RL006.995
Warranty
24 months

Product description

The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.

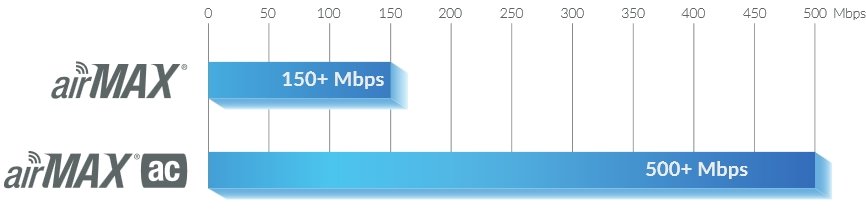

NanoStation 5AC Loco is a very small, 13dBi airMAX ac outdoor CPE unit, with high speed throughput and stability connectivity in high interference environment. The unit is compatible only with another airMAX ac unit. Unit allows set wild width of bandwidth 10/20/30/40/50/60 and 80MHz with 256QAM modulation. Real throughput may achieves real bandwidth 450Mbps+...

Loco5AC

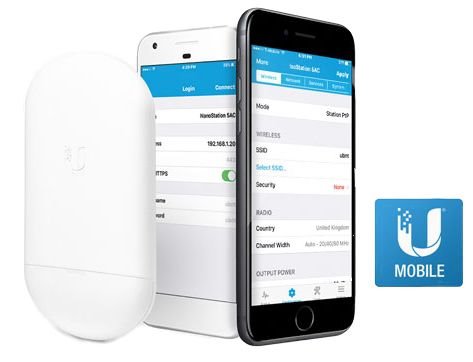

Management Wi-Fi Radio

Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

UMobile app

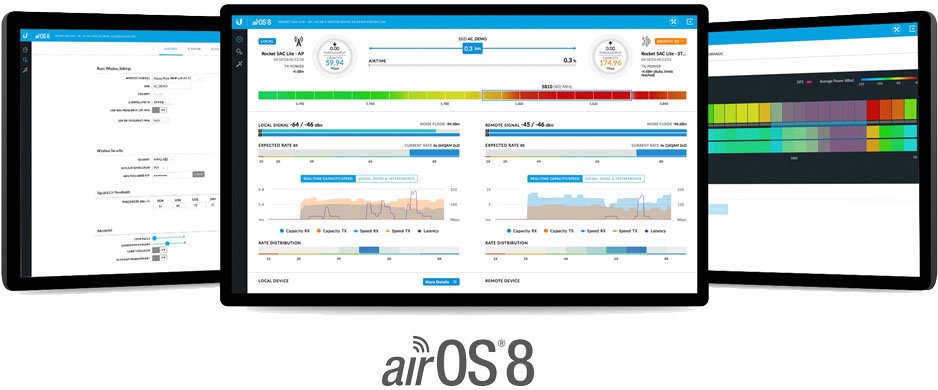

Now with airOS 8

airOS 8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Loco5AC

The device can be powered only by pasive 24V POE adapter.

Notice: the package does not contain PoE adapter. We can offer Gigabit or 100Mbps version.

Package contains

  • Device
  • Plastic strap

Download

https://www.ubnt.com/downloads/datasheets/NanoStation_AC/NanoStation_AC_DS.pdf
Download Datasheet
https://www.ubnt.com/downloads/guides/airOS/airOS_UG_V80.pdf
Download airOS 8 user guide

Technical parameters

LAN ports
Power over Ethernet
24V DC
Operating mode
Client, AP Router, Access Point, Client Router (wisp), Repeater
Wireless frequency
5 GHz
WiFi standards
airMAX ac
Transmission speed - 5GHz [Mb/s]
866
Tx power 5GHz [dBm]
25
Security
WPA2 AES
Elevation beam width (-6dB) [°]
45
Azimuth beam width (-6dB) [°]
45
5GHz MIMO
2 x 2
Type of antenna
Built-in
Internal antennas
2
Purpose
Outdoor
Antenna gain [dBi]
13
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
8,5
Buttons
Reset
Operating temperature [°C]
-40 up to 70
Weight [g]
180
Width [mm]
78
Height [mm]
179
Depth [mm]
59
CPU
Atheros MIPS 74KC
CPU frequency [MHz]
560
IPv6 support
Yes
Default IP address
192.168.1.20
RAM [MB]
64
Default login and password
ubnt / ubnt
Other features
WiFi management radio
