Ubiquiti UBB, UniFi Building Bridge

Ubiquiti UBB, UniFi Building Bridge
Your price incl. VAT (20.0%)
1,034.27 BGN
Ordered for stock
Delivery Planned Delivery Date by Courier to you 02-04-2025
Ubiquiti Networks
Manufacturer
Product number
UBB
Product Code
RL007.277
Warranty
24 months

Product description

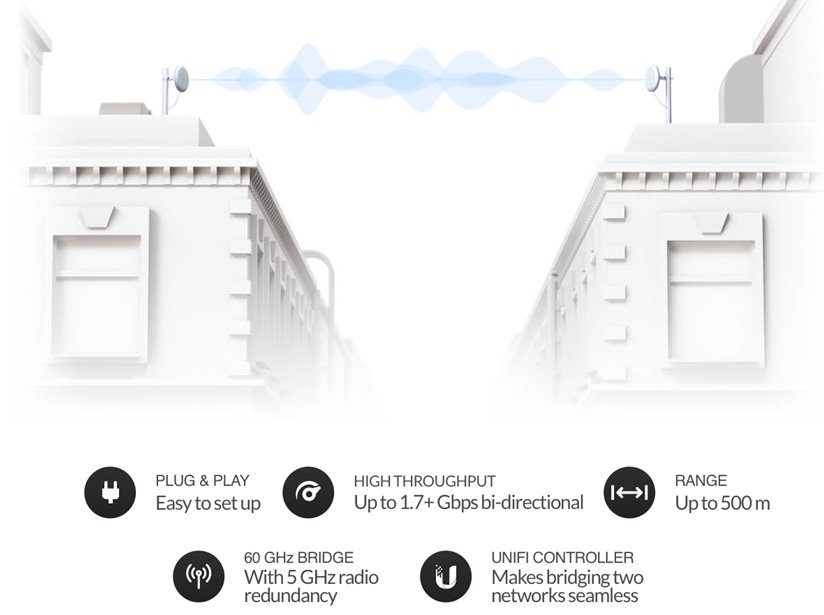

UniFi Building Bridge is a 60GHz point-to-point wireless link with a 5GHz redundancy to extend your network to neighboring building. UBB has throughput is 1.7Gbps+ with a maximum 500m distance and managed or monitored via the UniFi Controller.

UBNT UBB, UniFi Building Bridge

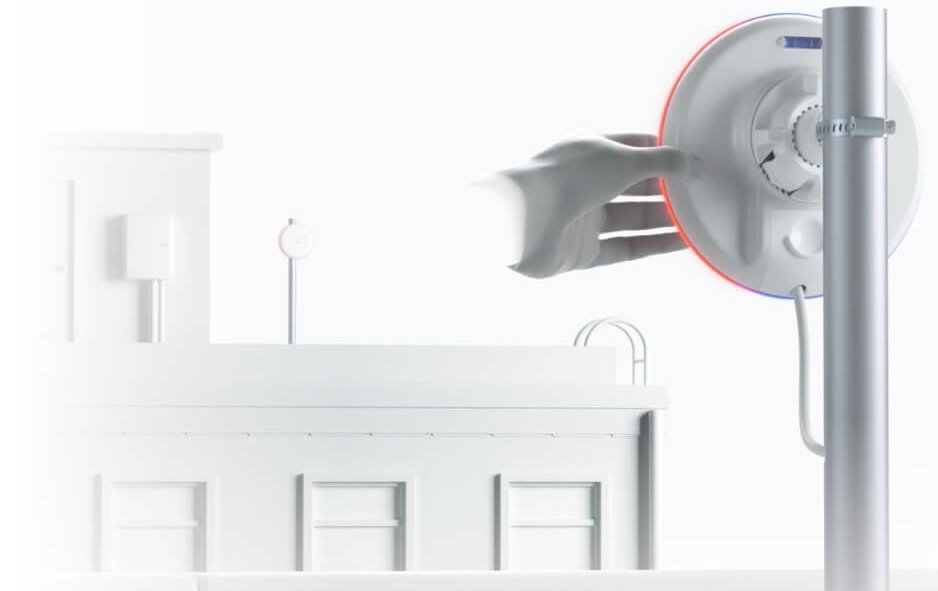

Easily adjust for best signal using LED

The UBB has an integrated LED illumination on the sides that indicates which direction the unit needs to be rotated to get a better signal.

UBNT UBB, UniFi Building Bridge

Package contains

  • (2) Device
  • (2) Ball joint mount + lock ring on mast
  • (2) Gigabit PoE power adapter 48V/0.32A
  • (2) Power cord
  • (2) Metal strap

Download

https://dl.ubnt.com/ds/ubb_ds
Download Datasheet
https://dl.ubnt.com/qsg/UBB/UBB_EN.html
Download Quick Guide
https://fcc.report/FCC-ID/SWX-UBB
Download FCC report

Technical parameters

LAN ports
Power over Ethernet
802.3af, 48V DC
Transmission speed - 5GHz [Mb/s]
866
Transmission speed - 60GHz [Mb/s]
1700
Output power 60GHz [dBm]
36,5 (EIRP)
Elevation beam width (-6dB) [°]
30
Azimuth beam width (-6dB) [°]
60
Antenna gain [dBi]
17
Power type
PoE
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Max. power consumption [W]
11
Operating temperature [°C]
-40 up to 70
Weight [g]
376
Width [mm]
140
Height [mm]
140
Depth [mm]
90
Default IP address
Dynamic from DHCP
Default login and password
ubnt / ubnt
GPS modul
Yes
Other features
Bluetooth
