Ubiquiti UniFi Switch USW-Pro-24

Ubiquiti UniFi Switch USW-Pro-24
Your price incl. VAT (20.0%)
824.83 BGN
✅ In Stock 10+ Бр.
Delivery Planned Delivery Date by Courier to you 04-12-2024
Ubiquiti Networks
Manufacturer
Product number
USW-Pro-24
Product Code
RL007.344
Warranty
24 months

Product description

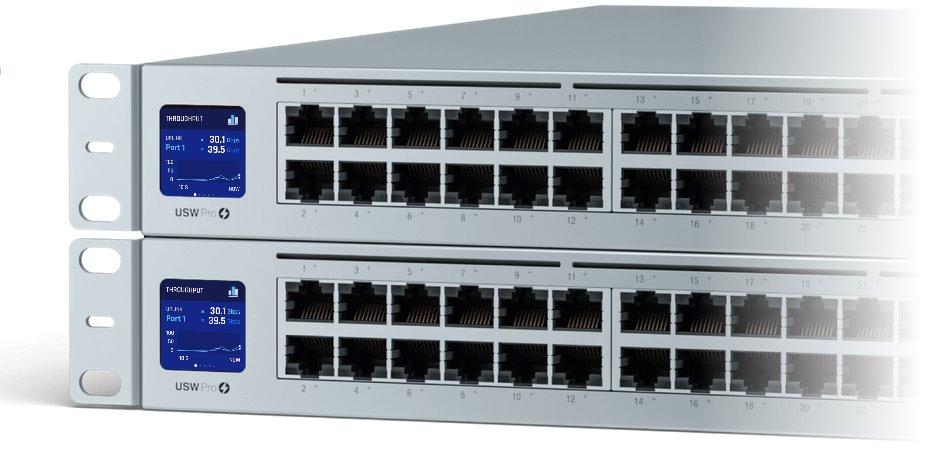

The USW-Pro-24 is a manageable Gigabit L2 switch with 24x Gigabit LAN ports and two SFP+ ports with a transfer rate of 1/10Gbps. In addition to the standard equipment, the switch also has a 1.3" touch screen for providing information about the system, temperature, port statistics and much more.

UBNT USW-Pro-24

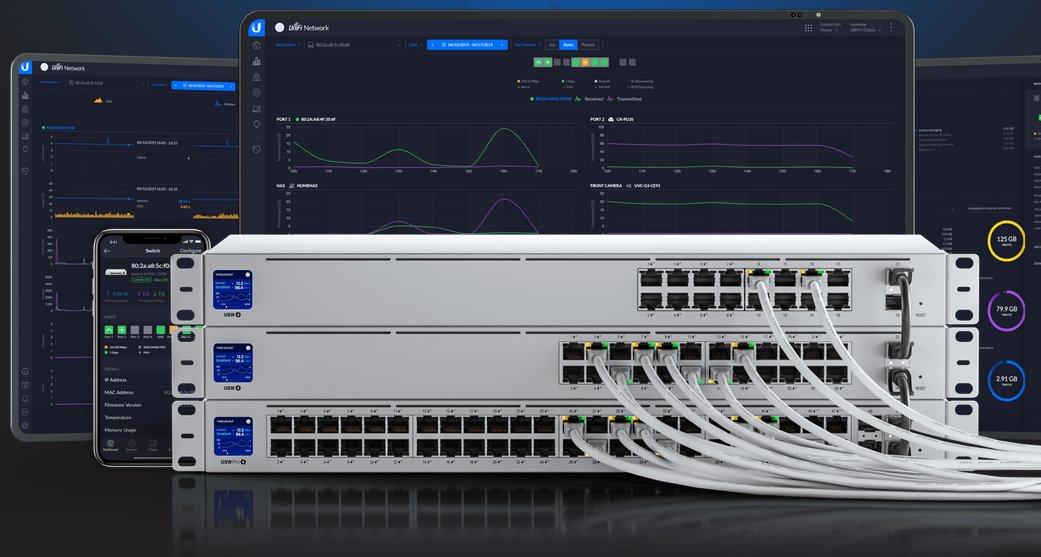

Management via UniFi Controller

The USW-Pro-24 has no web management but is managed centrally using the UniFi Controller with support for the UniFi mobile application and offers an extensive set of advanced switching protocols and L2 functions, including operating mode (switching, mirroring or aggregation) per port. UniFi Network Controller and mobile applications allow administrators to configure and monitor virtually all graphical user interface functions from anywhere.

UBNT USW-Pro-24

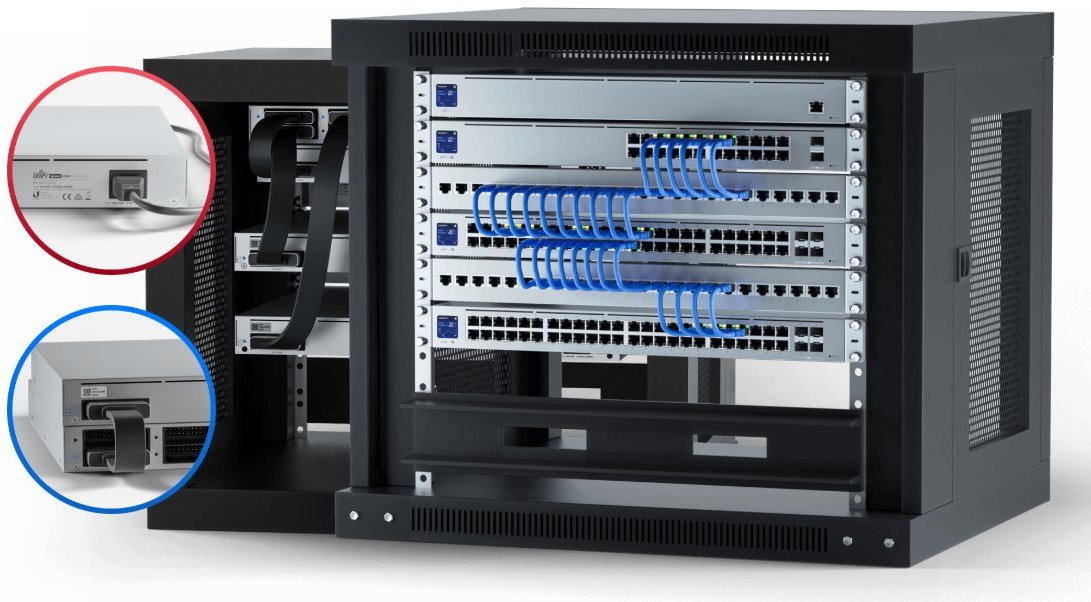

Redundant power

This generation of switches supports redundant power supply via a special connector to the UniFi SmartPower (sold separately) unit in the event of a failure of the primary power supply at the switch.

UBNT USW-Pro-24

Package contains

  • Device
  • Power cord
  • Rackmount ears

Download

https://download.discomp.cz/Ubiquiti/Datasheets/usw-pro-ds.pdf
Download Datasheet

Technical parameters

LAN ports
Design
Rackmount
Switchning capacity [Gbps]
88
MAC address table
16000
Jumbo frame [Bytes]
9000
Management
UniFi Network
Features
VLAN, DHCP snooping
Power type
Mains power (230V), UniFi SmartPower RPS
Fans
No
LAN ports
24
LAN speed
(24) 10/100/1000Mbps
Max. LAN ports speed
1G
SFP cages
2 (1G/10G support)
SFP+ cages
2 (1G/10G support)
Optical interfaces
(2) 1G/10Gbps
Redundant power supply
Yes
Chassis design
Metal
Power via connector/terminal
230V AC
Operating temperature [°C]
-5 up to 40
Width [mm]
442
Height [mm]
44
Depth [mm]
285
Default IP address
Dynamic from DHCP, 192.168.1.20
Default login and password
ubnt / ubnt
Other features
Touchscreen
