Ubiquiti RocketDish 30dBi, 5GHz, Rocket Kit
Your price incl. VAT (20.0%)
255.98 BGN
✅ In Stock 20+ Бр.
Planned Delivery Date by Courier to you 04-12-2024
You have a choice of 4 variants
Product description
Ubiquiti RocketDish RD-5G30 is a 2x2 parabolic antenna suitable for long PtP coupled using Rocket M units. It also comes with waterproof accessories for connection to the Rocket M5 unit.

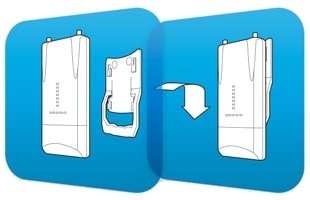

Built-in Rocket kit
Thanks to the built-in mounting system of the so-called rocket kit, any Rocket unit can be directly mounted on this antenna without the need for additional accessories. Simply click the Rocket and you're done.
Download
Technical parameters
LAN ports
MIMO, SISO
2 x 2
Polarization
VH
Antenna design
Parabolic
VSWR
< 1,4
F/B ratio [dB]
34
Cross-Pol Isolation [dB]
35
Wind load [km/h]
200
Rocket kit
Yes
Wireless frequency
5 GHz
Elevation beam width (-6dB) [°]
5
Azimuth beam width (-6dB) [°]
5
Antenna type
Directional
RF connectors
(2) RSMA female
Purpose
Outdoor
Antenna gain [dBi]
30
Weight [kg]
9,8
Width [mm]
650
Height [mm]
650
Depth [mm]
304
