Ubiquiti LTU-LR, 5GHz LTU, Long Range CPE

Product description

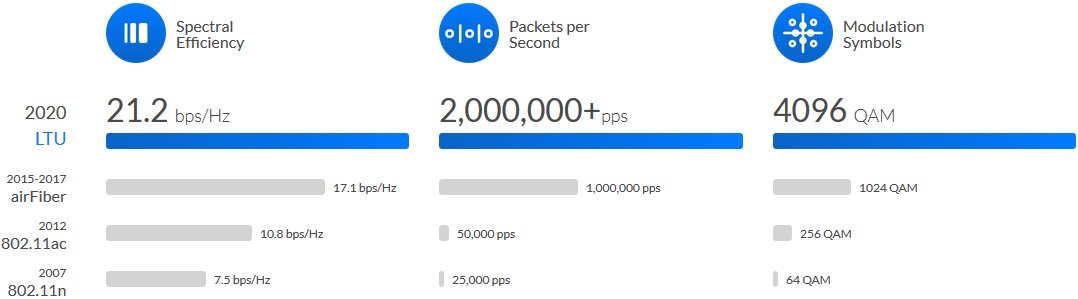

LTU-LR is a PtMP CPE unit for the 5GHz band with 26dBi antenna gain and proprietary LTU wireless technology that is not based on the 802.11 standard protocol can deliver real TCP/IP speeds 600Mbps+ (up to 1Gbps+ with future fw), modulation up to 1025 QAM (up to 4096 QAM with future fw) and higher spectral efficiency 21.2 bps/Hz, twice the 802.11AC standard!

Features

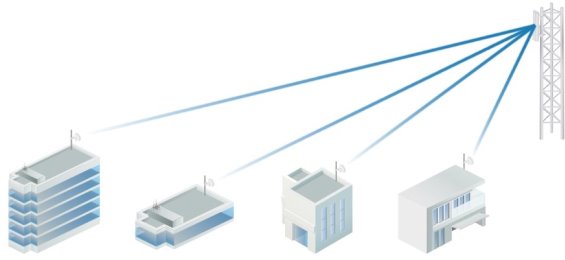

• PtMP CPE
• 1024 QAM (in future fw up to 4096 QAM)
• 10/20/30/40/50 MHz channel bandwidth (in future fw up to 100MHz!)
• Central configuration management from AP side
• Frequency split
• Auto power adjustments
• Router and bridge mode support

Frequency Split

LTU technology allows you to set different transmission (Tx) and receive (Rx) frequencies to avoid interference, increasing your network's throughput.

Compatibility

LTU is a completely new platform based on proprietary technology, which doesn't use 802.11 protocol, making it incompatible with 802.11n and 802.11ac devices. For that reason it is NOT compatible with airMAX M5 nor with airMAX 5AC.

Software

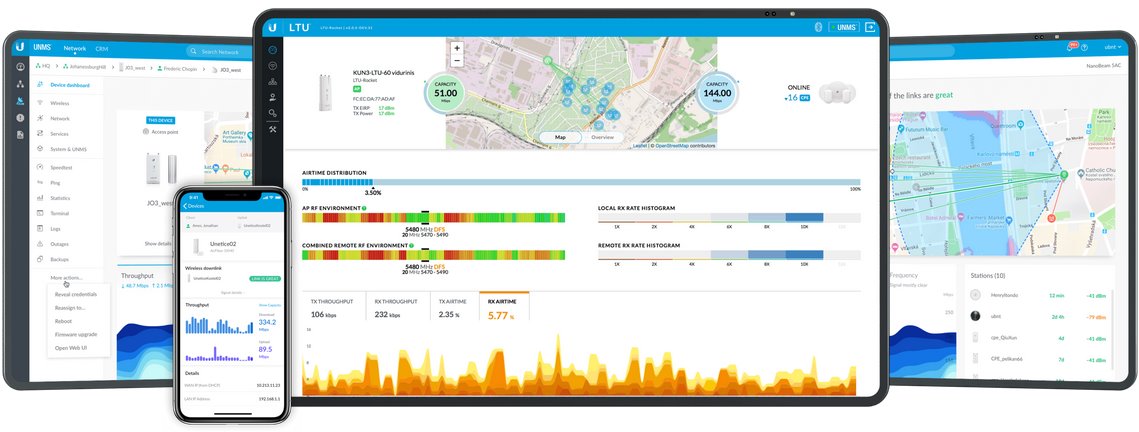

In addition to its own web management, LTU products are also supported by UNMS software for central management and management of Ubiquiti devices.

Package contains

• Device
• Antenna
• Metal strap
• Mast bracket
• Gigabit PoE power adapter 24V/0.5A
• Power cord

Download

https://dl.ubnt.com/qsg/LTU-LR/LTU-LR_EN.html

Quick Guide

https://dl.ui.com/ds/ltu-lr_ds.pdf

Datasheet
