Ubiquiti UniFi Switch US-XG-6POE
Your price incl. VAT (20.0%)
1,247.82 BGN
✅ In Stock 20+ Бр.
Planned Delivery Date by Courier to you 01-01-2025
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDMML-S+2733-10
26.60 BGN excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDMML-S+3327-10
26.60 BGN excl. VAT
12.66 BGN excl. VAT
19.89 BGN excl. VAT
27.13 BGN excl. VAT
Product description

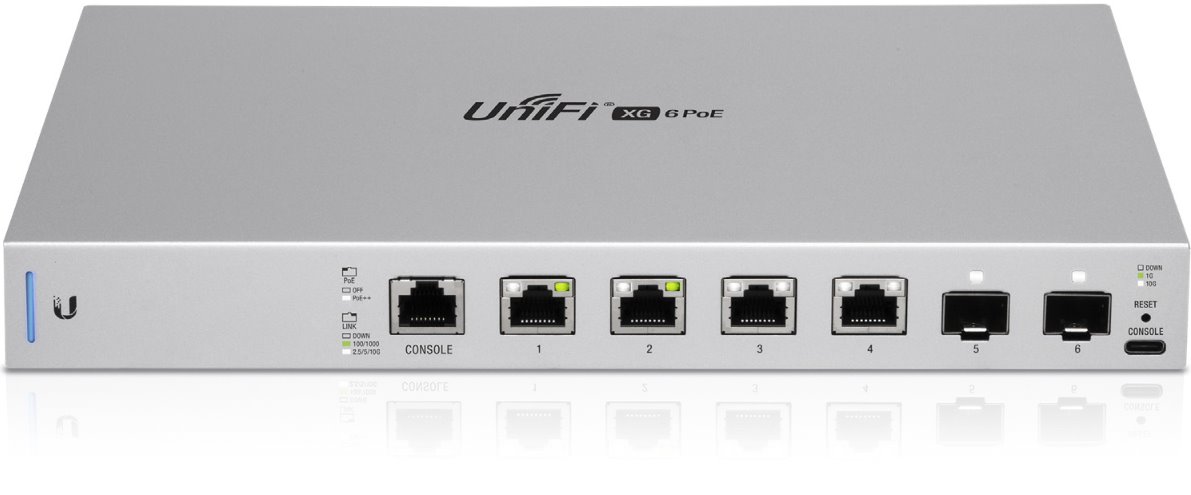

10-Gigabit PoE switch Ubiquiti UniFi Switch XG 6POE with desktop design with maximum output PoE power 170W. Switch has 4x 10-Gigabit LAN ports and 2x 1/10G SFP+ optical ports with overall throughput 120 Gbps.
60W PoE Out on each port
The biggest advantage of the switch is the output PoE on every 10Gbps metallic port that supports the 802.3af/at standards, including the latest 802.3bt with a maximum output 60W/port. Automatic detection ensures full functionality of 802.3af/at/bt devices without prior configuration.

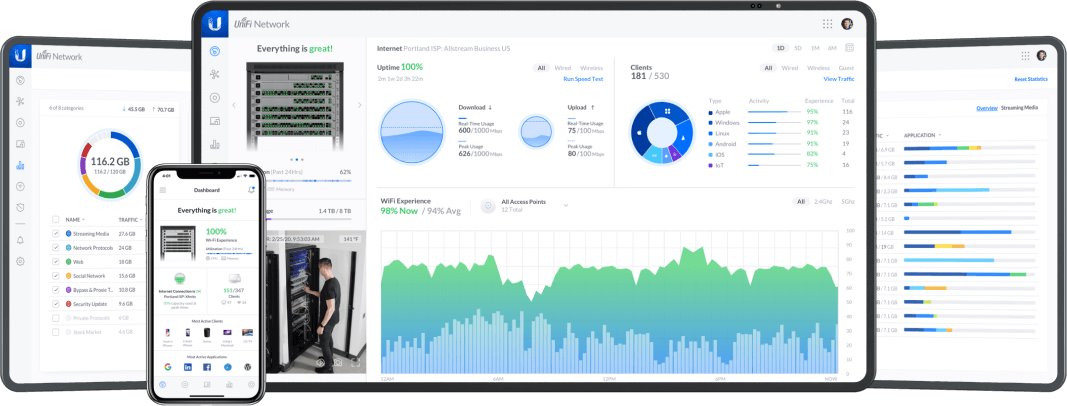

Management over UniFi Controller
The main difference between UniFi switches and Edge Switches is web management - Edge Switche's WebGUI management is substituted by UniFi Controller in UniFi Switches.
Package contains
- Device
- Power adapter 54V/3.88A
- Power cord
- Screws, dowels
Download
Technical parameters
LAN ports
Design
Desktop
Switchning capacity [Gbps]
120
MAC address table
16000
Jumbo frame [Bytes]
9000
Packet forwarding rate [Mpps]
89,3
Management
SSH, Telnet, UniFi Network
Features
VLAN, DHCP snooping
Power type
DC terminal, DC connector
Fans
No
LAN ports
4
LAN speed
(4) 100M/1G/2.5G/5G/10Gbps
Max. LAN ports speed
10G
PoE type
PoE-Out (only)
SFP cages
2 (1G/10G support)
SFP+ cages
2 (1G/10G support)
Optical interfaces
(2) 1G/10Gbps
PoE-Out standards
802.3af, 802.3at, 802.3bt
PoE Out ports
4
PoE budget [W]
210
Max. power consumption [W]
40
Serial port
RJ45, USB-C
Chassis design
Metal
Power via connector/terminal
44 .. 57V DC
Buttons
Reset
Operating temperature [°C]
-5 up to 45
Width [mm]
268
Height [mm]
32
Depth [mm]
165
Default IP address
192.168.1.20, Dynamic from DHCP
Default login and password
ubnt / ubnt
