Mimosa A5c, PTMP access point 802.11ac, 4x N female, Extended Frequency

Mimosa A5c, PTMP access point 802.11ac, 4x N female, Extended Frequency
Your price incl. VAT (20.0%)
1,253.03 BGN
✅ In Stock < 10 Бр.
Delivery Planned Delivery Date by Courier to you 04-12-2024
Mimosa
Manufacturer
Product number
100-00037-01(A5c-EF)
Product Code
RL008.494
Warranty
24 months

Product description

Increased Capacity at Each Site

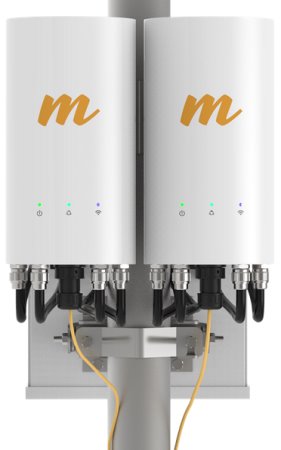

With integrated high precision GPS Sync technology, new A5c sectors can easily be added at existing Mimosa A5 and B5 sites and reuse the same channel. This saves valuable, scarce unlicensed spectrum resources when new A5c devices are installed “back-to-back” on the same tower or pole.

Mimosa A5c

Ultra-High Client Capacity

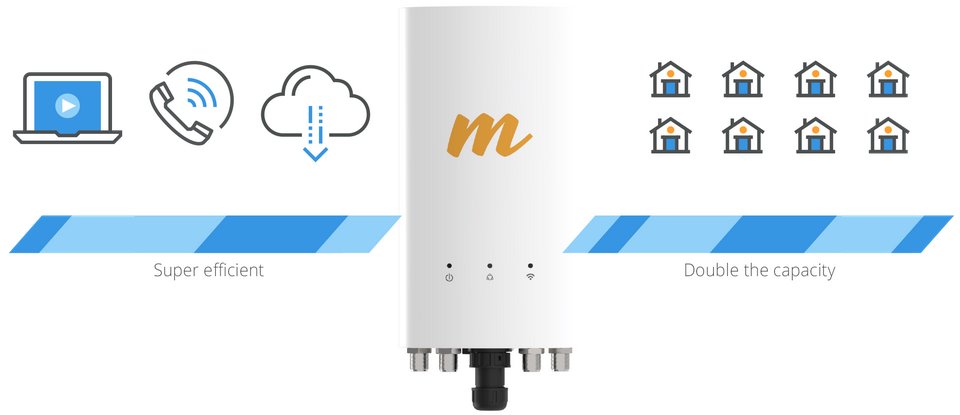

TDMA techniques provide significant improvements when scaling the number of clients. By dynamically allocating timeslots and supporting Multi-User MIMO in the downstream direction and allocating upstream timeslots upon client request, network scale, spectrum efficiency and access point utilization are optimized to the highest degree possible.

Mimosa A5c

Fiber Speeds

With client speeds capable of 500+ Mbps and access point capacity up to 1.5 Gbps, the A5 delivers the speeds consumers and business users demand at a fraction of the cost of delivering fiber-to- the-premises.

Mimosa A5c

Extended Frequency

The new model A5c-EF (Extended Frequency) can operate from the 4900MHz up to 6400MHz frequency spectrum, which is next 200MHz above further than the previous model.

Package contains

  • Device
  • (2) Metal ring
  • Power cord
  • PoE power adapter
  • Cable gland
  • Self-vulcanizing tape

Download

https://download.discomp.cz/mimosa/datasheet/A5c.pdf
Download Datasheet
https://download.discomp.cz/mimosa/overview/A5c_Product_Overview.pdf
Download Product overview
https://mimosa.co/firmware
Download Firmware

Technical parameters

LAN ports
Power over Ethernet
802.3at
Sensitivity [dBm]
-93
Maximum modulation
256 QAM
Operating mode
Access Point
Wireless frequency
5 GHz
WiFi standards
Mimosa SRS, WiFi Interop
MU-MIMO
Yes
Transmission speed - 5GHz [Mb/s]
1733
Tx power 5GHz [dBm]
30
Security
WPA2 PSK & Enterprise 802.1x;Radius provisioning, COA, DM; 128-bit AESwith hardware acceleration
5GHz MIMO
4 x 4
Type of antenna
Detachable
Detachable antennas
4
RF connectors
(4) N female
Purpose
Outdoor
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
25
Operating temperature [°C]
-40 up to 55
Weight [g]
1750
Width [mm]
151
Height [mm]
300
Depth [mm]
85
Default IP address
Dynamic from DHCP, 192.168.1.10
Default login and password
Is set by the user at the first startup
GPS modul
Yes
Other features
WiFi management radio
