MaxLink POE panel 16 ports, 1U for 19" rack, shielded

MaxLink POE panel 16 ports, 1U for 19  rack, shielded
Your price incl. VAT (20.0%)
62.44 BGN
✅ In Stock 90+ Бр.
Delivery Planned Delivery Date by Courier to you 01-01-2025
MaxLink
Manufacturer
Product number
POE-PAN16
Product Code
RL000.866
Warranty
24 months

Product description

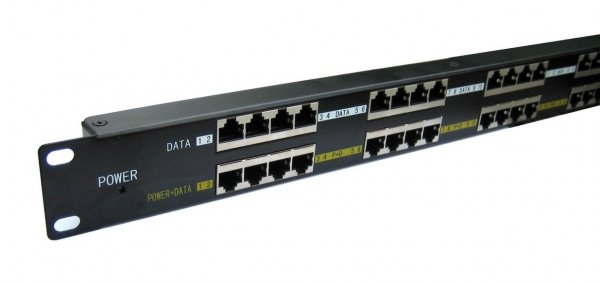

Panel integrating 16 passive PoE injectors into a single 19" / 1U panel suitable for powering up to sixteen devices. Professional solution for remote powering of many active elements with passive PoE support.

MaxLink POE-PAN16

Important features

  • 19" rackmount design
  • 16 ports with passive PoE support
  • LED indicator to determine the functional power adapter
  • The grounding screw on the rear panel to filter Surge
  • Overvoltage protection on each port (650 mA/port)
  • Input power connector - standard jack 2.1 / 5.5mm

Application

Ethernet ports without power supply (e.g. switch) are connected to RJ45 connectors marked as "DATA" on one side and devices using power supply via Ethernet cable are connected to the opposite side "POWER + DATA". POE-PAN16 is compatible with active elements using pins 4, 5 (+), pins 7, 8 (-). Especially useful for MikroTik and Ubiquiti. Power performance can be optimized according to the devices used and their configuration.

Download

https://download.discomp.cz/MaxLink/Datasheets/DS-16port-POE-Injector-Panel.pdf
Download Datasheet

Technical parameters

LAN ports
The input voltage [V]
9 .. 48V DC
Rackmount
Yes
Shielding
Yes
Pin powering
4,5 (+), 7,8 (-)
Ethernet speed [Mb/s]
10/100
LED indication
Yes
PoE Out ports
16
Operating temperature [°C]
0 up to 40
Weight [kg]
0,7
Width [mm]
483
Height [mm]
45
Depth [mm]
22
