Hikvision AX PRO Wireless Wall Switch
Planned Delivery Date by Courier to you 04-12-2024
Product description
DS-PM1-O1H-WE is a high-voltage relay module from the AX PRO series from Hikvision. This remotely controlled module can control a high-voltage relay 100 V to 240 V AC with a maximum current of 13 A. The module communicates wirelessly in two-way communication with the control panel at a frequency of 868 MHz with AES-128 encryption. The module is powered via an AC connector/terminal block with a voltage of 230 V AC.
Important features
- Compatible with AX PRO only
- 868 MHz bidirectional communication, Tri-X communication protocol
- Transmitter power 10 dBm
- LED display shows status and on / off
- Small cover: discreet placement and masking
- Auto mode, on / off with one button from the app / controller / keyboard
- Configure scenarios for different events
- Tamper input 1× can be used as 1 alarm input (including zones)
- Relay output: 1× NO/NC (AC 100 V to 240 V, Max. 13 A)
- Serial port: 1x for debugging purposes
- Power supply: AC 100 V to 240 V, 50/60 Hz

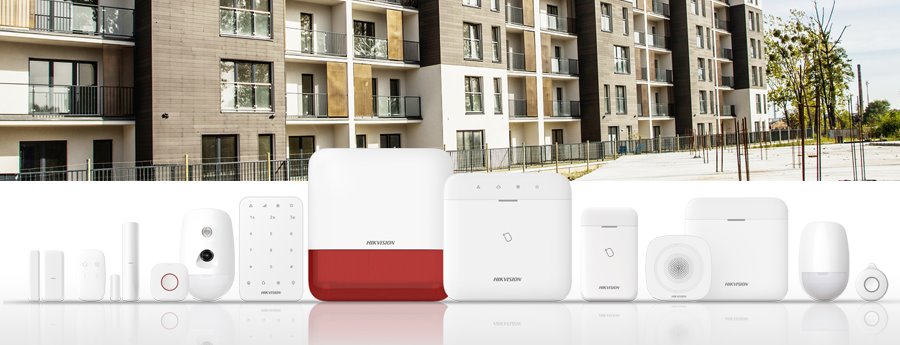

AX PRO alarm system
AX PRO is an innovative wireless security system from the renowned manufacturer Hikvision. It is a variable alarm system that includes a large number of detectors and sensors and can be used in virtually any situation. It has an unprecedented range of wireless connection (up to 2 km) and can cover really large and rugged spaces. The devices are compatible with the new Hik-ProConnect application and can communicate with other Hikvision devices. The entire system can be managed remotely via the cloud, giving installers the ability to provide customer support without the need to travel to the site.
