RF elements AS-5-20 - Array Sector Antenna 5GHz, 20 dBi
Your price incl. VAT (20.0%)
235.68 BGN
✅ In Stock 90+ Бр.
Planned Delivery Date by Courier to you 29-05-2024
Download
Technical parameters
LAN ports
MIMO, SISO
2 x 2
Polarization
VH
VSWR
< 1,4
F/B ratio [dB]
30
Designed for mast diameter [mm]
30 up to 80
Cross-Pol Isolation [dB]
27
Wind load [km/h]
160

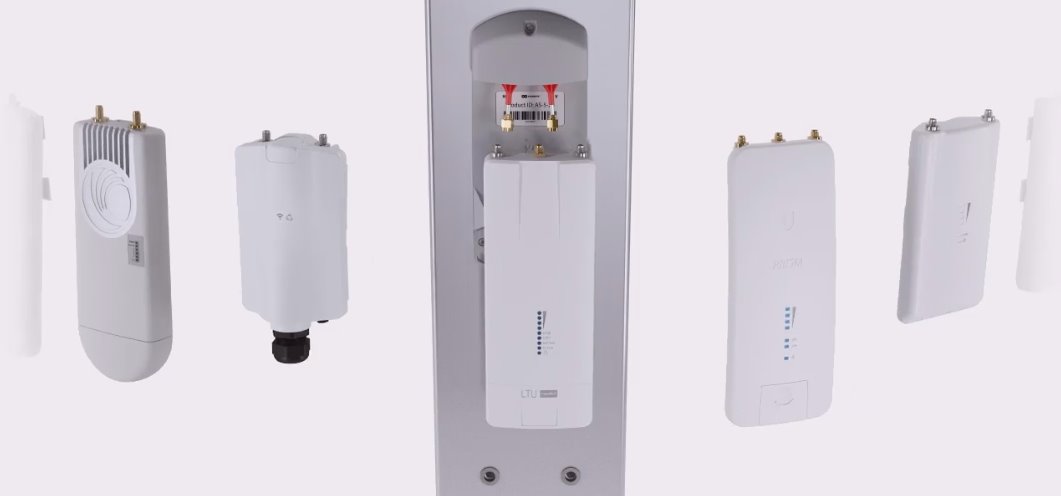

Rocket kit
Yes
Protection class
IP55
Wireless frequency
5 GHz
Elevation beam width (-6dB) [°]
3,5
Azimuth beam width (-6dB) [°]
100
Antenna type
Sector
RF connectors
(2) RSMA male
Purpose
Outdoor
Antenna gain [dBi]
20
Material
Aluminum, Stainless steel
Weight [kg]
3,5
Width [mm]
160
Height [mm]
804
Depth [mm]
63
