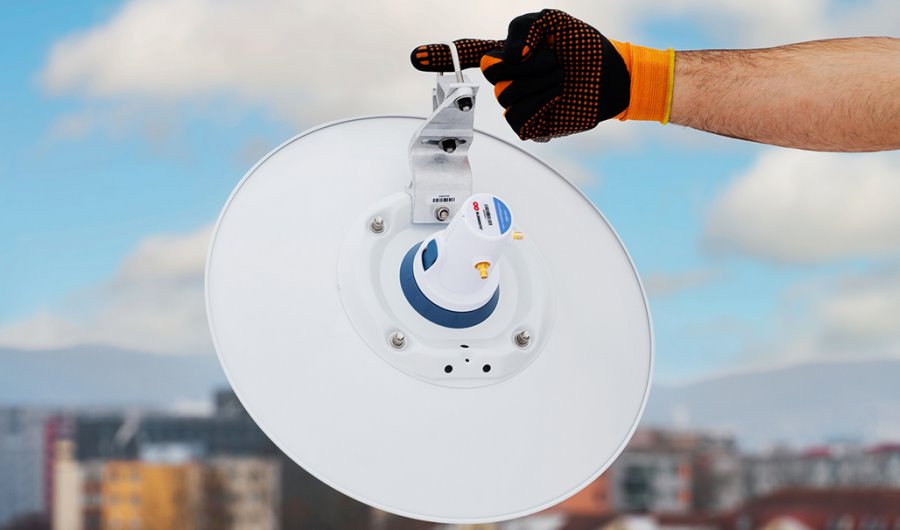

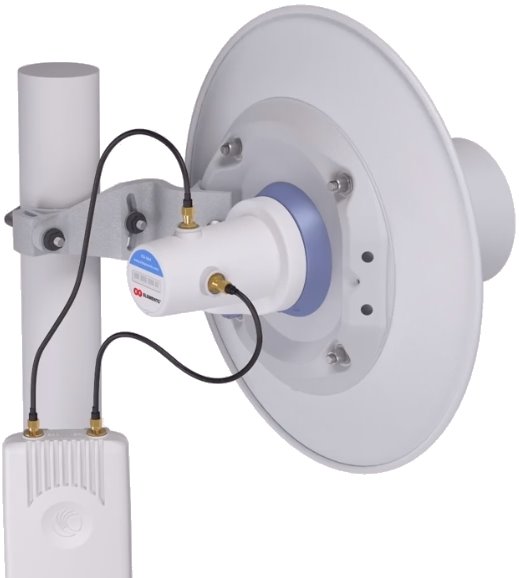

RF elements StarterDish STD-24-UM Directional Parabolic Dish Antenna, 5GHz, 24dBi

Your price incl. VAT (20.0%)

88.66 BGN

✅ In Stock 90+ Бр.

Planned Delivery Date by Courier to you 29-05-2024

Add to Cart

Manufacturer

RF elements

Product number

STD-24-UM

Product Code

RL009.476

Warranty

24 months

Having a question?

You have a choice of 3 variants

STD-27-UM

73.88 BGN excl. VAT

STD-21-UM

64.04 BGN excl. VAT

STD-24-UM

73.88 BGN excl. VAT

• Related products

Ubiquiti IS-5AC - 5 GHz IsoStation AC, airMAX AC, 45°IS-5AC

199.59 BGN excl. VAT

Ubiquiti PS-5AC - airMax AC PrismStation, 5GHz Radio-only, shielded and features airPrism Active RF FilterPS-5AC

466.39 BGN excl. VAT

Mimosa C5x, modular radio for PtP and PtMP (uses with N5-X** antennas)100-00085(C5x)

169.31 BGN excl. VAT

Antenna holder on mast "L", lenght 35cm, height 20cm, d=42mm + 1x U-Bolt 100mmSL1-100-035-020-042

15.96 BGN excl. VAT

RF elements STA-SMA StarterAdapter SMA, 2x RSMA female connectorSTA-SMA

14.77 BGN excl. VAT

•
• Download

Download

https://download.discomp.cz/rfelements/datasheets/Datasheet-STD-24-UM.pdf

Datasheet

Technical parameters

LAN ports

MIMO, SISO

2 x 2

Polarization

VH

Designed for mast diameter [mm]

20 up to 55

Wind load [km/h]

160

Protection class

IP65

Wireless frequency

5 GHz

Elevation beam width (-6dB) [°]

12

Azimuth beam width (-6dB) [°]

12

Antenna type

Directional

RF connectors

IsoStation port, Twist-on port (Mimosa)

Purpose

Outdoor

Antenna gain [dBi]

24

Operating temperature [°C]

-35 up to 55

Weight [kg]

1,5

Width [mm]

391

Height [mm]

391

Depth [mm]

196
