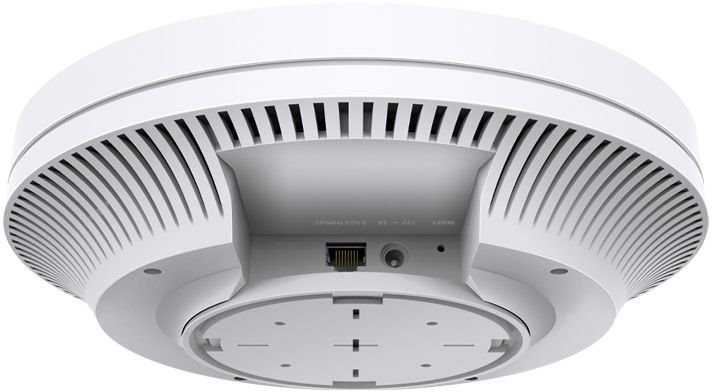

TP-Link EAP620 HD Access Point

TP-Link EAP620 HD Access Point
Your price incl. VAT (20.0%)
309.68 BGN
✅ In Stock < 10 Бр.
Delivery Planned Delivery Date by Courier to you 04-12-2024
TP-Link
Manufacturer
Product number
EAP620 HD
Product Code
RL009.491
Warranty
60 months

Product description

The EAP620 HD is an Access Point from the EAP family from TP-link, with Roaming and the latest technologies such as 802.11ax MU-MIMO support and easily reaches speeds of up to 1201 + 574 Mbps for multiple devices at the same time, thanks to 2x2 MIMO on both radio parts. A Gigabit LAN port with PoE is used for communication to the LAN network and powering. For great coverage, the AP has a total of 4 antennas built-in, 2 of which operate 2.4GHz radio and have a gain of 5dBi and the remaining 2 antennas take care of 5GHz and have a gain of 6dBi. Thanks to these conveniences, the access point has a maximum consumption of 12W and can be powered either directly via a 12V DC power adapter or via 802.3af PoE. Great news is encrypting wireless traffic with WPA3.

TP-Link EAP620 HD

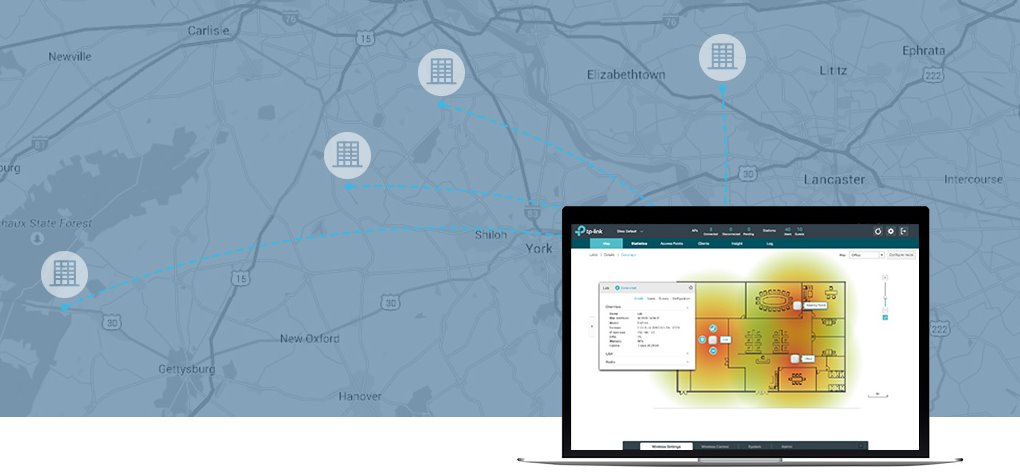

Easy for Centralized Management

Manage and monitor hundreds of EAPs with ease, all from a single location. The TP-Link Omada Controller software provides an intuitive management interface. Control and map out the entire network from any connected PC. There’s no added cost, and no need for special training. Business Wi-Fi management has never been so efficient and cost-effective.

TP-Link EAP620 HD

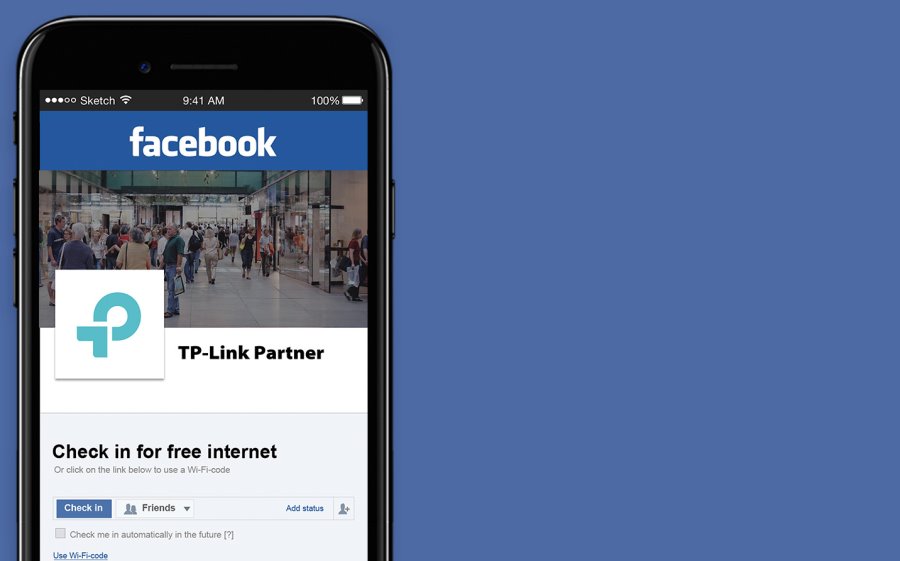

Efficient Guest Authentication with Facebook and SMS Support

Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

TP-Link EAP620 HD

Package contains

  • Unit EAP620 HD
  • Power adapter
  • Ceiling kit

Download

https://download.discomp.cz/tp-link/datasheets/EAP620HD_instal.pdf
Download Installation Guide
https://download.discomp.cz/tp-link/datasheets/EAP_Datasheet.pdf
Download Datasheet

Technical parameters

LAN ports
Power over Ethernet
802.3at
Operating mode
Access Point
Wireless frequency
2.4 + 5 GHz (dual band)
WiFi standards
802.11ax, 802.11ac, 802.11n, 802.11b/g, 802.11a
MU-MIMO
Yes
Transmission speed - 5GHz [Mb/s]
1201
Transmission speed - 2.4GHz [Mb/s]
574
Tx power 2.4GHz [dBm]
25
Tx power 5GHz [dBm]
25
Security
WEP, WPA, WPA2, WPA3
2.4GHz MIMO
2 x 2
5GHz MIMO
2 x 2
Type of antenna
Built-in
Internal antennas
4
Purpose
Indoor
Roaming
Yes
Antenna gain [dBi]
4, 5
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
12
Power via connector/terminal
12V DC
Buttons
Reset
Operating temperature [°C]
0 up to 40
Width [mm]
243
Height [mm]
64
Depth [mm]
243
