Ubiquiti sector antenna AirMax MIMO 15dBi 2,4GHz, 120°, rocket kit
Your price incl. VAT (20.0%)
255.98 BGN
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 04-12-2024
You have a choice of 3 variants
Product description

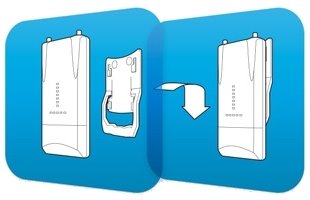

AM-2G15-120 airMAX Sector Antenna is a 15dBi Carrier Class 2x2 MIMO (Dual Polarity) Sector Antenna with 120° beam angle that was designed for 2.4GHz band and for integrate with Rocket M radios (RocketM sold separately).Every airMAX® Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.
Package contains
- Antenna
- (2) RSMA male - RSMA male pigtail
- Holder + screws
Download
Technical parameters
LAN ports
MIMO, SISO
2 x 2
Polarization
VH
VSWR
< 1,5
Cross-Pol Isolation [dB]
28
Wind load [km/h]
160
Rocket kit
Yes
Wireless frequency
2.4 GHz
Elevation beam width (-6dB) [°]
118
Azimuth beam width (-6dB) [°]
123
Antenna type
Sector
RF connectors
(2) RSMA female
Purpose
Outdoor
Antenna gain [dBi]
15
Weight [kg]
4
Width [mm]
145
Height [mm]
700
Depth [mm]
93
