RF elements AS-2-14 - Array Sector Antenna 2.4 GHz, 14 dBi
Planned Delivery Date by Courier to you 01-01-2025
Product description

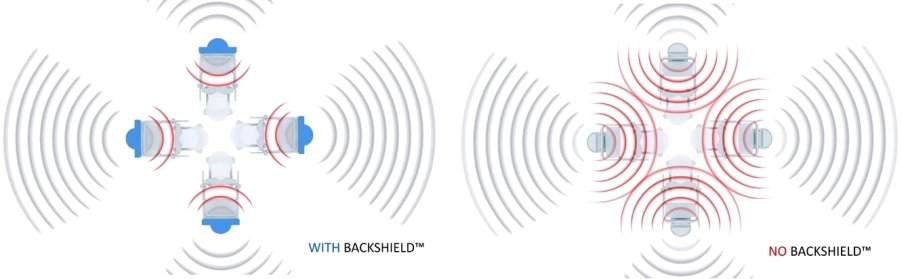

The new Array Sector series are superior patch array antennas optimized for excellent performance in sectorial coverage and dense cluster applications. Sector dualpolarization antenna Array Sector 2-14 from the manufacturer RF Elements operating in the 2.4 GHz band with 14 dBi gain and a beam angle of 112°. Array Sector Antennas have integrated BackShield - patented frequency-selective surfaces attenuating azimuthal side lobes and back radiation significantly improving the co-location capability of Array Sector Antennas.

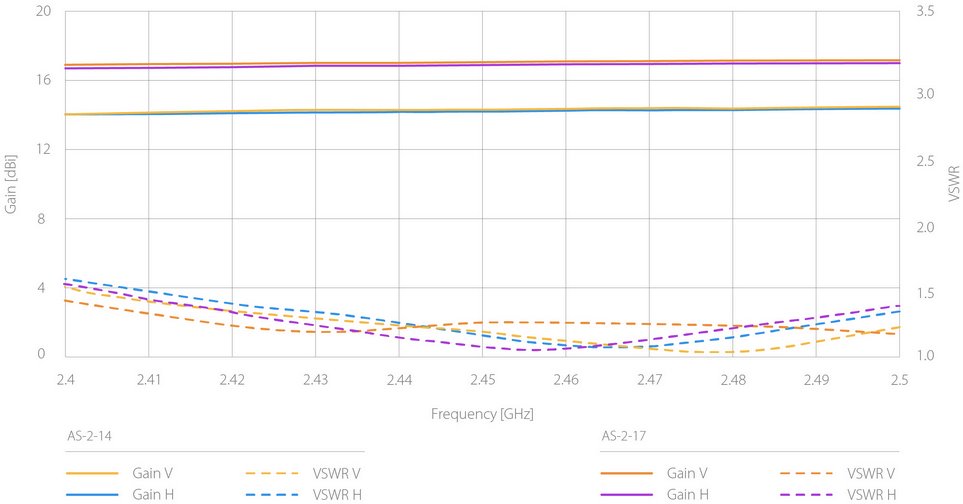

Stable Gain Across The Band
The gain of Array Sector antennas remains very stable across an ultra-wide range of frequencies 2400 - 2484 MHz. VSWR values are excellent across the whole useful spectrum for maximum power delivered from a radio to the antenna.
Wide Platform Compatibility

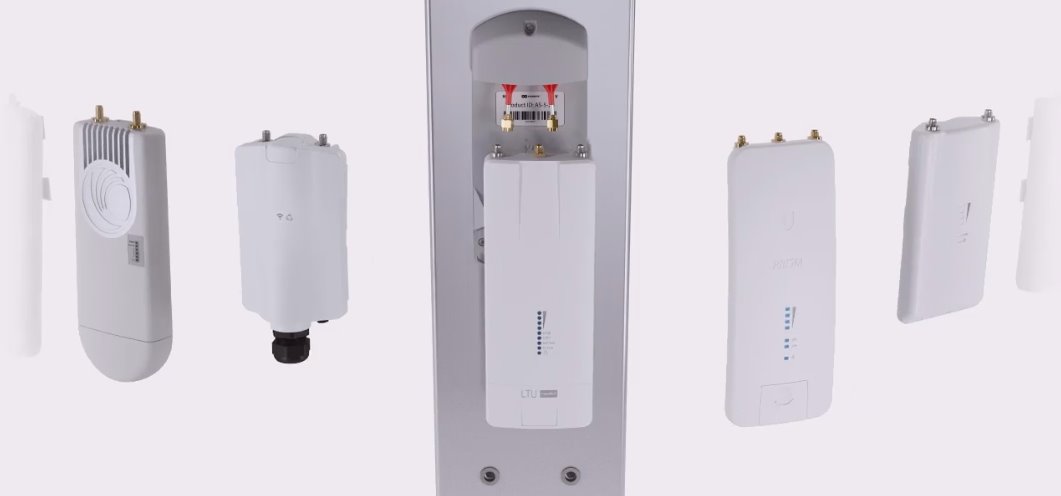

Array Sector Antennas are compatible with all major radios with coaxial connectors (check datasheet for complete list). Array Sector Antennas also feature removable cover protecting the SMA connectors, another feature introduced by RF elements® that became an industry standard.
- RF elements - StationBox S, StationBox S CARRIER CLASS, RockShield
- Ubiquiti - Rocket M2, Rocket 2ac Prism
- MikroTik - BaseBox, NetBox, NetMetal
- TP-Link - Pharos WBS210
- Cambium Networks - ePMP 1000AP a CSM
Package contains
- Antenna
- Holder (mast clamps, screws)
- Plastic unit cover
