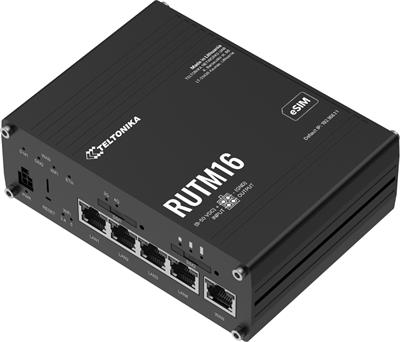

Teltonika RUTM16, Industrial 4G Wi-Fi 5 router

Power over Ethernet

9 .. 50V DC

Protection class

IP30

Design

Industry

Max. WAN speed

1G

Operating mode

Client, AP Router, Access Point, Cellular router

Wireless frequency

2.4 + 5 GHz (dual band), LTE, GNSS, 3G (GSM)

WiFi standards

802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ac - wave2

MU-MIMO

Yes

Transmission speed - 5GHz [Mb/s]

866

Transmission speed - 2.4GHz [Mb/s]

300

Security

WPA, WPA2, WPA3

2.4GHz MIMO

2 x 2

5GHz MIMO

2 x 2

Type of antenna

Detachable

Detachable antennas

5

RF connectors

(3) SMA female, (2) RP-SMA female

Integrated 4G/LTE radio part

Yes

Power type

PoE, 4-pin automotive

4G/LTE bands support

(1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (41) 2500 MHz, (42) 3500 MHz, (43) 3700 MHz, (28) 700 MHz, (32) 1500 MHz

Operating system

RutOS (OpenWrt based Linux OS)

LAN speed

(4) 10/100/1000Mbps + (1) 10/100/1000Mbps LAN/WAN

LAN ports 1G

5

Gigabit LAN

Yes

PoE type

PoE-In (only)

Max. power consumption [W]

18

USB ports 2.0

1

Power via connector/terminal

9 .. 50V DC

Buttons

Reset

Operating temperature [°C]

-40 up to 75

Weight [g]

530

Width [mm]

132

Height [mm]

44

Depth [mm]

104

CPU

MIPS1004Kc

CPU frequency [MHz]

880

SIM slot

Yes

SIM slots quantity

2

USB

Yes

IPv6 support

Yes

Default IP address

192.168.1.1

Internal storage [MB]

256

RAM [MB]

256

Default login and password

admin / (preset password, see label/engraving)

GPS modul

Yes
