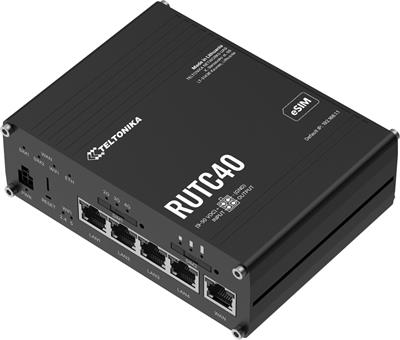

Teltonika RUTC40, Industrial 4G Wi-Fi 6 router

Power over Ethernet

9 .. 50V DC

Protection class

IP30

Design

Industry

Max. WAN speed

1G

Operating mode

AP Router, Cellular router

Wireless frequency

2.4 + 5 GHz (dual band), LTE, 3G (GSM), 2G (GSM), GNSS

WiFi standards

802.11a, 802.11ac, 802.11ax, 802.11b/g, 802.11n

MU-MIMO

Yes

Transmission speed - 5GHz [Mb/s]

2402

Transmission speed - 2.4GHz [Mb/s]

574

Tx power 2.4GHz [dBm]

20

Tx power 5GHz [dBm]

23

Security

WPA, WPA2, WPA3, OWE

2.4GHz MIMO

2 x 2

5GHz MIMO

2 x 2

Type of antenna

Detachable

Detachable antennas

6

RF connectors

(3) SMA female, (3) RP-SMA female

Integrated 4G/LTE radio part

Yes

Power type

PoE, 4-pin automotive

4G/LTE bands support

(1) 2100 MHz, (20) 800 MHz, (28) 700 MHz, (3) 1800 MHz, (38) 2600 MHz, (40) 2300 MHz, (41) 2500 MHz, (5) 850 MHz, (7) 2600 MHz, (8) 900 MHz

Operating system

RutOS (OpenWrt based Linux OS)

LAN speed

(5) 10/100/1000Mbps

LAN ports 1G

5

Gigabit LAN

Yes

PoE type

PoE-In (only)

Max. power consumption [W]

24

USB ports 2.0

1

Power via connector/terminal

9 .. 50V DC

Buttons

Reset

Operating temperature [°C]

-40 up to 65

Weight [g]

480

Width [mm]

130

Height [mm]

43

Depth [mm]

104

CPU

ARM Cortex-A53

CPU frequency [MHz]

1300

SIM slot

Yes

SIM slots quantity

2

USB

Yes

IPv6 support

Yes

Default IP address

192.168.1.1

Internal storage [MB]

8 GB

RAM [MB]

1024

Default login and password

admin / (preset password, see label/engraving)

GPS modul

Yes
