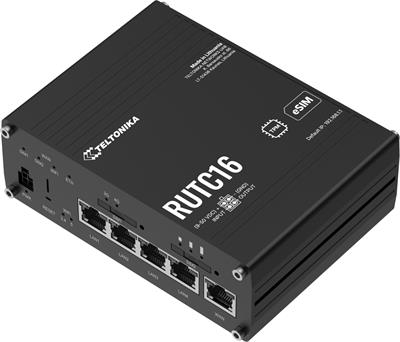

Teltonika RUTC16, Industrial 4G Wi-Fi 6 router, eSIM

Max. WAN speed

1G

Power over Ethernet

9 .. 50V DC

Design

Industry

Operating mode

AP Router

Wireless frequency

2.4 + 5 GHz (dual band), 3G (GSM), LTE, GNSS

WiFi standards

802.11ac, 802.11ax, 802.11b/g, 802.11n

MU-MIMO

Yes

Transmission speed - 2.4GHz [Mb/s]

574

Transmission speed - 5GHz [Mb/s]

2402

Tx power 2.4GHz [dBm]

20

Tx power 5GHz [dBm]

23

Security

WPA, WPA2, WPA3, OWE

2.4GHz MIMO

2 x 2

5GHz MIMO

2 x 2

Type of antenna

Detachable

Detachable antennas

6

RF connectors

(3) SMA female, (3) RP-SMA female

Integrated 4G/LTE radio part

Yes

4G/LTE bands support

(1) 2100 MHz, (12) 700 MHz, (13) 700 MHz, (14) 700 MHz, (17) 700 MHz, (18) 850 MHz, (19) 850 MHz, (2) 1900 MHz, (20) 800 MHz, (25) 1900 MHz, (26) 850 MHz, (28) 700 MHz, (3) 1800 MHz, (38) 2600 MHz, (39) 1900 MHz, (4) 1700 MHz, (40) 2300 MHz, (41) 2500 MHz, (42) 3500 MHz, (43) 3700 MHz, (5) 850 MHz, (66) 1700 MHz, (7) 2600 MHz, (71) 600 MHz, (8) 900 MHz

Power type

PoE, 4-pin automotive

Operating system

RutOS (OpenWrt based Linux OS)

LAN speed

(5) 10/100/1000Mbps

LAN ports 1G

5

Gigabit LAN

Yes

PoE type

PoE-In (only)

Max. power consumption [W]

23

USB ports 2.0

1

Power via connector/terminal

9 .. 50V DC

Buttons

Reset

Operating temperature [°C]

-40 up to 75

Weight [g]

490

Depth [mm]

104

Width [mm]

132

Height [mm]

44

CPU

ARM Cortex-A53

CPU frequency [MHz]

1300

SIM slots quantity

2

SIM slot

Yes

USB

Yes

IPv6 support

Yes

Internal storage [MB]

8 GB

Default IP address

192.168.1.1

RAM [MB]

1024

Default login and password

admin / (preset password, see label/engraving)

GPS modul

Yes
