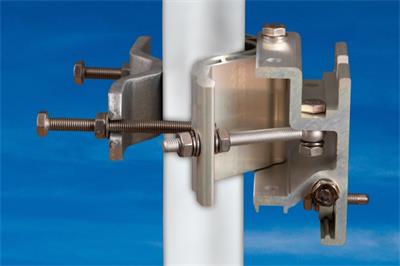

JIROUS JDMW-400 - Precision Antenna Mount

Описание на продукт

New design for easier installation and more stable tightening after alignment.

Application:

• antennas for microwave links up to 90 GHz

Specifications:

• The JDMW-400 mount is designed for antennas requiring easy handling and high stability
• High corrosion resistance
• Fine adjustment of both elevation and azimuth
• Right or left mounting option
• All bolts can be tightened with a single 17 mm wrench
• Easy installation
• All threads in aluminum are reinforced with stainless steel inserts
• Threads are treated with a special anti-seize compound for stainless steel connections

Technical Parameters:

• Antenna diameter: max. 600 mm
• Mounting on mast: O 40 – 120 mm
• Fine azimuth adjustment: ±16°
• Fine elevation adjustment: ±20°
• Weight: 2.4 kg

Easy Installation:

• During installation, all parts stay together — nothing can fall off (not even a screw or nut).

Note:

For easier screw handling and to prevent seizing during potential future disassembly, it is recommended to treat the screws with Grasso HT spray before installation.
