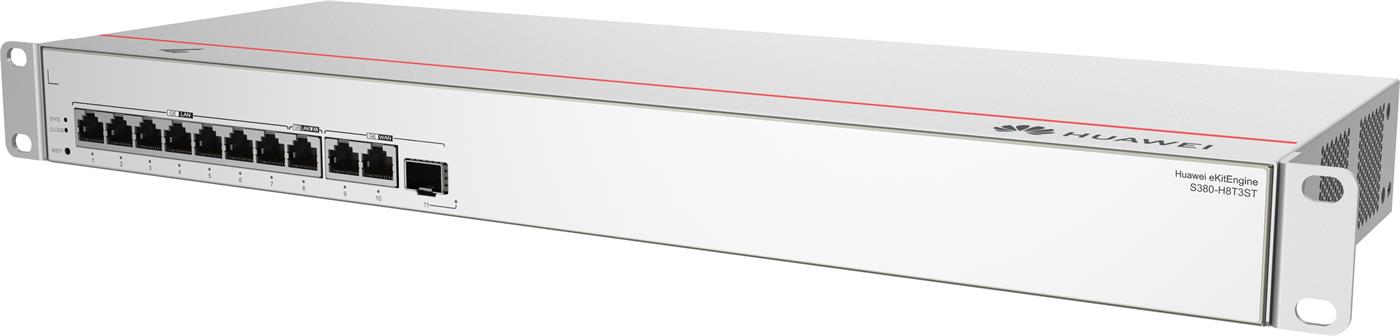

Huawei S380-H8T3ST multi-service router, 3x WAN, 8x LAN

Huawei S380-H8T3ST multi-service router, 3x WAN, 8x LAN
Вашата цена с ДДС (20.0%)
665.83 лв
❌ Артикулът не е наличен. Няма възможност за поръчка.
Delivery Без потвърдена дата на доставка
Производител
Продуктов номер
S380-H8T3ST
Продуктов Код
RL027.670
Гаранция
36 месеца

Описание на продукт

Това е автоматичен превод. Оригиналния текст може да видите тук

Huawei S380-H8T3ST is a multi-service gatewyay that can serve up to 500 users with its performance. It has (2) Gbit Ethernet + (1) SFP WAN ports and (8) Gbit LAN ports for connecting devices in a local network. Rackmount version, which is powered directly from mains with 230V AC voltage. Thanks to the maximum consumption of 11.5W, there is no need for active cooling, therefore the router is fanless.

Huawei eKitEngine S380 series Multi-Service Gateway include various models, such as those with 4 downlink GE electrical ports, 8 downlink GE electrical ports (PoE/non-PoE ports), or GE uplink ports. The router can also serve as a controller for Huawei eKit wireless APs, eliminating the need to purchase and deploy additional devices. With features like easy installation and deployment, as well as flexible Ethernet networking, the products can be widely used for indoor coverage in SME markets such as SOHO enterprise office, economic hotels, factories, primary and secondary education, and building security.

Package contents

  • Device
  • Power cord 230V

Свали

https://download.discomp.cu/Huawei/Manuals/Huawei_eKitEngine_S380_Series_Gateway_installation.pdf
Свали Installation guide
https://download.discomp.cz/Huawei/Datasheets/Huawei_eKitEngine_S380_Series_Gateway.pdf
Свали Datasheet
https://www.discomp.cz/img.asp?attid=5380305
Свали EnlargementOrigSize

Технически параметри

LAN ports
WAN speed
(1) 10/100/1000Mbps + (1) 1000Mbps SFP
Design
Rackmount
Multiple WAN
Yes
Management
Web management, SSH, Mobilní aplikace
Power type
Mains power (230V)
Fans
No
LAN ports
10
LAN speed
(8) 10/100/1000Mbps
Gigabit LAN
Yes
SFP cages
1
Optical interfaces
(1) 1000Mbps
Max. power consumption [W]
11,5
Chassis design
Metal
Power via connector/terminal
230V AC
Buttons
Reset
Operating temperature [°C]
0 up to 40
Width [mm]
442
Height [mm]
44
Depth [mm]
160
Default IP address
192.168.112.1
Default login and password
Is set by the user at the first startup
