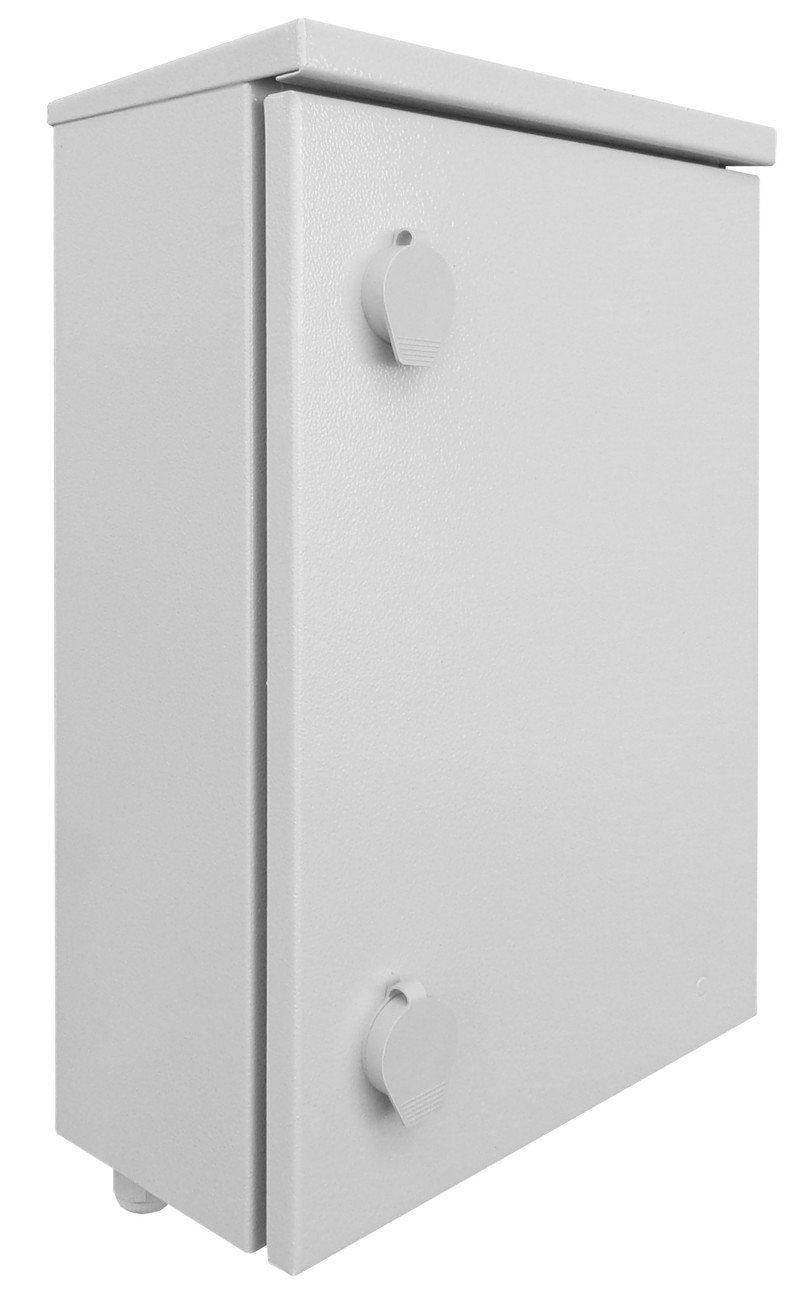

Masterlan outdoor box 300x440x160mm, PON, IP65, IK10

Masterlan outdoor box 300x440x160mm, PON, IP65, IK10
Вашата цена с ДДС (20.0%)
266.59 лв
✅ В наличност < 10 Бр.
Delivery Планирана Дата Доставка на Куриер до Вас 01-01-2025
Masterlan
Производител
Продуктов номер
SZW-N-30/44/16 48J
Продуктов Код
RL027.852
Гаранция
24 месеца

Описание на продукт

Това е автоматичен превод. Оригиналния текст може да видите тук

The outdoor mounting cabinet for PON installations allows convenient connection for up to 48 subscribers. The cabinet is equipped with trays for storing optical splices, 24 positions for SC duplex adapters for subscriber connections, and 1 SC duplex position for connecting an optical splitter. The board for storing optical cables can be removed from the cabinet, making it easy to handle the cables during installation. The bottom part of the cabinet is prepared with 4 cable outlets with PG13.5 glands. Two locks ensure sufficient protection, and the cabinet also boasts IK10 certification against vandalism and IP65 certification against dust and water. The surface is coated with Magnelis in RAL 7035 color, providing adequate anti-corrosion protection.

Thanks to 4 mounting holes on the back, the cabinet can be mounted on a wall or, with the purchase of suitable accessories, also on a pole.

Package Contents

  • Cabinet
  • (3) Optical trays
  • (4) PG13.5 glands
  • (4) Keys

* Optical adapters are not included

Технически параметри

LAN ports
Protection class
IP65
Purpose
Outdoor
Weight [kg]
6
Width [mm]
300
Height [mm]
440
Depth [mm]
160
Color
Grey
