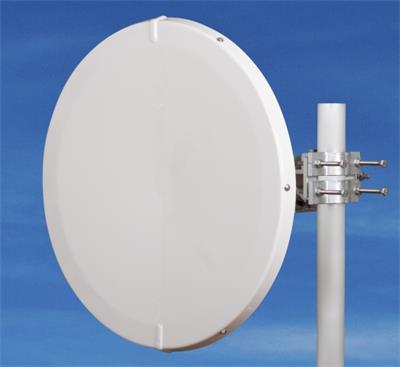

JIROUS JRMC-680-80 - Parabolic Antenna with Mount for 80GHz Band

JIROUS JRMC-680-80 - Parabolic Antenna with Mount for 80GHz Band
Вашата цена с ДДС (20.0%)
822.16 ЛВ / 420.36 EUR
❌ Артикулът не е наличен. Няма възможност за поръчка.
Delivery Без потвърдена дата на доставка
Jirous
Производител
Jirous
Продуктов номер
JRMC-680-80
Продуктов Код
RL028.391
Гаранция
23 месеца

Имате въпрос?
Anti-icing spray WX2100
Anti-icing spray WX2100WX2100
72.27 ЛВ / 36.95 EUR без ДДС
Добави в кошница

Описание на продукт

Това е автоматичен превод. Оригиналния текст може да видите тук

Description:
  • Deep parabolic antenna with high interference resistance and strong mechanical durability
  • High isolation between adjacent links
  • Radome included in the package
  • Heavy-duty JDMW-910 mount with extra fine elevation and azimuth adjustment
  • Supports both right and left mounting
  • Extreme wind resistance


    • Supported Radio Unit Interfaces:
  • Overview of compatible adapters for various units (must be ordered separately):
  • Racom – no adapter required
  • Ceragon, Cambium
  • Aviat
  • Mimosa B-11
  • Siklu
  • Ubiquiti AF-11
  • Remec, Wavelab, Zenith
  • Summit Development
  • Ericsson
  • SIAE
  • Alcoma
  • Other adapters available on request


    • Technical Specifications:
  • Frequency range: 71 – 86 GHz
  • Gain at lower frequency: 50.7 ± 1.4 dBi
  • Gain at upper frequency: 51.6 ± 1.4 dBi
  • Beamwidth (-3 dB): 0.4°
  • Front-to-back ratio: ? 67 dB
  • ETSI EN 302-217-4-2 v1.5.1: Class 3
  • US FCC: Cat. A
  • Polarization: Depends on radio unit installation; linear – horizontal and vertical
  • Reflector: 680 mm diameter – aluminum alloy, powder-coated
  • Radome: UV-stabilized plastic
  • Connection: 3.2 mm waveguide
  • Pole mount: O 40 – 120 mm
  • Operational wind speed: max. 180 km/h
  • Survival wind speed: max. 240 km/h

    • Свали

    https://download.discomp.cz//Jirous/Datasheets/jrmc-680-80_302.pdf
    Свали Datasheet

    Технически параметри

    LAN ports
    Polarization
    V or H
    Designed for mast diameter [mm]
    40 up to 120
    Wind load [km/h]
    240
    Radom
    Yes
    Frequency range [MHz]
    71000 - 86000
    Antenna gain [dBi]
    51
    Material
    Aluminum alloy
    Weight [g]
    5200
    Width [mm]
    800
    Height [mm]
    800
    Depth [mm]
    350
