Huawei S530-48S4XE Gigabit fiber switch, 4x SFP+

Huawei S530-48S4XE Gigabit fiber switch, 4x SFP+
Вашата цена с ДДС (20.0%)
1,629.90 лв
✅ В наличност < 10 Бр.
Delivery Планирана Дата Доставка на Куриер до Вас 01-01-2025
Производител
Продуктов номер
S530-48S4XE
Продуктов Код
RL028.489
Гаранция
36 месеца

Описание на продукт

Това е автоматичен превод. Оригиналния текст може да видите тук

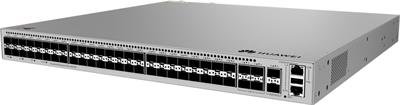

Huawei eKitEngine S530-48S4XE is an advanced L3+ switch that offers 48x SFP and 4x SFP+ ports. On the front side, there are also two SFP+ ports for stacking (configuration available only via CLI), 2x RJ45 for management and console, a USB port, and a reset button. On the back, it is equipped with one power supply and a slot for an additional one.

The eKitEngine S530 switch series are developed on a high-performance, next-generation hardware and software platform. This platform supports simplified operations and maintenance, provides diverse L3 functions, and advanced IPv6 features. Redundant power with hot-swap capability is ensured by a pair of power supplies (one power supply is included in the package, the second can be optionally purchased). The switch also offers two dedicated ports for stacking. These switches can be used in various scenarios where high performance, reliability, stability, and availability are required, such as access or aggregation switches on campuses or as powerful switches in metropolitan networks.

Package Contents

  • Device
  • 230V AC Power Cable
  • (4) Rack Mounting Brackets with screws and nuts
  • Grounding Cable
  • (4) Rubber Self-adhesive Pads

Свали

https://download.discomp.cz/Huawei/Datasheets/Huawei_ekitEngine_S530_Series_Switch.pdf
Свали Datasheet

Технически параметри

LAN ports
Packet forwarding rate [Mpps]
168
Design
Rackmount
Switchning capacity [Gbps]
224
MAC address table
32000
Web management
Yes
Management
Web management, eKit cloud / eKit app
Features
L3
Power type
Mains power (230V)
Fans
Yes
Management LAN
Yes
SFP cages
24
SFP+ cages
4
Optical interfaces
(24) 1Gbps + (4) 10Gbps
Redundant power supply
Yes
Max. power consumption [W]
130
Serial port
RJ45
Chassis design
Metal
USB ports 2.0
1
Power via connector/terminal
230V AC
Buttons
Reset
Operating temperature [°C]
-5 up to 50
Height [mm]
44
Depth [mm]
420
Width [mm]
442
