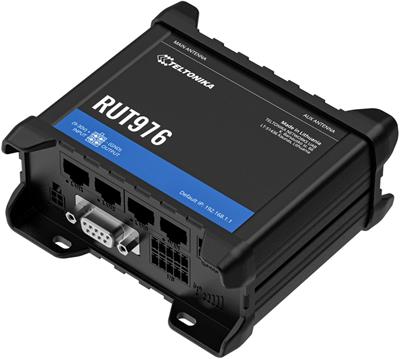

Teltonika RUT976 RedCap 5G Router
Вашата цена с ДДС (20.0%)
660.06 лв
Поръчан за склад
Планирана Дата Доставка на Куриер до Вас 22-01-2025
Описание на продукт
Това е автоматичен превод. Оригиналния текст може да видите тукThe RUT976 is an industrial Redcap 5G router supporting SA architecture, carving a balanced niche between 4G and full-capaci- ty 5G. This 5G router can wirelessly support up to 100 end devices and features the low latency of 5G—at affordable pricing. In case of limited 5G coverage, the RUT976 is backward compatible with 4G LTE Cat 4. It also boasts dual SIM slots with auto-failover, Wi-Fi, GNSS, a wide range of interfaces, including four 10/100 RJ45 slots, RS232, RS485, and multiple I/Os, and numerous other brilliant features for expert professional deployment.
Key features
- REDCAP 5G - Low latency, high capacity, affordable pricing
- FUTURE-PROOFING - Backward compatible with 4G LTE Cat 4
- DUAL-SIM - With auto-failover, backup WAN and other switching scenarios
- MULTIPLE INTERFACES - Ethernet, RS232, RS485, & multiple I/Os
Package contents
- RUT976 router
- 9 W PSU
- 2x 5G Mobile antennas (swivel, SMA male)
- 2x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
- GNSS antenna (adhesive, SMA male, 3 m cable)
- RS485 connector block
- I/O connector block
- Ethernet cable (1.5 m)
- SIM Adapter kit
- QSG (Quick Start Guide)
- Packaging box
Свали
Технически параметри
LAN ports
Power over Ethernet
9 .. 30V DC
Design
Desktop, DIN rail, On the wall
Supported VPN
GRE, IPSec, L2TP, OpenVPN, PPTP, Tinc, WireGuard, ZeroTier
Operating mode
Access Point, AP Router, Client, Cellular router
Management
SSH, Teltonika RMS, Web management
Wireless frequency
2.4 GHz, 4G (GSM), 5G (GSM), LTE
WiFi standards
802.11b/g, 802.11n
Transmission speed - 2.4GHz [Mb/s]
300
Security
WPA, WPA2, WPA3
Type of antenna
Detachable
Detachable antennas
5
RF connectors
(2) RSMA female, (3) SMA female
Antenna gain [dBi]
20
Integrated 4G/LTE radio part
Yes
Power type
DC connector, PoE
4G/LTE bands support
(1) 2100 MHz, (12) 700 MHz, (13) 700 MHz, (17) 700 MHz, (18) 850 MHz, (19) 850 MHz, (2) 1900 MHz, (20) 800 MHz, (25) 1900 MHz, (26) 850 MHz, (28) 700 MHz, (3) 1800 MHz, (4) 1700 MHz, (5) 850 MHz, (66) 1700 MHz, (7) 2600 MHz, (71) 600 MHz, (8) 900 MHz
5G bands support
(n1) 2100 MHz, (n20) 800 MHz, (n28) 700 MHz, (n3) 1800 MHz, (n38) 2600 MHz, (n40) 2300 MHz, (n41) 2500 MHz, (n5) 850 MHz, (n66) 1700 MHz, (n7) 2600 MHz, (n77) 3700 MHz, (n78) 3500 MHz, (n79) 4700 MHz, (n8) 900 MHz
Operating system
RutOS (OpenWrt based Linux OS)
LAN ports
4
LAN speed
(3) 10/100Mbps + (1) 10/100Mbps WAN
Max. power consumption [W]
7
Serial port
RS-232
Power via connector/terminal
9 .. 30V DC
Buttons
Reset
Operating temperature [°C]
-40 up to 75
Weight [g]
295
Width [mm]
110
Height [mm]
50
Depth [mm]
100
CPU
Mediatek, 580 Mhz, MIPS 24KEc
CPU frequency [MHz]
580
SIM slot
Yes
SIM slots quantity
2
USB
Yes
IPv6 support
Yes
Default IP address
192.168.1.1
Internal storage [MB]
16
RAM [MB]
128
Default login and password
admin / (preset password, see label/engraving)
GPS modul
Yes
