Ubiquiti airFiber Dish 23dBi, 5GHz, Slant 45

Product description

The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings. Housed in a compact form factor (378-mm diameter size), the AF-5G23-S45 offers 23dBi of gain and features the following advantages:

• Low sidelobes reduce interference from other transmitters in the area.
• High isolation enhances performance for co-location in tower-mounted installations.
• The low-profile design with integrated radome reduces wind-loading.

The airFiber X supports ± 45° slant polarization for improved noise immunity and Signal-to-Noise Ratio (SNR). The airFiber X antennas are purpose-built with 45° slant polarity for seamless integration with the airFiber X.

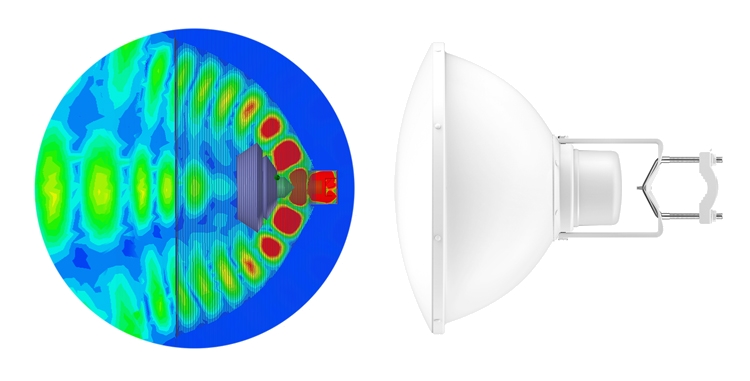

The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high-capacity, multipoint networks.

Package contains

• Antenna
• Protective shroud
• (2) RSMA male - RSMA male pigtail

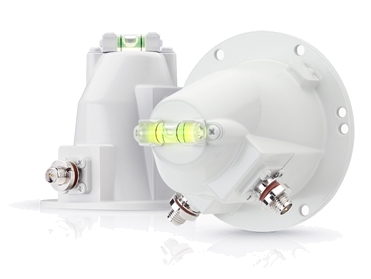

• Mount bracket + screws

Download
