Ubiquiti AirFiber AF-5XHD, 1Gbps+, 4.8 - 6.2GHz (price per piece)
Your price incl. VAT (20.0%)
830.23 BGN
Ordered for stock
No confirmed delivery date
96.06 BGN excl. VAT
325.07 BGN excl. VAT
Product description

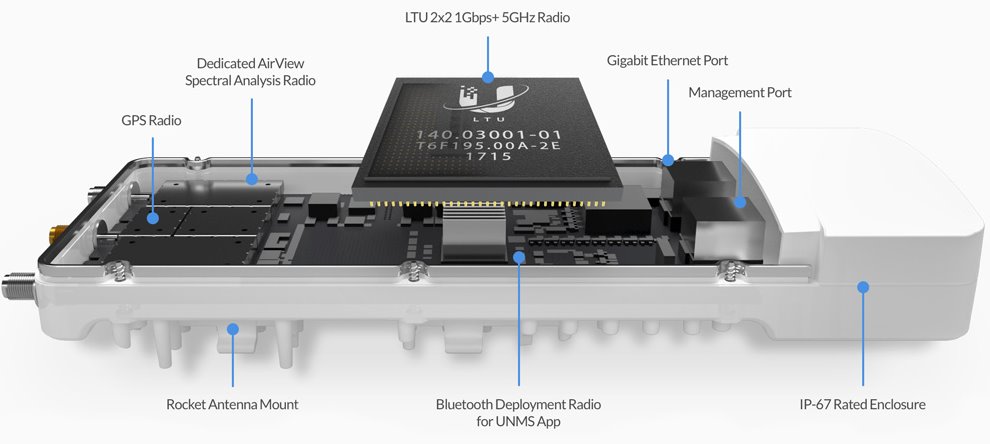

Complete Custom Hardware for the WISP, right down to the Silicon
Our core communications processing engine surpasses all of the limitations inherent to generic Wi-Fi chips.
Game-Changing LTU Technology

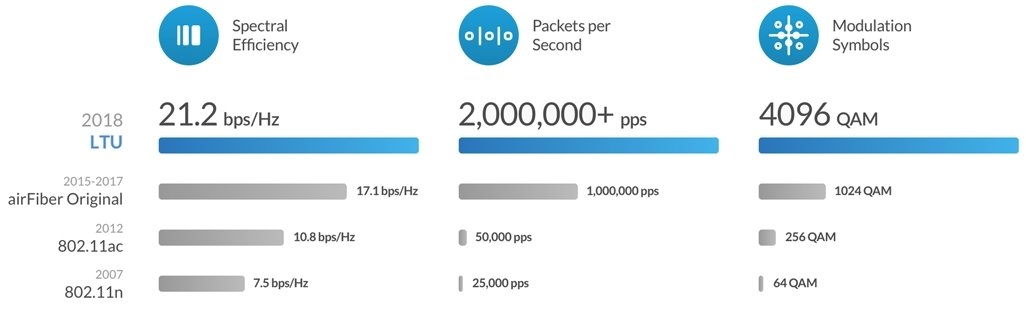

Spectral Efficiency Comparison of 802.11n, 802.11ac, airFiber Original, and LTU by year.

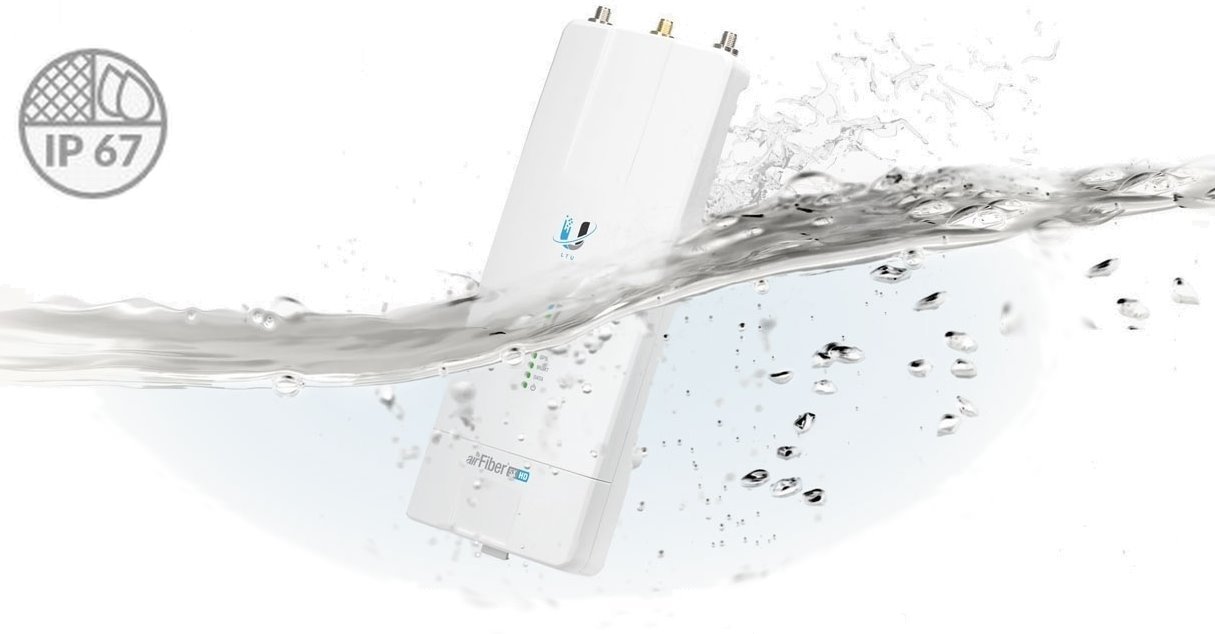

IP-67 Durability
AirFiber 5XHD is Water Resistant and Perfect for any Weather Conditions.

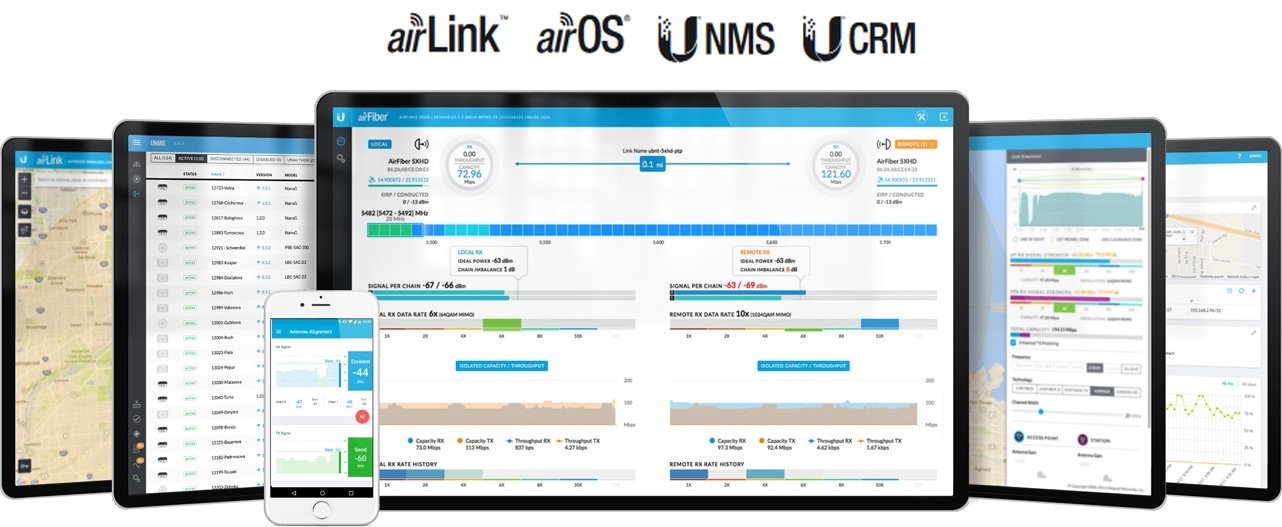

Industry Leading Complete Software Suite
AF-5XHD is a proprietary, pure ptp solution that is not compatible with any LTU ptmp product from Ubiquiti.
Package contains
- Device
- GPS holder + GPS antenna
- PoE power adapter 24V/1A
- Power cord
- Metal strap + 2 zip ties
- Universal Bracket
Download
Technical parameters
LAN ports
Power over Ethernet
24 .. 50V DC
Sensitivity [dBm]
-90
Frequency range [MHz]
4800 - 6200
Maximum modulation
1024 QAM
Operating mode
Access Point, Client
Wireless frequency
5 GHz
Transmission speed - 5GHz [Mb/s]
1000
Tx power 5GHz [dBm]
29
Security
WPA2 AES
5GHz MIMO
2 x 2
Type of antenna
Detachable
Detachable antennas
2
RF connectors
(2) RSMA female, (1) SMA female
Purpose
Outdoor
LAN ports
2
LAN speed
(1) 10/100/1000Mbps + (1) 10/100/1000Mbps (managment)
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
12
Buttons
Reset
Operating temperature [°C]
-40 up to 55
Weight [g]
350
Width [mm]
82
Height [mm]
224
Depth [mm]
48
CPU
airFiber LTU IC
IPv6 support
Transparent (bridge mode)
Default IP address
192.168.1.20
Default login and password
ubnt / ubnt
GPS modul
Yes
