RF elements directional antenna UltraHorn™ CC 5-24, 5GHz, 24dBi

RF elements directional antenna UltraHorn™ CC 5-24, 5GHz, 24dBi
Your price incl. VAT (20.0%)
820.88 BGN
✅ In Stock 10+ Бр.
Delivery Planned Delivery Date by Courier to you 13-11-2024
RF elements
Manufacturer
Product number
UH-CC-5-24
Product Code
RL005.715
Warranty
24 months

Product description

UH-CC-5-24 UltraHorn TP antenna is highly directional (11° beam angle) scalar horn antennas for point-to-point connections in 5GHz band and 24 dBi antenna gain. They offer all the benefits of scalar horns: ultra noise rejection, lossless connection of radio and symmetrical beam with no side lobes. These unique radiation properties make them excellent antennas for long links in environments with a high level of noise.

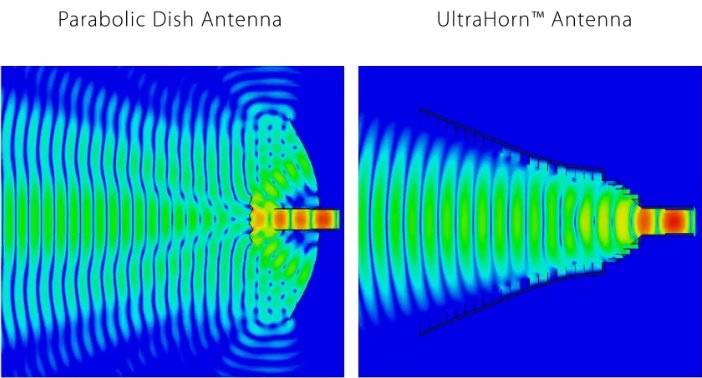

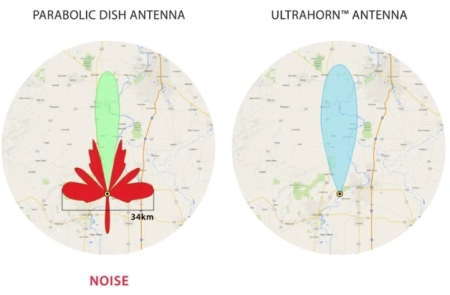

Radiation Patterns

Because horn is naturally directive antenna, it focuses the radiated fields into a single main beam without any side lobes. Commonly used antenna types, such as parabolic dish, always spills some of the energy over the aperture edge causing unwanted side lobes and interference issues.

UH-CC-5-24

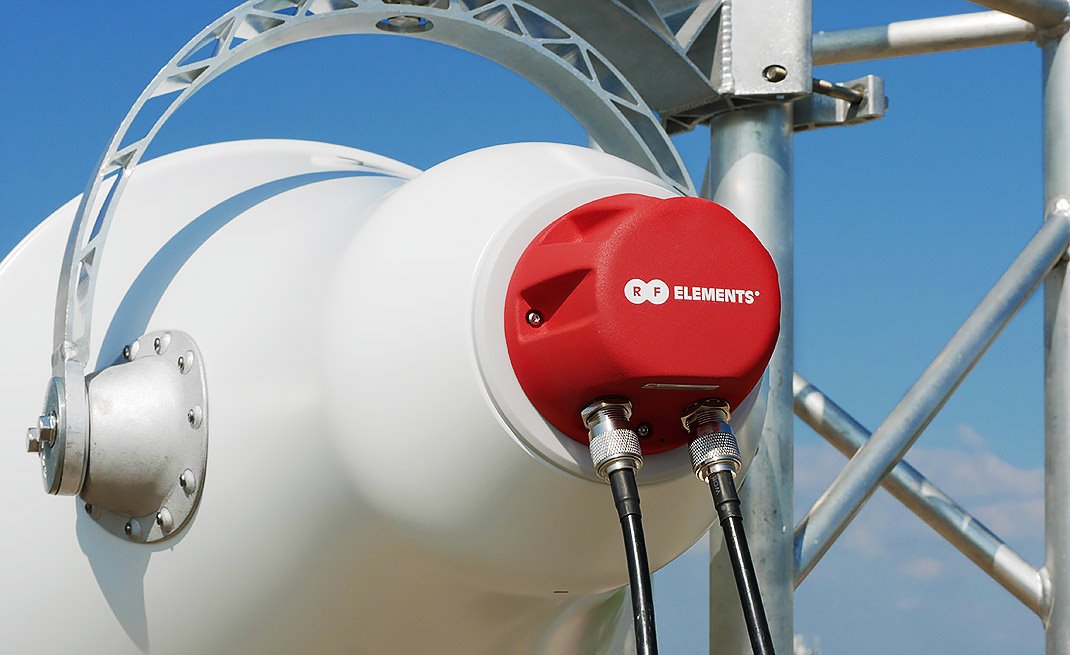

N-type Connectors

UltraHorn Carrier Class features N-type female connectors, enabling connection with wide range of radios, such as Mimosa, Cambium NetworksTM PMP450, LigoWave, and many others.

UH-CC-5-24

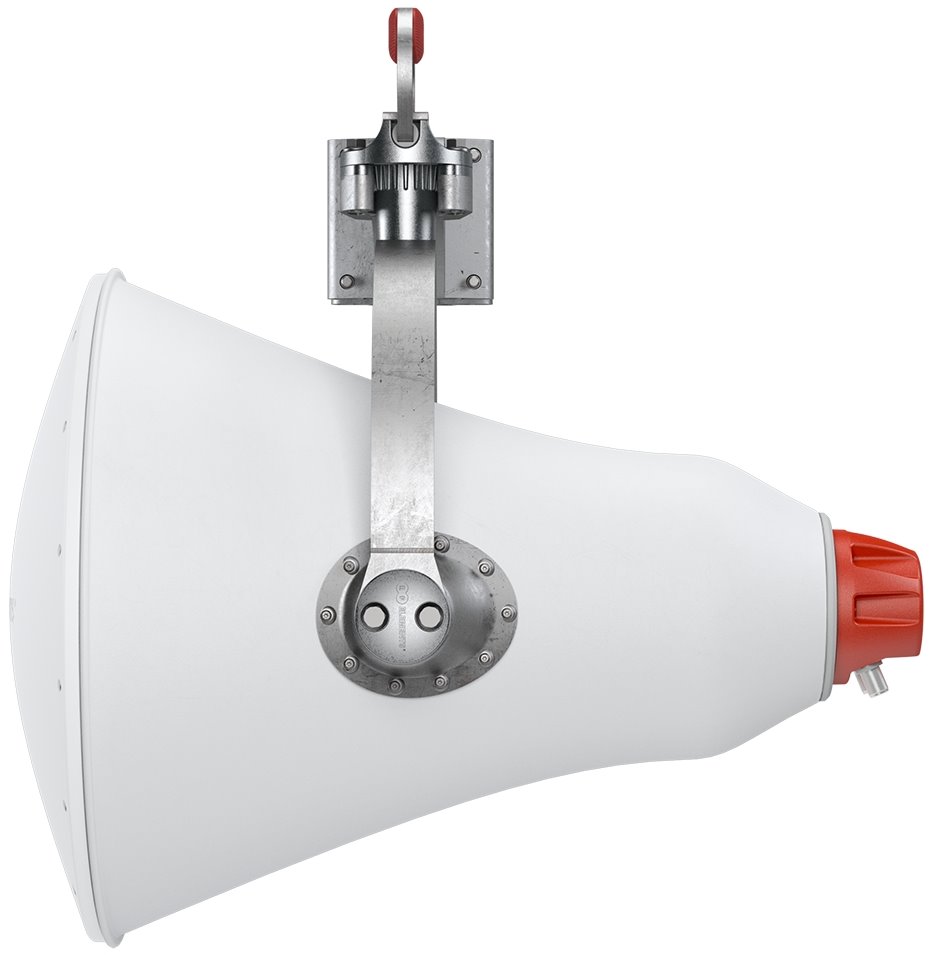

No Accessories Needed

UltraHorn CC comes as a thorough antenna solution for a high performance wireless link. There is no need to spend extra money on radomes or shrouds. Any additional shielding only burdens the tower and your budget. UltraHorn CC has everything that is needed.

UH-CC-5-24

Package contains

  • UltraHorn antenna
  • Precision holder

Download

https://download.discomp.cz/RFelements/Datasheets/UH-CC-5-24_Datasheet.pdf
Download Datasheet

Technical parameters

LAN ports
MIMO, SISO
2 x 2
Polarization
VH
Antenna design
Horn
VSWR
< 1,8
F/B ratio [dB]
40
Designed for mast diameter [mm]
30 up to 80
Wind load [km/h]
160
Wireless frequency
5 GHz
Elevation beam width (-6dB) [°]
11
Azimuth beam width (-6dB) [°]
11
Antenna type
Directional
RF connectors
(2) N female
Purpose
Outdoor
Antenna gain [dBi]
24
Material
Aluminum, Stainless steel, ABS plastic, Polycarbonate, Polypropylene
Width [mm]
572
Height [mm]
639
Depth [mm]
615
