MikroTik wAPR-2nD&EC200A-EU wAP LTE Kit 2024
Your price incl. VAT (20.0%)
179.60 BGN
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 01-01-2025
Product description

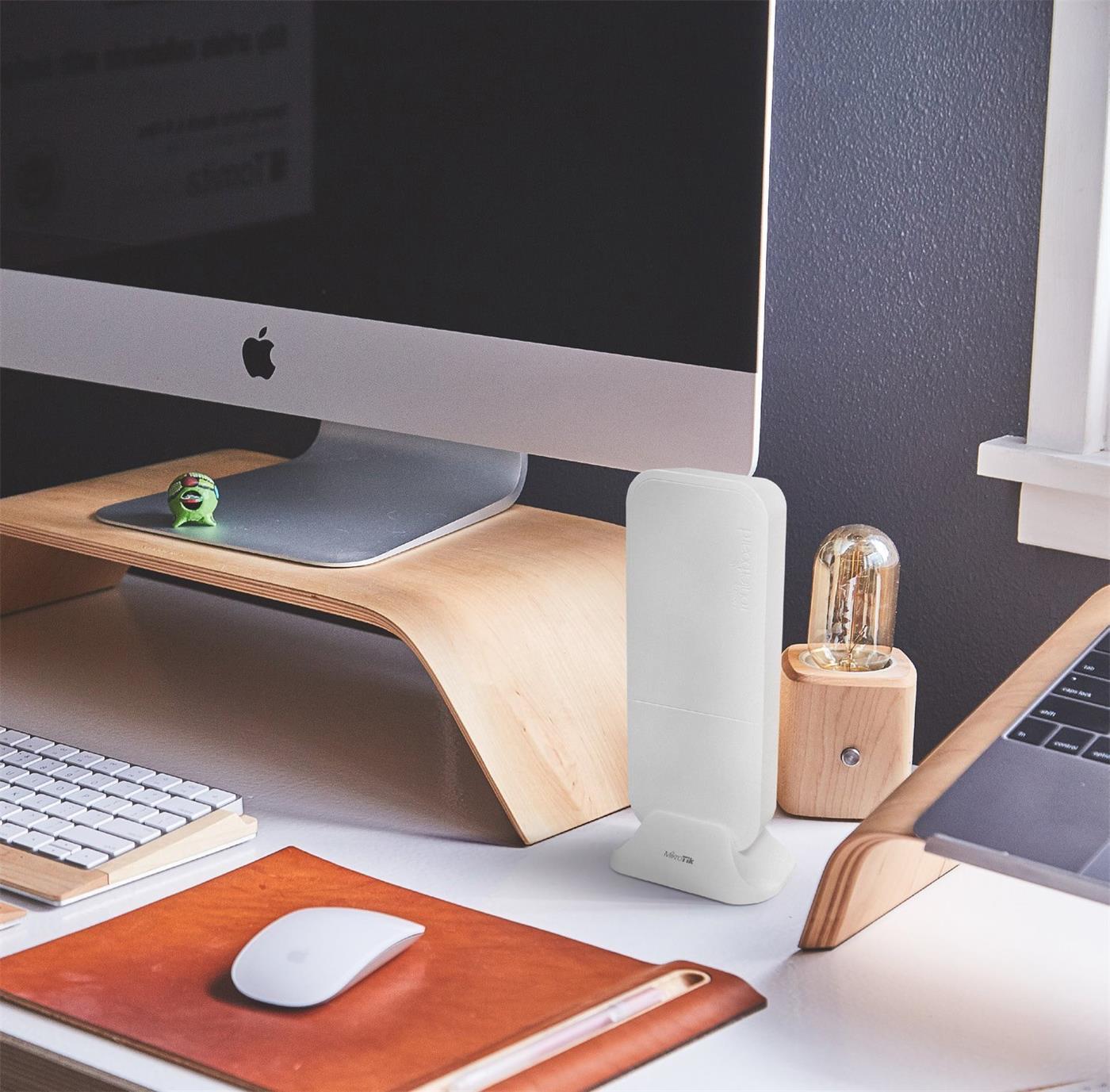

A new revision of the successful wAP LTE Kit model. It is a small access point in an outdoor design with the option of placing it indoors using the stand included in the package. Inside we find a built-in miniPCI-e LTE card EC200A-EU which supports 2G, 3G and 4G (LTE) networks. Furthermore, the wAP is also equipped with a built-in 4 dBi GSM antenna for connecting to a mobile operator. There is a 2.4 GHz radio part with a transmission speed of up to 300 Mbps for connecting home devices, and you can use one 10/100 Mbps LAN port with PoE support for cable devices.
Key Features
- 2.4 GHz Wi-Fi (802.11b/g/n) - up to 300 Mbps
- 4G LTE Category 4 with 150 Mbps / 50 Mbps download and upload speeds
- (1) Nano SIM slot
- (1) 10/100 Mbps LAN
- Wide power options: DC jack, PoE, Automotive connector (4-pin)
- Support of 2G, 3G and 4G LTE networks
- Support of LTE bands: 1, 3, 5, 7, 8, 20, 28, 38, 40, 41
Package contents
- Device with LTE card
- Power adapter 24V / 0.8A
- PoE injector
- Set of screws and dowels
- Wall/ceiling mounting kit
- Table stand
- Automotive 4-pin power cable
Download
Technical parameters
LAN ports
Power over Ethernet
9 .. 30V DC
Design
Desktop, On the mast, On the wall, Ceiling, Outdoor
Operating mode
Access Point, AP Router, Client, Client Router (wisp), Cellular router
Wireless frequency
2.4 GHz, LTE
WiFi standards
802.11b/g, 802.11n
Transmission speed - 2.4GHz [Mb/s]
300
Tx power 2.4GHz [dBm]
25
2.4GHz MIMO
1 x 1 SISO
Type of antenna
Built-in
Purpose
Outdoor
Antenna gain [dBi]
2
Integrated 4G/LTE radio part
Yes
Power type
4-pin automotive, DC connector, PoE
4G/LTE bands support
(1) 2100 MHz, (20) 800 MHz, (28) 700 MHz, (3) 1800 MHz, (38) 2600 MHz, (40) 2300 MHz, (41) 2500 MHz, (5) 850 MHz, (7) 2600 MHz, (8) 900 MHz
Operating system
RouterOS - L4
LAN ports
1
LAN speed
(1) 10/100Mbps
PoE type
PoE-In (only)
Max. power consumption [W]
7
Power via connector/terminal
9 .. 30V DC
Operating temperature [°C]
-40 up to 60
Width [mm]
85
Height [mm]
185
Depth [mm]
30
CPU
QCA9531
CPU cores
1
SIM slot
Yes
SIM slots quantity
1
IPv6 support
Yes
Default IP address
192.168.88.1
Internal storage [MB]
16
RAM [MB]
64
Default login and password
admin / -
