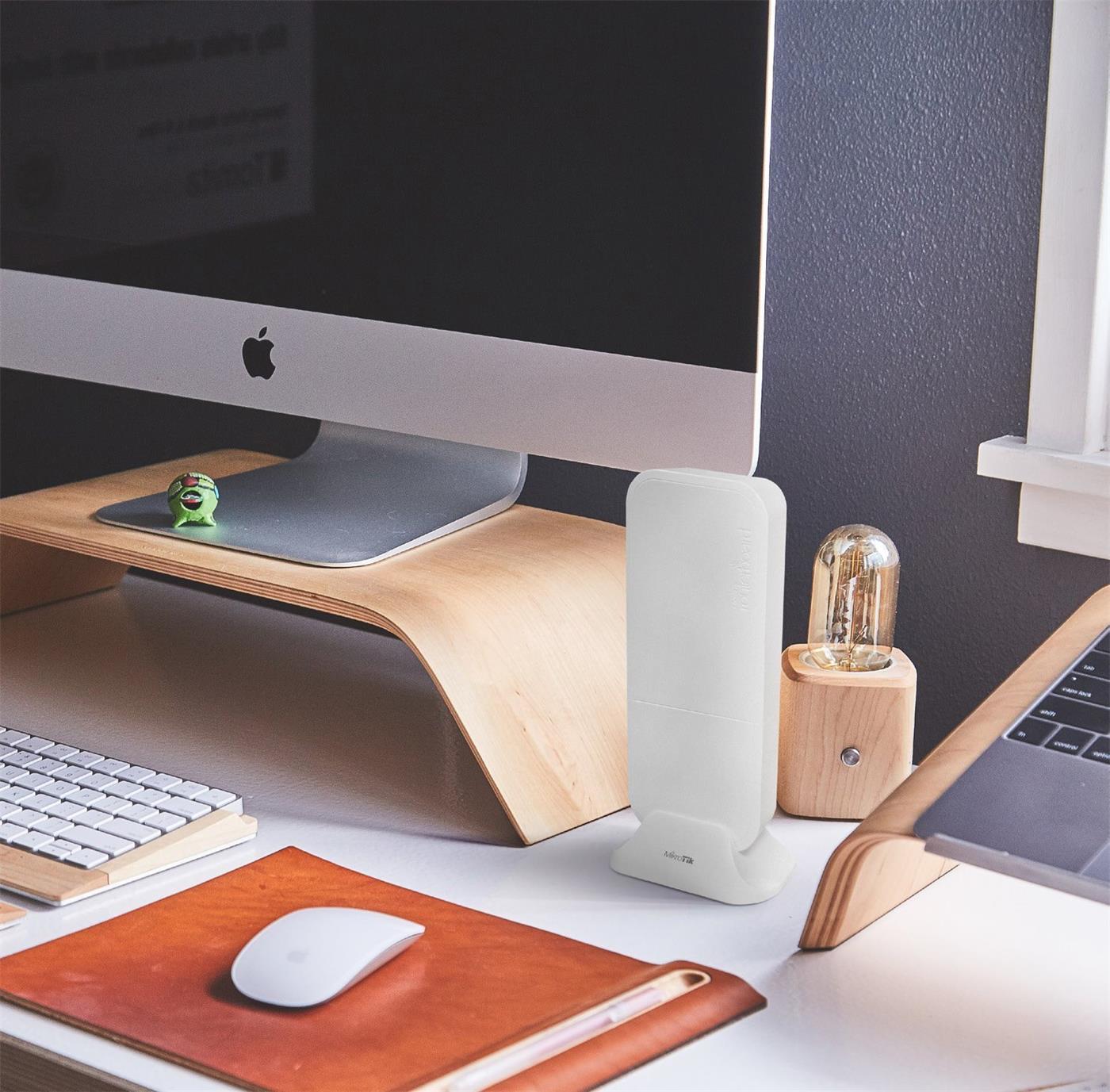

MikroTik wAPR-2nD&EC200A-EU wAP LTE Kit 2024

Power over Ethernet

9 .. 30V DC

Design

Desktop, On the mast, On the wall, Ceiling, Outdoor

Operating mode

3G/4G Router, Access Point, AP Router, Client, Client Router (wisp)

Wireless frequency

2.4 GHz, LTE

WiFi standards

802.11b/g, 802.11n

Transmission speed - 2.4GHz [Mb/s]

300

Tx power 2.4GHz [dBm]

25

2.4GHz MIMO

1 x 1 SISO

Type of antenna

Built-in

Purpose

Outdoor

Antenna gain [dBi]

2

Integrated 4G/LTE radio part

Yes

Power type

4-pin automotive, DC connector, PoE

4G/LTE bands support

(1) 2100 MHz, (20) 800 MHz, (28) 700 MHz, (3) 1800 MHz, (38) 2600 MHz, (40) 2300 MHz, (41) 2500 MHz, (5) 850 MHz, (7) 2600 MHz, (8) 900 MHz

Operating system

RouterOS - L4

LAN ports

1

LAN speed

(1) 10/100Mbps

PoE type

PoE-In (only)

Max. power consumption [W]

7

Power via connector/terminal

9 .. 30V DC

Operating temperature [°C]

-40 up to 60

Width [mm]

85

Height [mm]

185

Depth [mm]

30

CPU

QCA9531

CPU cores

1

SIM slot

Yes

SIM slots quantity

1

IPv6 support

Yes

Default IP address

192.168.88.1

Internal storage [MB]

16

RAM [MB]

64

Default login and password

admin / -
