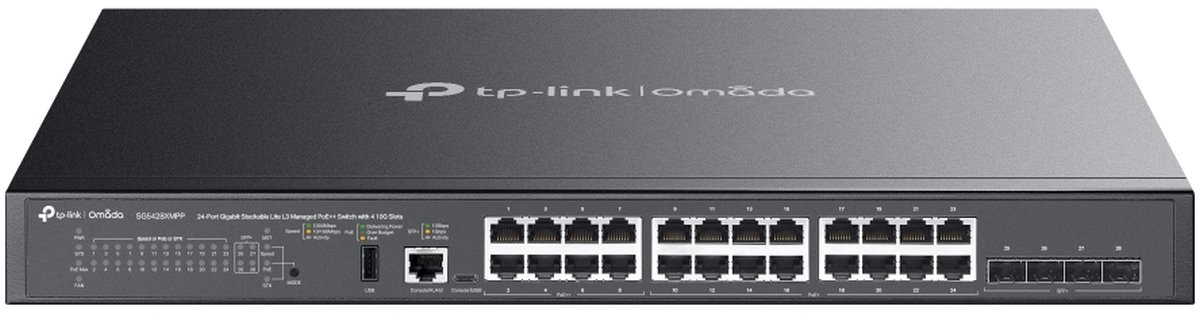

TP-Link SG5428XMPP - Omada 24-port Gigabit stackable lite L3 managed PoE++ switch with 4× 10G SFP+ slots

Product description

Omada SG5428XMPP is a reliable PoE++ switch that offers L3 routing, ultra fast 10Gbps Ethernet connectivity and stacking capabilities. The device has 24 Gigabit RJ45 ports (8× PoE++, 16× PoE+), 4× 10Gbps SFP+ slots, physical stacking capability and centralized management. With integrated security features and extensive management capabilities the SG5428XMPP provides a reliable networking solution for small and medium-sized businesses and Internet Service Providers (ISPs).

Key features

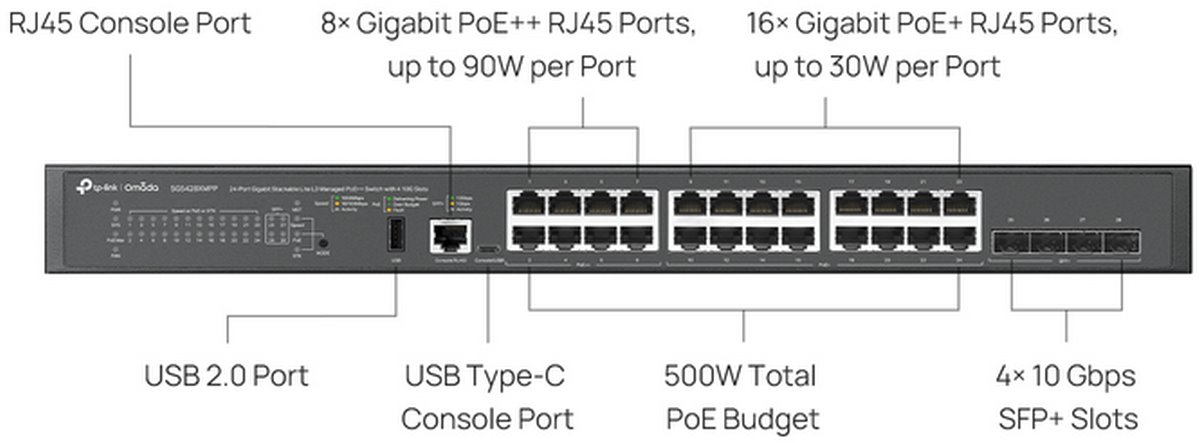

• (8) Gigabit 802.3af/at/bt PoE++ ports (Max 90W per port)
• (16) Gigabit 802.3af/at PoE+ ports (Max 30W per port)
• Up to 500W total PoE budget
• 4× 10 Gbps SFP+ slots
• Switching capacity 128 Gb/s
• Physical stacking for up to 4 units
• L3 function: RIP, OSPF, static routing and DHCP server/relay
• Security features: ACL, port security, DoS attack protection, 802.1X
• ERPS supports protection and fast recovery in a ring topology
• Centralized cloud management through Omada SDN
• Management via web, CLI, SNMP and RMON

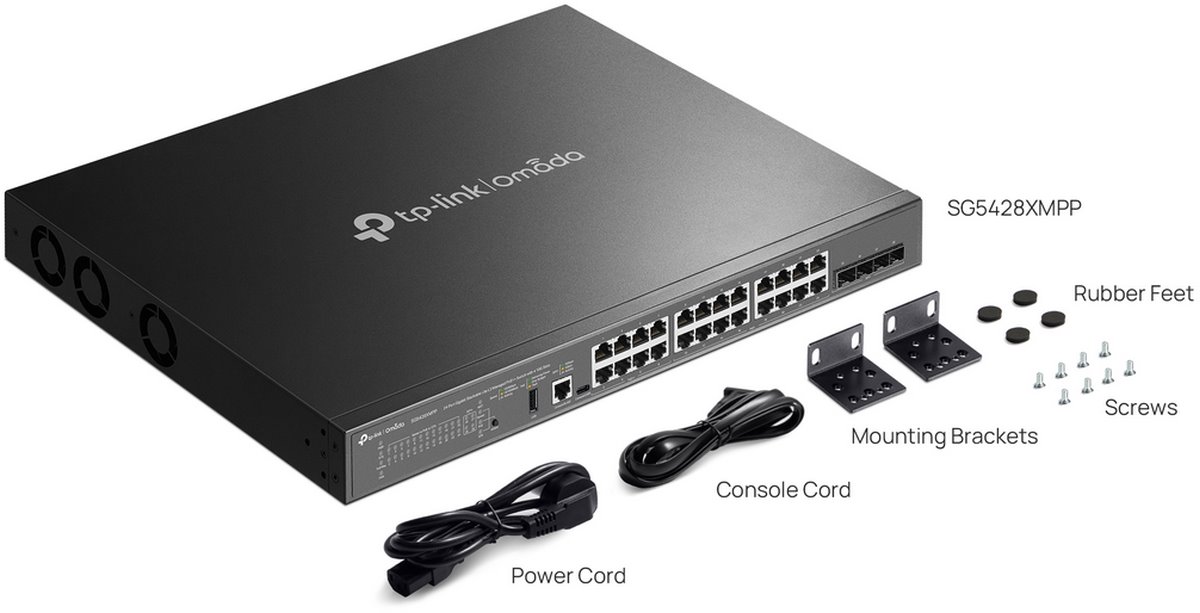

Package contents

Download

https://download.discomp.cz/TP-LINK/Datasheets/SG5428XMPP(UN)_1.0_datasheet.pdf

Datasheet

https://download.discomp.cz/TP-LINK/QSG/SG5428XMPP_IG.pdf

Installation Guide
