TP-Link ES228GMP - Omada Easy PoE switch, 24-Port PoE+
Your price incl. VAT (20.0%)
632.50 BGN
Ordered for stock
No confirmed delivery date
192.49 BGN excl. VAT
3811.95 BGN excl. VAT
Product description
Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.
Key features

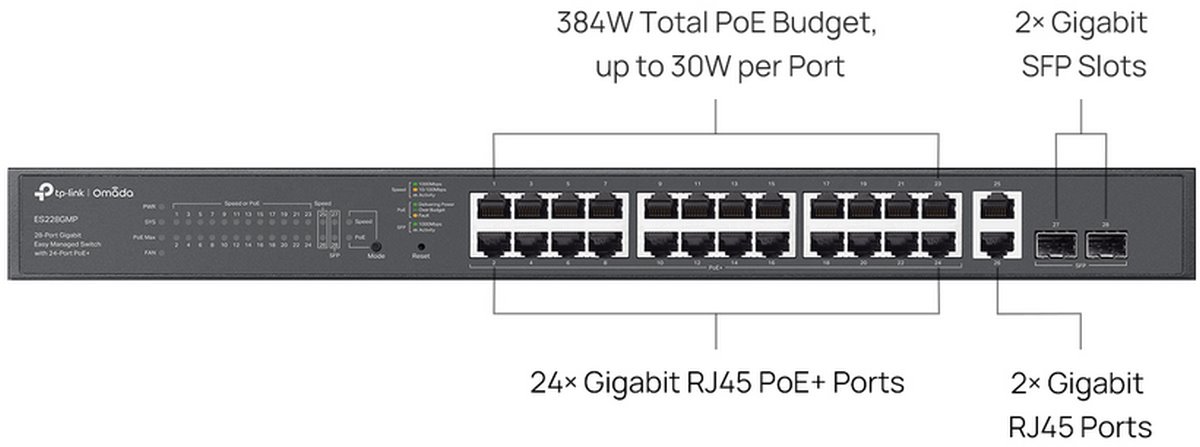

- (26) 10/100/1000Mbps RJ45 ports (24× 802.3af/at-compliant PoE+)
- (2) Gigabit SFP port
- 384W Power Budget, with up to 30W for each PoE port
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app
- Up to 250m PoE with 10Mbit speed, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Durable metal casing and rack-mountable design

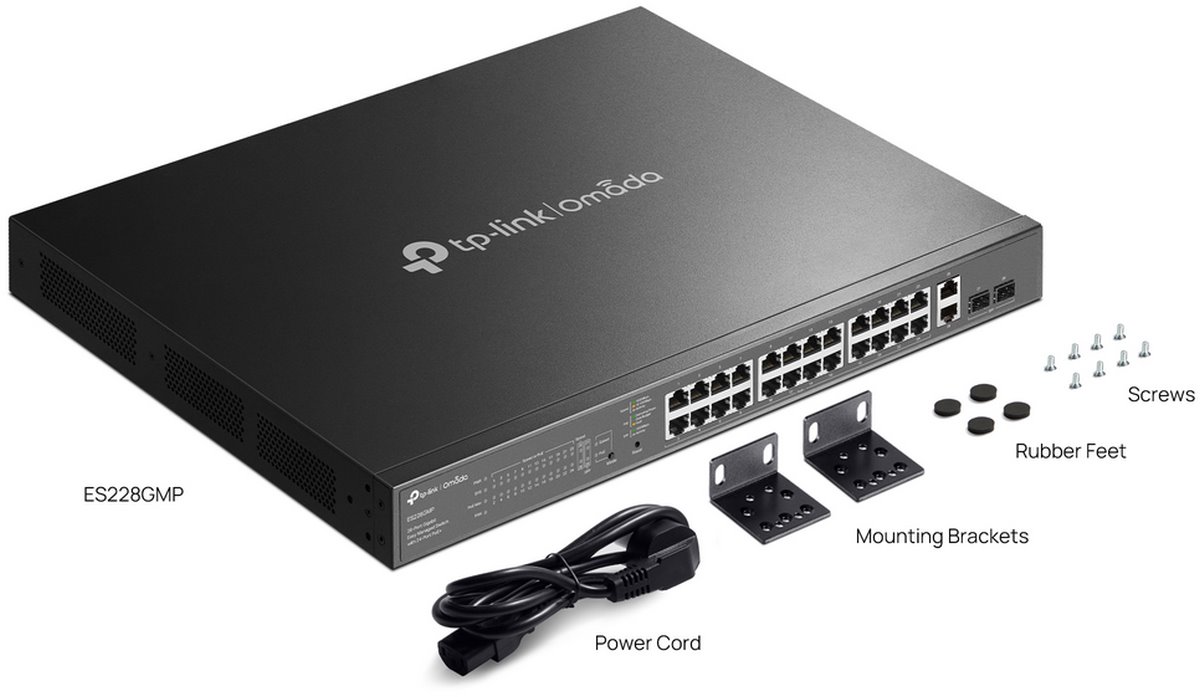

Package contents
Download
Technical parameters
LAN ports
Design
Desktop, Rackmount
Switchning capacity [Gbps]
56
MAC address table
8000
Jumbo frame [Bytes]
15000
Packet forwarding rate [Mpps]
41,7
Web management
Yes
Management
Web management, Omada controller
Features
VLAN, QoS, DHCP snooping, L2
Power type
Mains power (230V)
Fans
Yes
LAN ports
18
LAN speed
(26) 10/100/1000Mbps
Max. LAN ports speed
1G
PoE type
PoE-Out (only)
SFP cages
2
Optical interfaces
(2) 1000Mbps
PoE-Out standards
802.3af, 802.3at
PoE Out ports
24
PoE budget [W]
384
Long range PoE - up to 250m
Yes
Max. power consumption [W]
40
Chassis design
Metal
Power via connector/terminal
100-240 V AC~50/60 Hz
Buttons
Reset
Operating temperature [°C]
-5 up to 45
Width [mm]
440
Height [mm]
44
Depth [mm]
330
