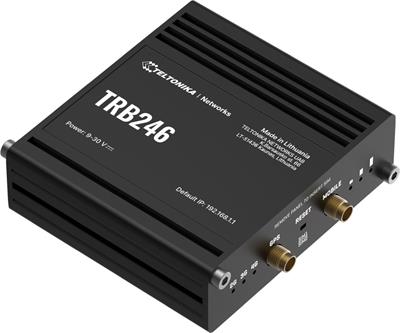

Teltonika TRB246 Industrial IoT Gateway
Your price incl. VAT (20.0%)
284.78 BGN / 145.61 EUR
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 12-11-2025
You have a choice of 2 variants
Teltonika TRB245 Industrial LTE Cat 4 Gateway - BazarB-TRB245000000
241.04 BGN / 123.24 EUR excl. VAT
Product description
The TRB246 is an industrial 4G LTE gateway equipped with I/Os, RS232, RS485, and Ethernet interfaces for IoT solutions requiring versatility and reliable M2M communication support. This gateway has dual SIM functionality and supports multiple protocols, like DNP3, DLMS, and Modbus, vital for ensuring smooth data transmission. Encased in aluminium housing, this industrial-grade IoT gateway can tolerate extreme environmental conditions in manufacturing, agriculture, or construction.
Key features
- CONNECTIVITY: 4G/LTE (Cat 4), 3G, 2G
- DUAL SIM: Auto-failover, backup WAN, and more switching scenarios

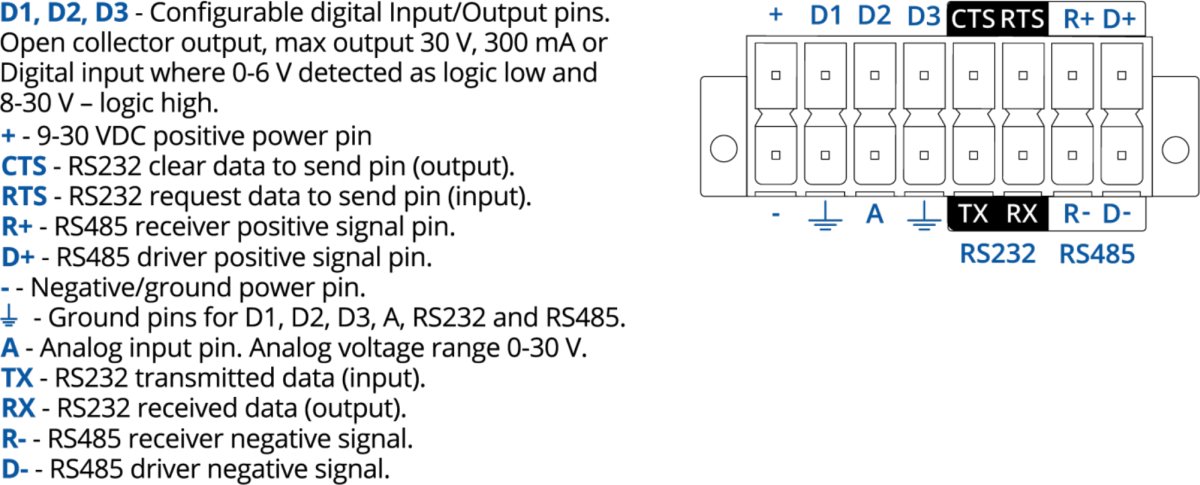

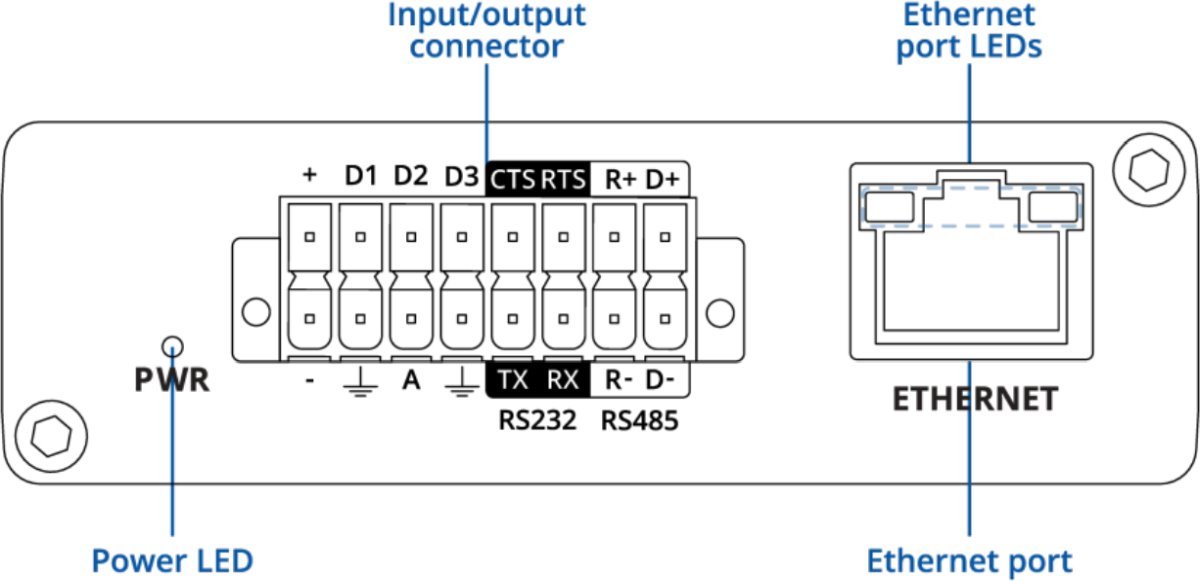

- INTERFACES: Ethernet, I/Os, and serial (RS232, RS485) interfaces with 16-pin terminal block
- PROTOCOLS: Supports DNP3, DLMS, Modbus, and other communication protocols
Package contents
- Device
- 16-pin terminal block
- 1 x hex key
- QSG (Quick Start Guide)
Download
Technical parameters
LAN ports
Protection class
IP30
3G/4G support
Yes
Supported VPN
PPTP, L2TP, IPSec, OpenVPN, WireGuard, ZeroTier, GRE, Tinc
Operating mode
Cellular router
Management
Web management, SSH, Teltonika RMS
Wireless frequency
LTE, 2G (GSM), 3G (GSM), 4G (GSM)
Type of antenna
Detachable
Detachable antennas
2
RF connectors
(2) SMA female
Purpose
Indoor
Power type
DC terminal
4G/LTE bands support
(1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (41) 2500 MHz, (28) 700 MHz
Operating system
RutOS (OpenWrt based Linux OS)
Fans
No
LAN ports
1
LAN speed
(1) 10/100Mbps
Max. power consumption [W]
3,5
Serial port
RS-232, RS-485
Power via connector/terminal
9 .. 30V DC
Buttons
Reset
Operating temperature [°C]
-40 up to 75
Weight [g]
165
Width [mm]
83
Height [mm]
25
Depth [mm]
74
CPU
Mediatek, 580 Mhz, MIPS 24KEc
CPU frequency [MHz]
580
SIM slot
Yes
SIM slots quantity
2
Default IP address
192.168.1.1
Internal storage [MB]
128
RAM [MB]
128
Default login and password
admin / (preset password, see label/engraving)
GPS modul
Yes
