Protection class

IP30

3G/4G support

Yes

Supported VPN

PPTP, L2TP, IPSec, OpenVPN, WireGuard, ZeroTier, GRE, Tinc

Operating mode

Cellular router

Management

Web management, SSH, Teltonika RMS

Wireless frequency

LTE, 2G (GSM), 3G (GSM), 4G (GSM)

Type of antenna

Detachable

Detachable antennas

2

RF connectors

(2) SMA female

Purpose

Indoor

Power type

DC terminal

4G/LTE bands support

(1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (41) 2500 MHz, (28) 700 MHz

Operating system

RutOS (OpenWrt based Linux OS)

Fans

No

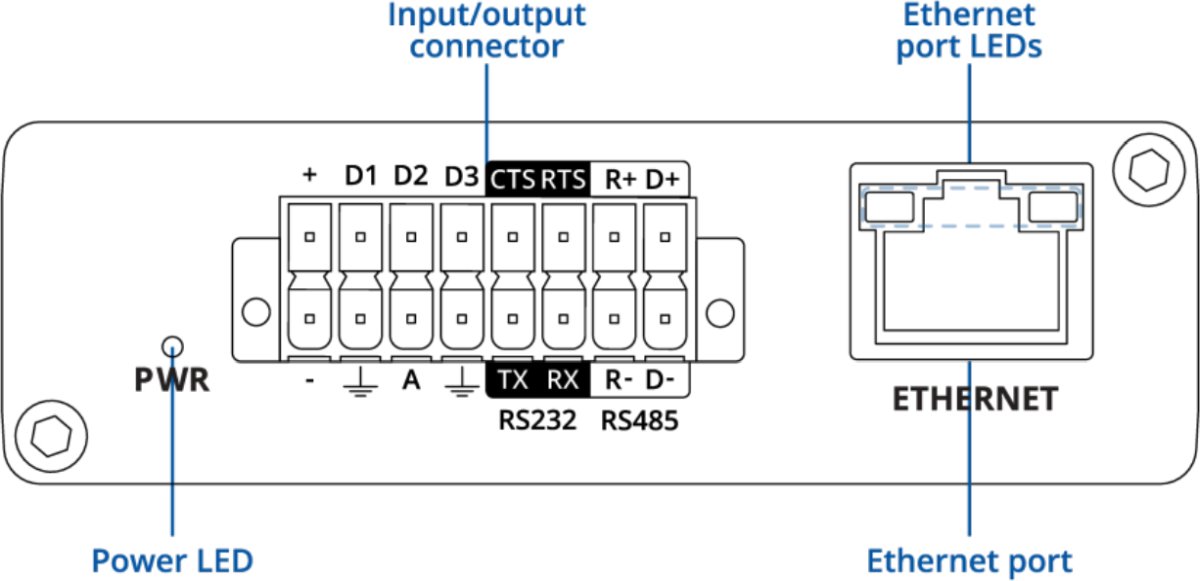

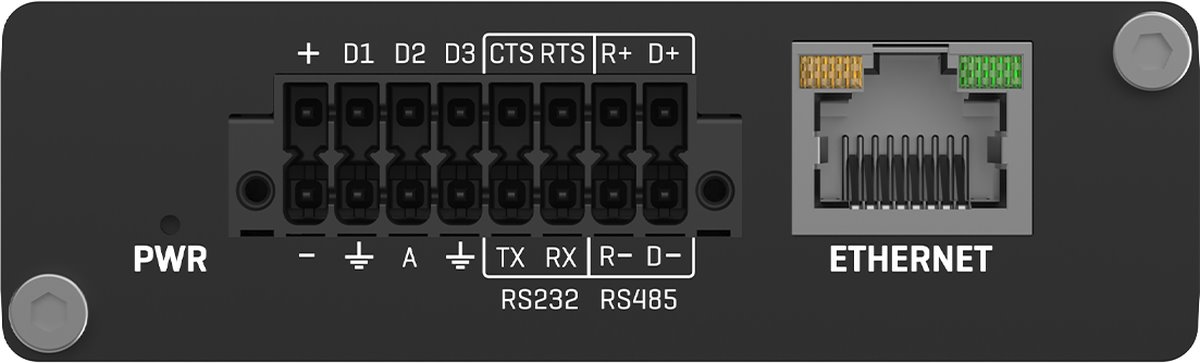

LAN ports

1

LAN speed

(1) 10/100Mbps

Max. power consumption [W]

3,5

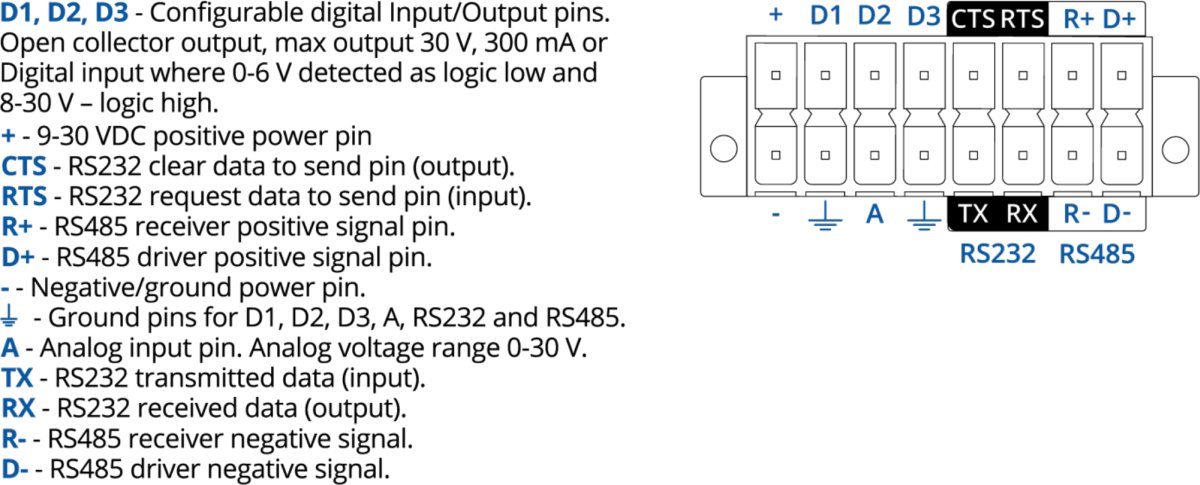

Serial port

RS-232, RS-485

Power via connector/terminal

9 .. 30V DC

Buttons

Reset

Operating temperature [°C]

-40 up to 75

Weight [g]

165

Width [mm]

83

Height [mm]

25

Depth [mm]

74

CPU

Mediatek, 580 Mhz, MIPS 24KEc

CPU frequency [MHz]

580

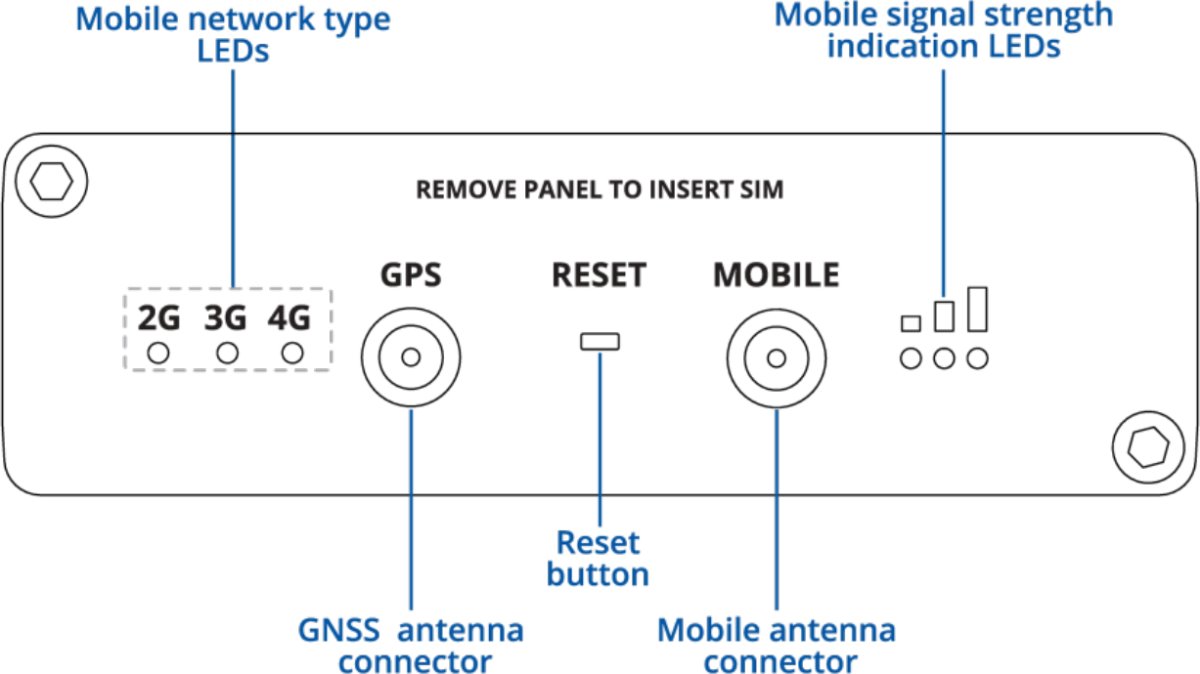

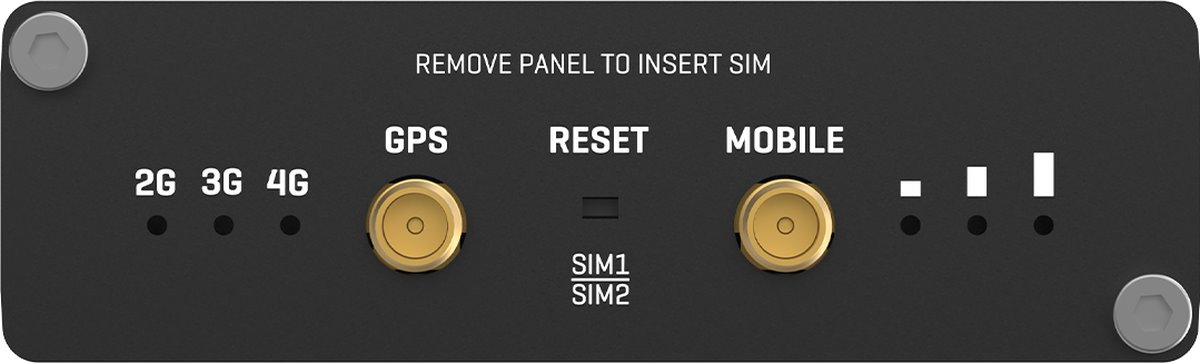

SIM slot

Yes

SIM slots quantity

2

Default IP address

192.168.1.1

Internal storage [MB]

128

RAM [MB]

128

Default login and password

admin / (preset password, see label/engraving)

GPS modul

Yes
