Wi-Tek WI-PS210S (V2) PoE switch, 8x PoE
Your price incl. VAT (20.0%)
30.34 EUR / 59.33 BGN
✅ In Stock 10+ Бр.
Planned Delivery Date by Courier to you 15-04-2026
You have a choice of 3 variants
Product description

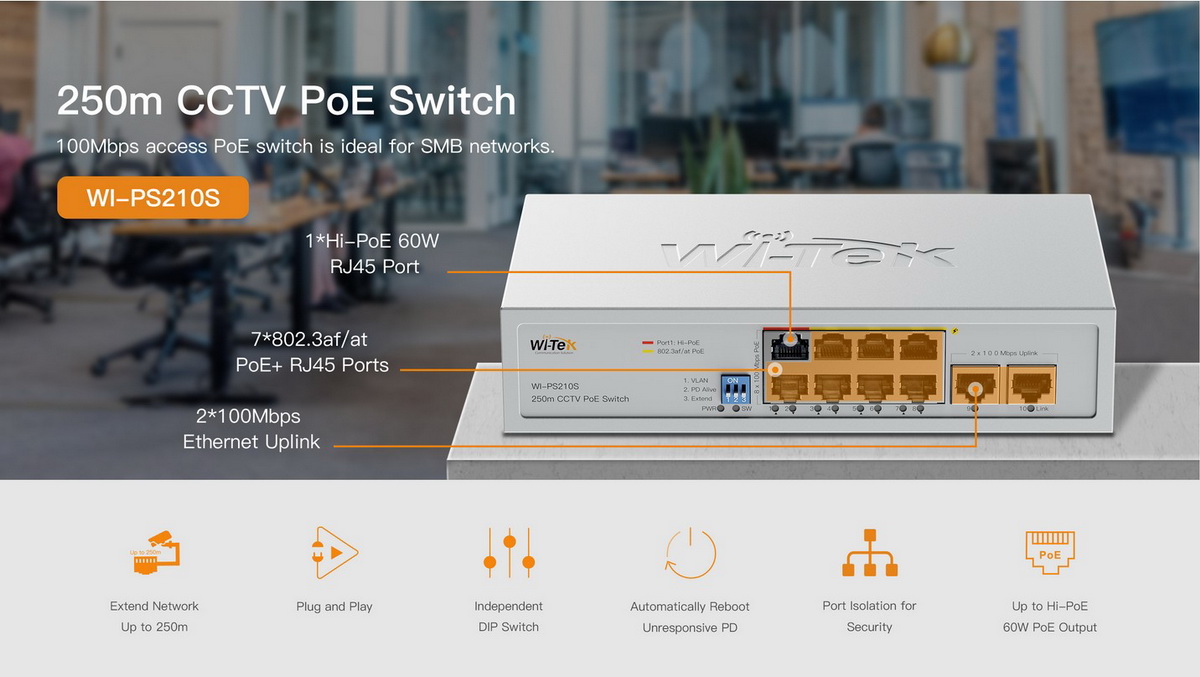

Wi-Tek WI-PS210S (V2) is an unmanaged PoE switch with (10) 100 Mbps ports in a combination of (2) UP-link ports and (8) PoE-OUT ports. The first PoE-OUT port supports Hi-PoE technology, allowing it to power devices with up to 60 W per port, while the remaining seven PoE-OUT ports provide 802.3af/at PoE up to 30 W per port. The total PoE budget is 95 W. The switch is ideal for applications where you need to connect and power devices such as IP cameras including PTZ, or IP phones.
DIP Switch for Mode Selection
The DIP switch on the front panel allows you to select modes to adapt the switch to the needs of your network:
- 1. VLAN: port isolation – PoE ports can send data only to the up-link port.
- 2. PD Alive: PoE watchdog capable of detecting and restarting unresponsive PoE-powered devices.
- 3. Extend: PoE transmission distance can reach up to 250 m when the link speed is reduced to 10 Mbps.
Package Contents
- Device
- Power cable
- Quick Installation Guide
Download
Technical parameters
LAN ports
Design
On the wall, Desktop
Switchning capacity [Gbps]
2
MAC address table
2000
Power type
Mains power (230V)
Fans
No
LAN speed
(10) 10/100Mbps
Max. LAN ports speed
100M
PoE type
PoE-Out (only)
RJ45 ports 100M
10
PoE-Out standards
802.3af, 802.3at
PoE Out ports
8
PoE budget [W]
95
Long range PoE - up to 250m
Yes
Max. power consumption [W]
5
Chassis design
Metal
Buttons
Auto Recovery, Extend mode, Isolation port
Operating temperature [°C]
0 up to 40
Weight [g]
620
Width [mm]
200
Height [mm]
44
Depth [mm]
118
